Rexroth 523-107-010-0 ISO Cylinder
New
In stock1 unitReady to ship
ISO Cylinder
The REXROTH 523-107-010-0 ISO Cylinder features a 40 mm bore diameter, 50 mm stroke length, and a maximum pressure of 10 bar. Designed for efficient operation in pneumatic systems, it includes a male piston rod end and a square shape.1/4104050523-107-010-0ActingAirbarboreCompressedconnectionCylinderdiameterDoubleEndGISOLengthmaleMaxmmPistonPneumaticPressureRexrothRODShapeSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

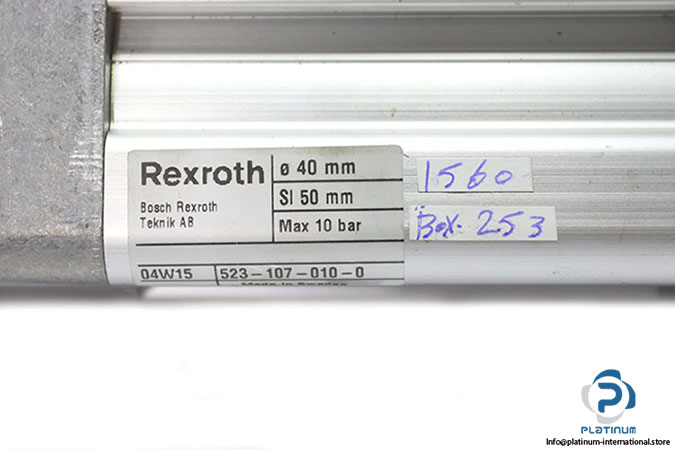

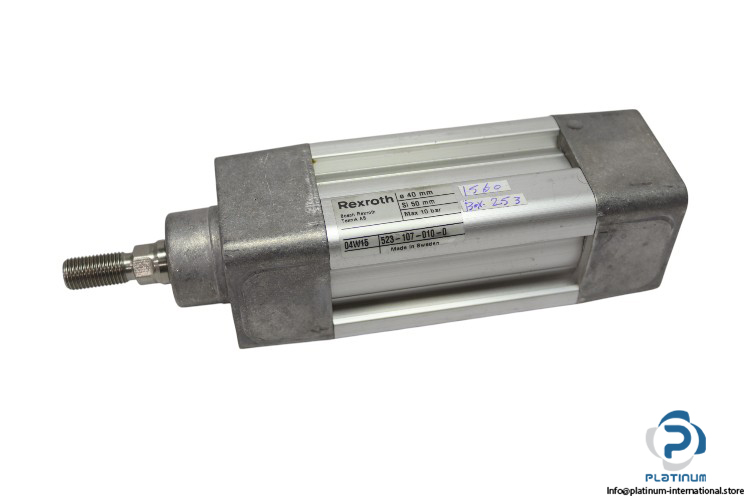

REXROTH 523 107 010 0 ISO Cylinder
The REXROTH 5231070100 ISO Cylinder is designed for high-performance pneumatic applications, featuring a robust construction with a bore diameter of 40 mm and a stroke length of 50 mm. This double-acting ISO cylinder ensures efficient operation in a variety of industrial settings.
Manufacturer: REXROTH
Type: ISO Cylinder
Model: 523-107-010-0
| Media | Compressed Air |
| Bore Diameter | 40 mm |
| Stroke Length | 50 mm |
| Bore x Stroke | 40 x 50 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 53 x 160 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max | 10 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
