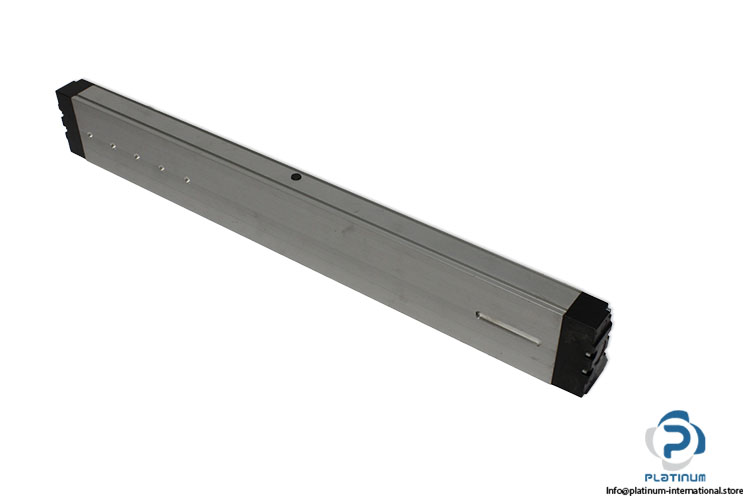

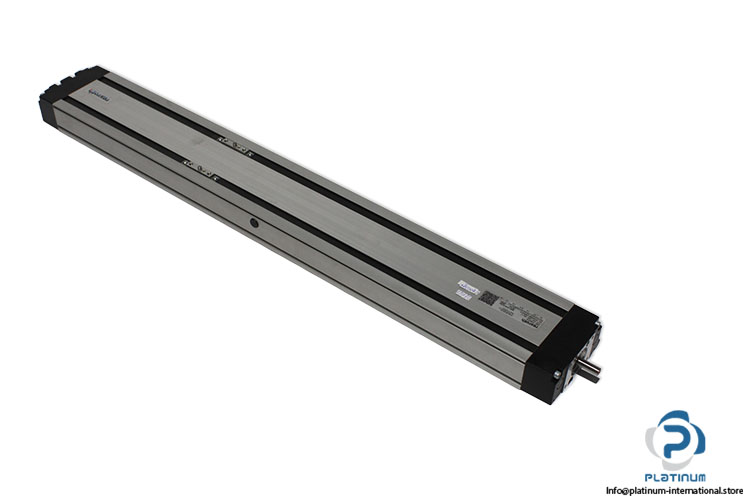

Rexroth CKK-090-NN-1 Compact Linear Module
In stock6 unitsReady to ship
Compact Linear Module Bosch Rexroth compact linear module with ball screw drive, engineered for precise linear motion, high load capacity, and accurate positioning in industrial automation systems.
ActuatorassemblyAutomationAxisBallBoschCompactComponentsControlDriveGuideIndustrialliLinearModuleMotionPrecisionRexrothscrewSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

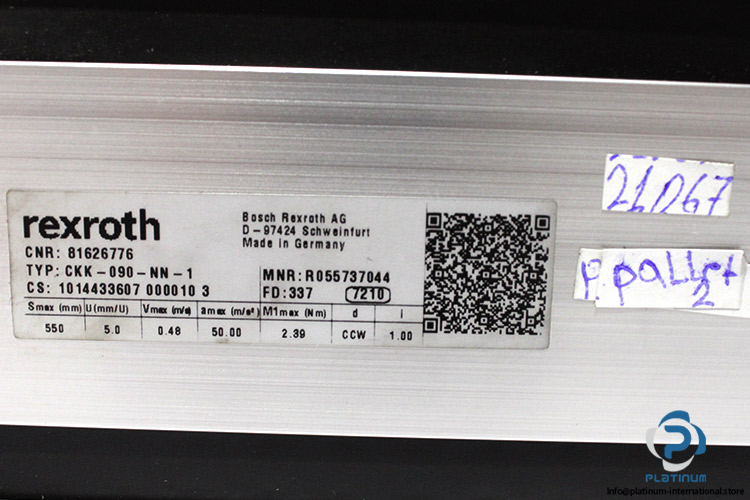

| MNR | R055737044 |
| Serial No. | 81626776 |
| CS No. | 1014433607 000010 3 |
| FD | 337 |
| Code | 7210 |
| Size | 90 |
| Linear axes variant | Ball screw assembly |
| Stroke | Smax. 550 mm |
| Lead of the screw | 5.0 mm/U (distance traveled per 1 revolution) |
| linear velocity | max. 0.48 m/s |
| Acceleration rate | max. 50 m/s² |
| linear Speed | max. 1.13 m/s |
| Maximum drive torque | max. 2.39 Nm |
| Drive direction | CCW (Counter Clockwise) |
| Gear ratio | 1 |
| Fz1 | max. 7505 N |
| Fz2 | max. 7505 N |
| Fy | max. 4050 N |
| Dynamic Load Capacity | guideway Cgw: 7505 N, fixed bearing Cfb: 6900 N |

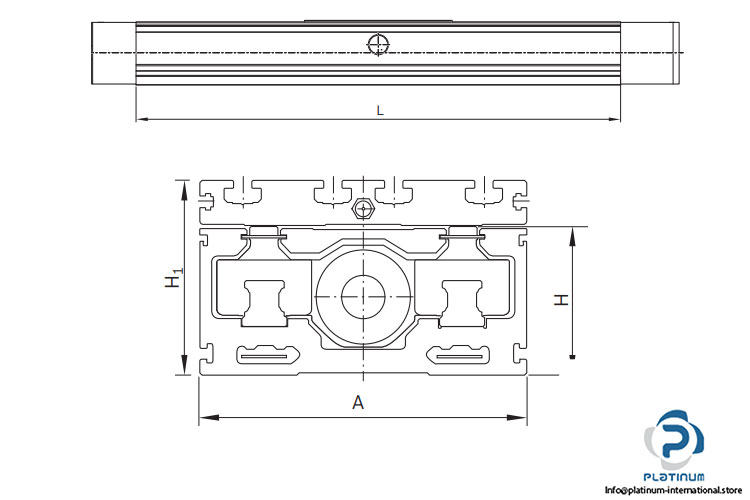

| Profiled rail system A | 90 mm |
| Profiled rail system H1 | 56 mm |
| Profiled rail system H2 | 39 mm |
| Profiled rail system H | 40 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097551 |
| Weight | 4,06 |
