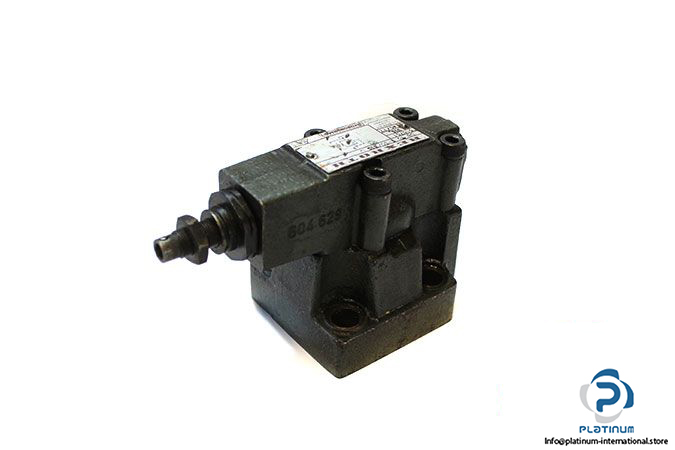

Rexroth DB 10 1-30/315 U Pilot Operated Pressure Relief Valve
Used
Available on request
PILOT OPERATED PRESSURE RELIEF VALVE
Rexroth Hydronorma NG10 pilot operated pressure relief valve, 315 bar setting, sub-plate connection, suitable for high-performance hydraulic systems using oil.ComponentconnectionControlHighHydraulichydronormaIndustrialng10oiloperatedPilotPressureReliefRexrothsub-plateValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
REXROTH HYDRONORMA DB10130315U PILOT OPERATED PRESSURE RELIEF VALVE
The Rexroth Hydronorma DB 10 1-30/315 U is a high-performance pilot operated pressure relief valve designed for hydraulic systems. Built for precise pressure control and durability, it is suitable for demanding industrial applications using oil as the operating fluid.

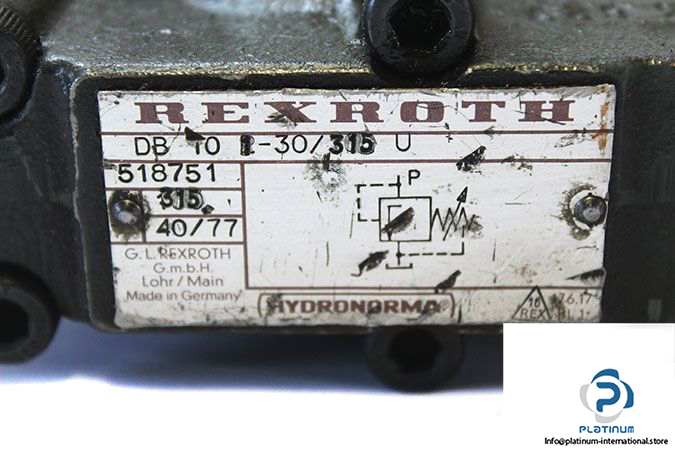

Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Pressure Relief Valve
Model: DB 10 1-30/315 U
Part No.: 518751
| Fluid | Oil |
| Size | NG10 |
| Adjustment Element | Sleeve with hexagon and protective cap |
| Pressure Setting | 315 bar |
| Max Operating Pressure at Ports P, X | 350 bar |
| Max Operating Pressure at Port T | 315 bar |
| Max Backpressure at Port Y | 315 bar |
| Max Flow Rate | 250 l/min |
| Ambient Temperature Range | -30 / 80 °C |
| Viscosity Range | 10 / 800 mm²/s |

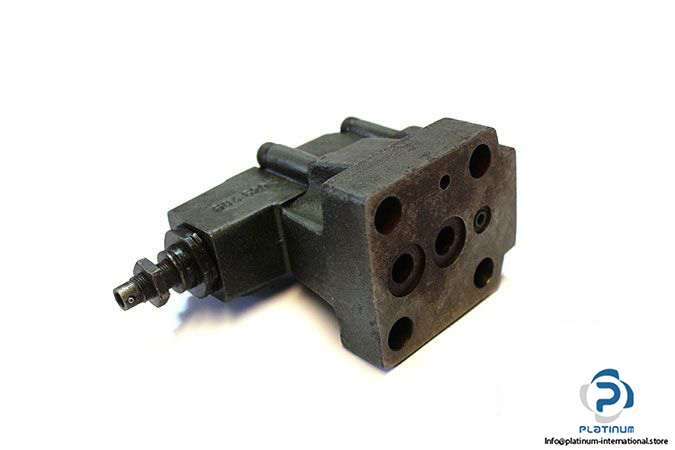

| Connection | Sub-plate |
