Rexroth DB 10-2-52/200B Pilot Operated Pressure Relief Valve

Name: REXROTH DB 10-2-52/200B PILOT OPERATED PRESSURE RELIEF VALVE
Brand: REXROTH
SKU: 984085
Availability: LimitedAvailability

rexroth-db-10-2-52_200b-pressure-relief-valve-pilot-operated

rexroth-db-10-2-52_200b-pressure-relief-valve-pilot-operated-2

rexroth-db-10-2-52_200b-pressure-relief-valve-pilot-operated-1

Used

In stock1 unitReady to ship

PILOT OPERATED PRESSURE RELIEF VALVE

Mannesmann Rexroth DB 10-2-52/200B valve with NG10 size, 200 bar setting, and 250 l/min flow capacity, designed for precise hydraulic system pressure control.

Manufacturer

REXROTH

SKU

984085

Category

Pressure Control Valves

Condition

Used

200 bar Control flow High Hydraulic Mannesmann mounted ng10 oil operated Pilot Plate Pressure Relief Rexroth sub Valve

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

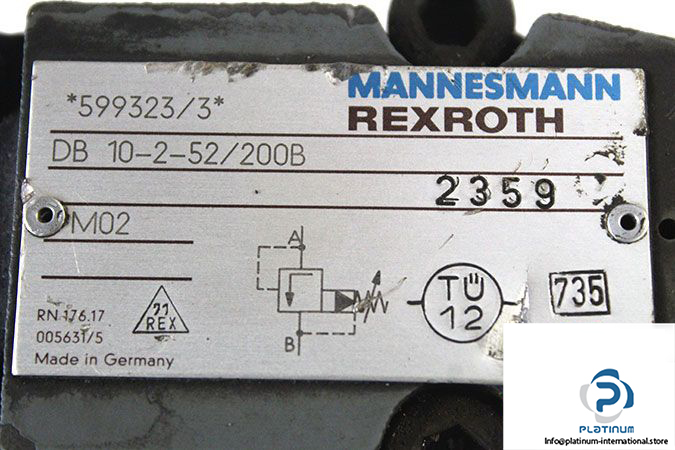

MANNESMANN REXROTH DB10252200B PILOT OPERATED PRESSURE RELIEF VALVE

The Mannesmann Rexroth DB 10-2-52/200B is a high-performance pilot operated pressure relief valve engineered for precise hydraulic system pressure control. Built for durability and consistent performance, it is ideal for demanding industrial applications using oil as the operating fluid.

Manufacturer: Mannesmann Rexroth

Type: Pilot Operated Pressure Relief Valve

Model: DB 10-2-52/200B

Part No.: 599323/3

Fluid	Oil
Size	NG10
Adjustment Element	Sleeve with hexagon and protective cap
Pressure Setting	200 bar
Maximum Operating Pressure at Ports P, X	350 bar
Maximum Operating Pressure at Port T	315 bar
Maximum Backpressure at Port Y	315 bar
Maximum Flow Rate	250 l/min
Ambient Temperature Range	-30 / 80 °C
Viscosity Range	10 / 800 mm²/s
Connection	Sub-plate
