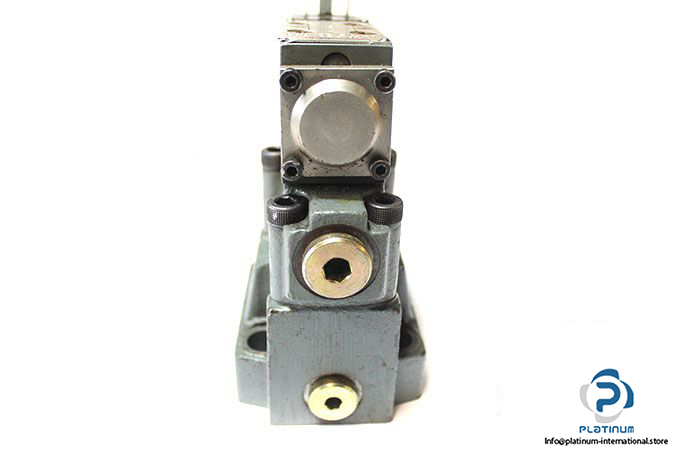

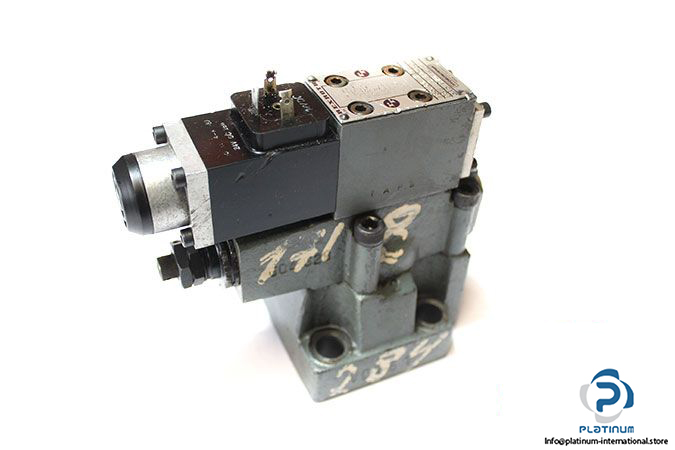

Rexroth DBW 10 B2-30 315 G24 NZ4 Pressure Relief Valve Pilot Operated

Manufacturer: REXROTH HYDRONORMA

Type: Pressure Relief Valve Pilot Operated

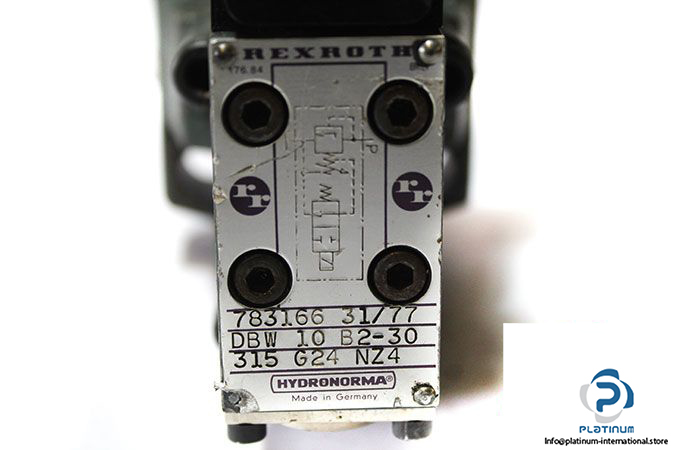

Model: DBW 10 B2-30 315 G24 NZ4



Size: 10

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Pressure Setting: 315 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum Operating Pressure at Ports P, X :350 bar

Maximum Operating Pressure at Port T :315 bar

Maximum Backpressure at Ports Y, T : 210 with DC solenoid,

160 with AC solenoid

Maximum Flow Rate: 250 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

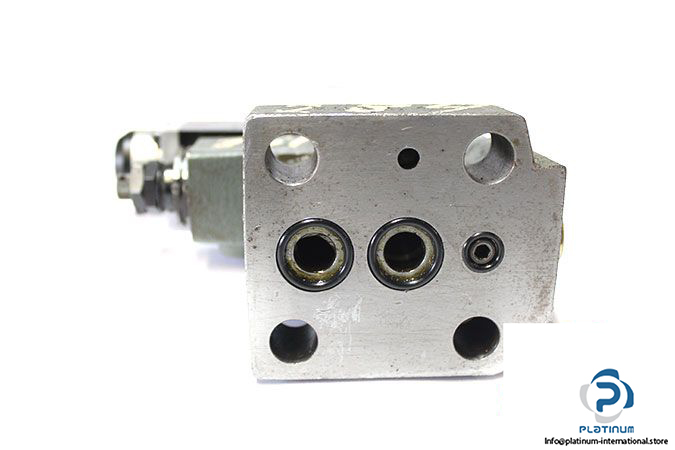

Connection: Sup-plate

Weight: 4.12 kg
