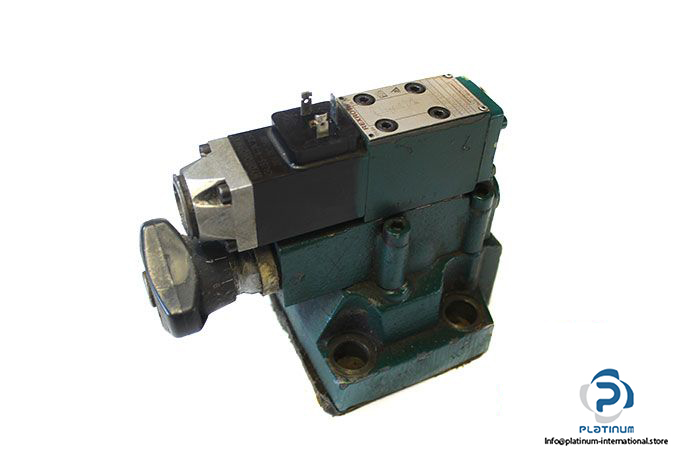

REXROTH HYDRONORMA DBW20B331100UG24NZ5L PRESSURE RELIEF VALVE
The Rexroth Hydronorma DBW 20 B3-31/100UG24NZ5L is a pilot-operated pressure relief valve engineered for precise hydraulic pressure control in industrial oil systems. Designed for sub-plate mounting, it combines robust performance with a compact footprint and is equipped with a high-efficiency solenoid coil.
Manufacturer: Rexroth Hydronorma
Type: Pilot Operated Pressure Relief Valve

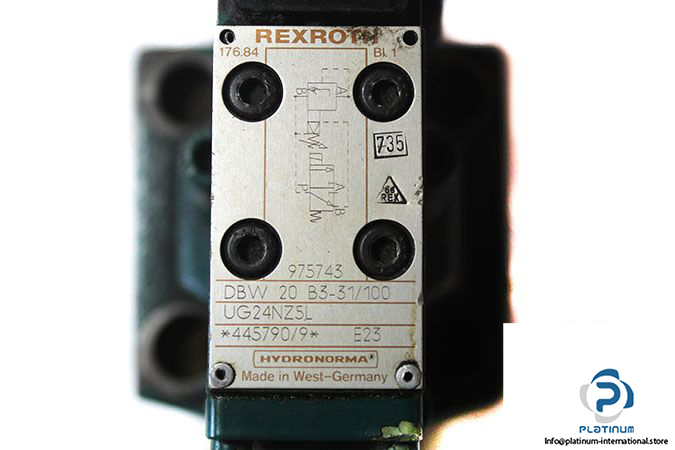

Model: DBW 20 B3-31/100UG24NZ5L
Part No.: 445790/9
Attached Component
| Fluid | Oil |
| Size | NG20 |
| Adjustment Element | Sleeve with Hexagon and Protective Cap |
| Pressure Setting | 100 bar |
| Max Operating Pressure at Port P | 350 bar |
| Max Operating Pressure at Port T | 315 bar |
| Max Backpressure at Port T | 210 bar (DC) / 160 bar (AC) |
| Max Flow Rate | 500 l/min |
| Viscosity Range | 10 / 800 mm²/s |
| Material | Aluminum |

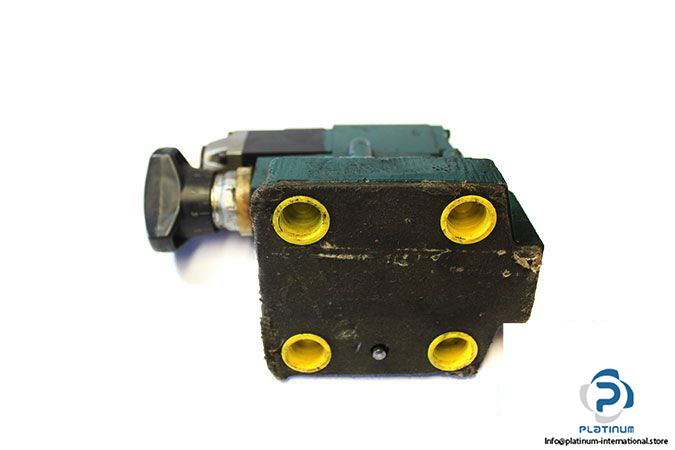

| Hydraulic Connection | Sub-plate |
| Ambient Temperature | -30 to +50 °C |

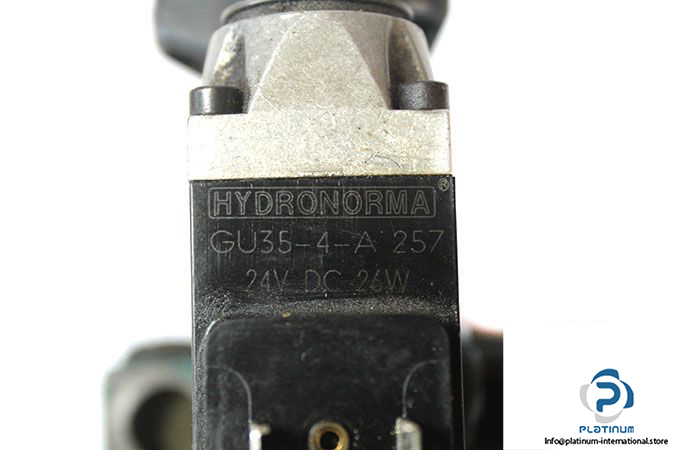

| Supply Voltage | 24 V DC |
| Power Consumption | 26 W |
