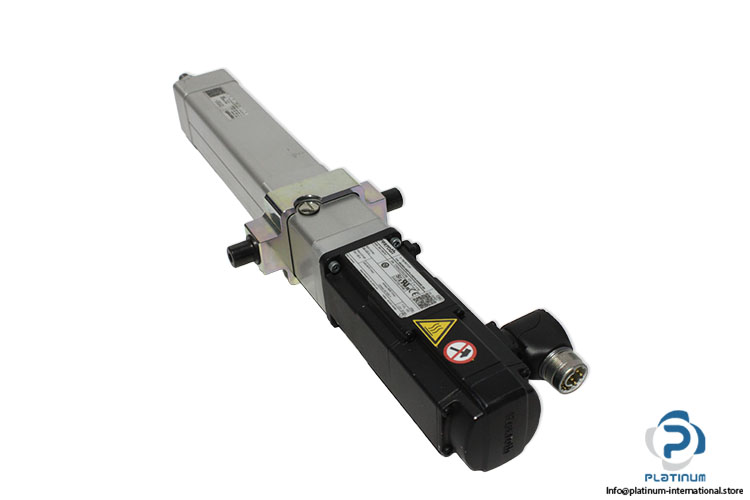

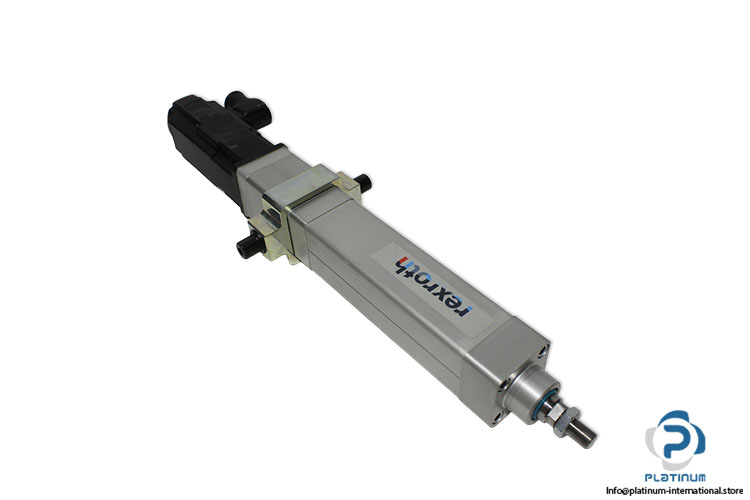

Rexroth MS2N03-B0BYN-CMSH0-NNNNE-NN Servomotor With Linear Actuator

In stock5 unitsReady to ship

Bosch Rexroth Servomotor With Linear Actuator High-performance Bosch Rexroth MS2N03-B0BYN-CMSH0-NNNNE-NN servomotor integrated with EMC-040-NN-2 electromechanical cylinder, offering 600 VAC operation, 3.75 Nm torque, 9000 rpm speed, 20-bit multiturn encoder feedback, IP64/IP65 protection, stainless steel actuator construction, and precision linear motion up to 100 mm stroke.

Manufacturer
REXROTH
SKU
1096900
Category
Servo Motors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

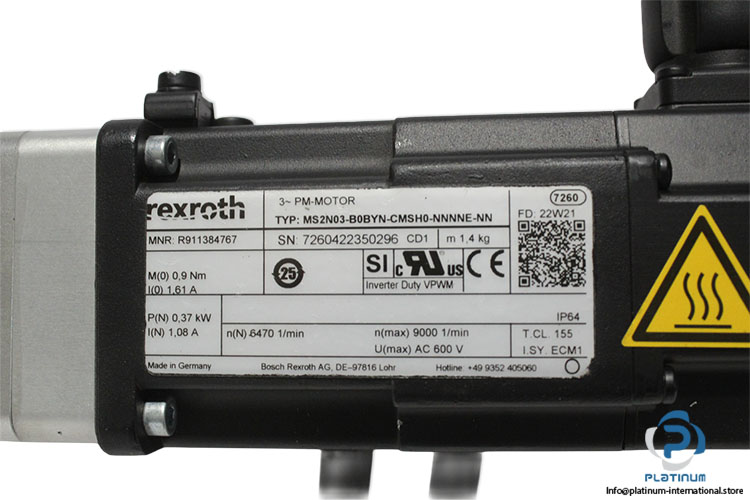

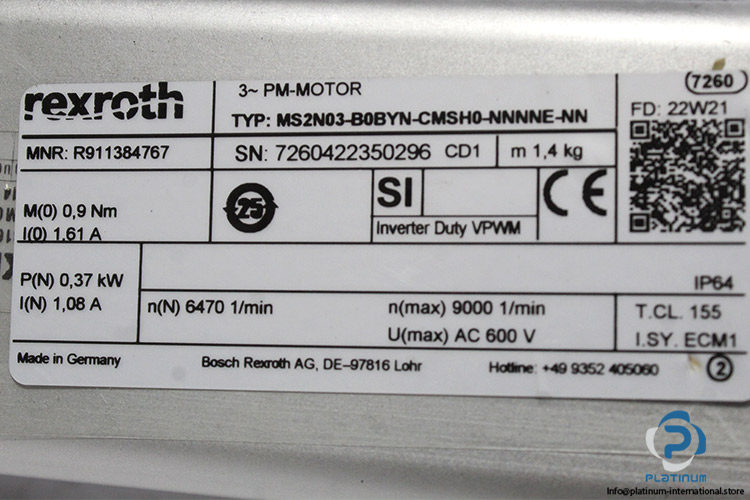

MNRR911384767
SN7260422350296
FD22W21
Rated voltage600 VAC
Maximum torque [Nm]3.75
Standstill torque (int./ext. cooling) 100k [Nm]0.9
Standstill Current1.61 A
Rated power0.37 Kw
Rated Current1.08 A
Rated speed [rpm]6470
Maximum speed [rpm]9000.0
Flange size [mm]58
Cooling typeSelf-cooling
Motor typewithout holding brake
ShaftSmooth, without shaft seal
Shaft length [mm]20
Shaft diameter [mm]9
Spigot [mm]40
Bolt circle [mm]63
Mounting hole (shaft)M4
International protection codeIP64
Rotor inertiaLow inertia
Rotor inertia (without brake) value [kg/m²]0.000023
Rotor inertia (with brake) value [kg/m²]0
Encoder resolutionADVANCED - digital 20 bit, ACURO@link, SIL2, PL d
Encoder designMultiturn ? 4,096 revolutions absolute

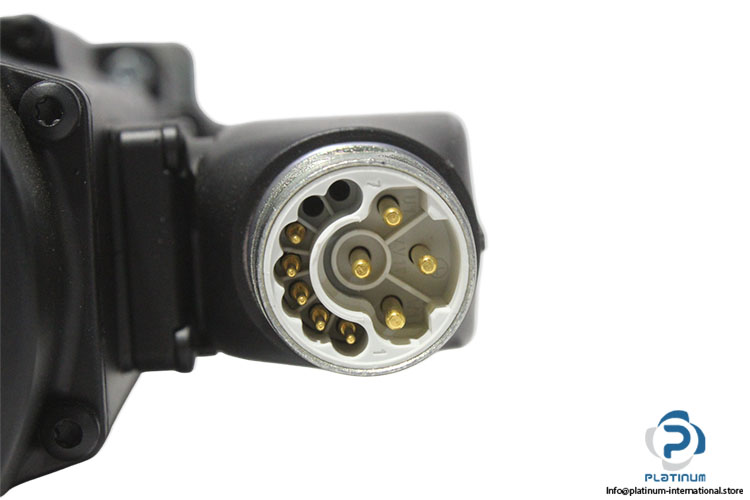

electrical connectionSingle cable connection M23, rotatable, right-angled connector
Standstill torque (int. cooling) 60k [Nm]0.73

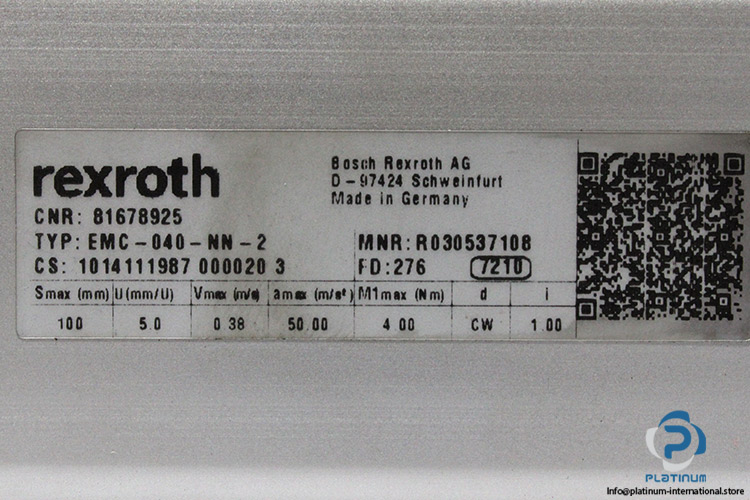

Attached withREXROTH EMC-040-NN-2 ELECTROMECHANICAL CYLINDER
MNR, ELECTROMECHANICAL CYLINDERR030537108
FD, ELECTROMECHANICAL CYLINDER276
CS, ELECTROMECHANICAL CYLINDER1014111987 000020 3
CNR, ELECTROMECHANICAL CYLINDER81678925
Measurement range (kN)5
Measurement inaccuracy (kN)± 0.025
MaterialStainless steel
Protection class, ELECTROMECHANICAL CYLINDERIP65
Hardness (load range)38 HRC
Operating temperature, ELECTROMECHANICAL CYLINDER-20 ... +60 °C
Gear Ratio (i)1.00
Direction of Rotation (d)CW (Clockwise)
Maximum Speed (V msx)0.38 m/s
Lead (U)5.0 mm/U (5.0 mm per revolution)
Maximum Acceleration A max (m/s)50.00
Maximum Stroke S max (mm)100
Maximum Torque M1 max (Nm)4
Stock keyJO-004
ConditionNew
SKU1096900
Weight4,35
