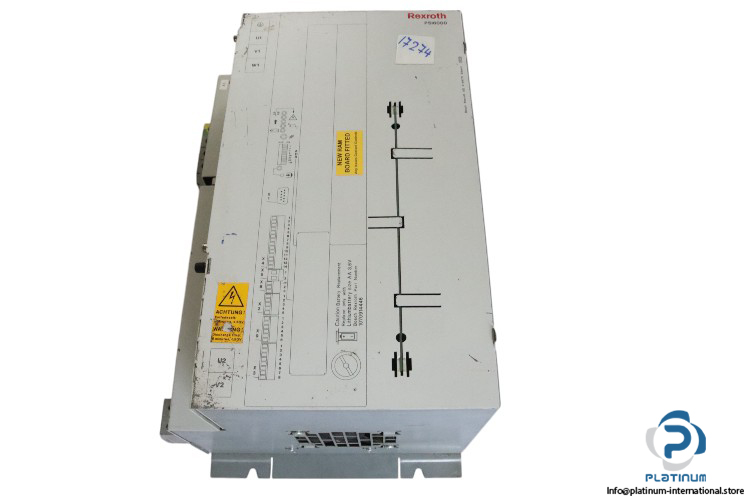

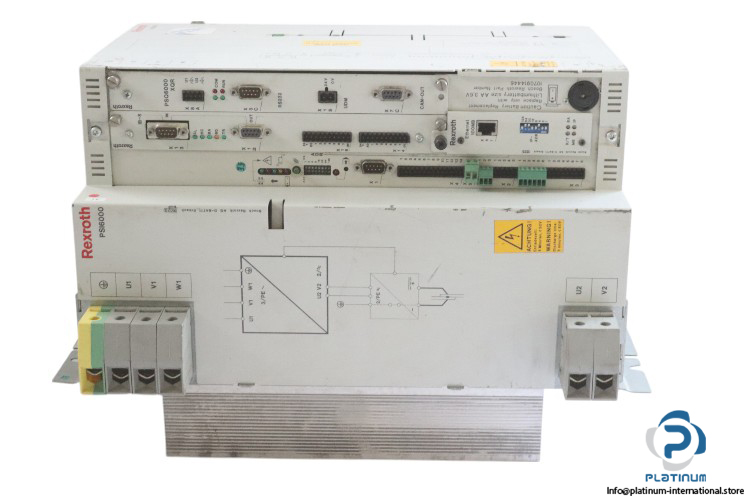

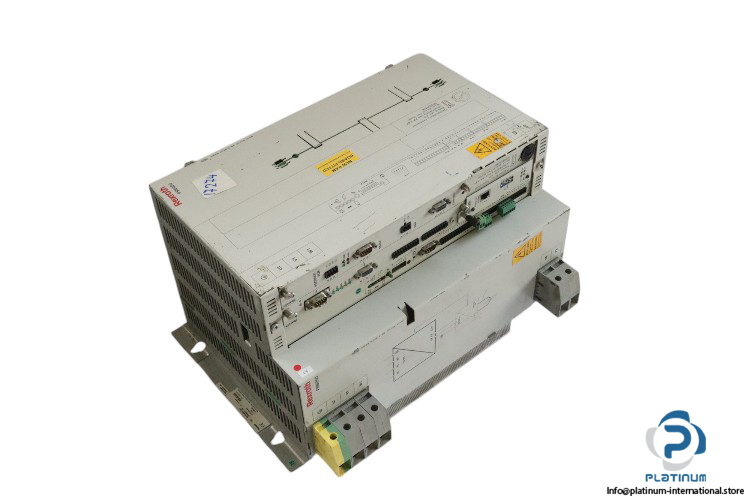

Rexroth PSI 6300.373L1 Medium Frequency Inverter
666,66$
Rexroth Medium Frequency Inverter PSI6300.373L1 “ Reliable industrial inverter with 800 A max output, 400-480 V AC input, and IP 54 protection. Designed for precision and efficiency in demanding applications.
Rexroth Medium Frequency Inverter PSI6300.373L1
Manufacturer: Rexroth
Type: Medium Frequency Inverter
Model: PSI6300.373L1

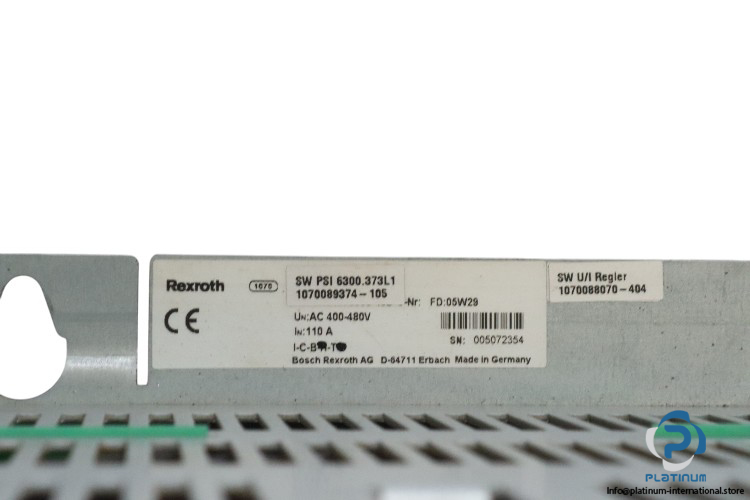

Part No.: 1070089374-105
Series: PSI 6000
The Rexroth Medium Frequency Inverter PSI6300.373L1 is a high-performance industrial inverter designed for medium-frequency applications. Engineered to provide exceptional efficiency and reliability, this inverter is suitable for demanding industrial processes requiring precise control and robust operation.
Technical Specifications:
- Supply Voltage: 24 V DC
- Input Voltage: 400 to 480 V AC
- Nominal System Current: 110 A
- Max. Output Current: 800 A
- Clock Frequency: 1 kHz
- Quality Module: Slot prepared for retrofitting
- I/O Interface: Slot for parallel
- Weld Timer: Integrated
- Electrical Connection: Via box terminal; max. 50 mm2
- Inverter Ambient Temperature: Max. 55° C
- Degree of Protection: IP 20, IP 54
- Dimensions: 463 x 314 x 275 mm
With integrated weld timer, retrofit options, and a robust design, this inverter is ideal for applications where precision and efficiency are critical. Its high output capacity and flexibility make it a versatile solution for a wide range of industrial operations.
