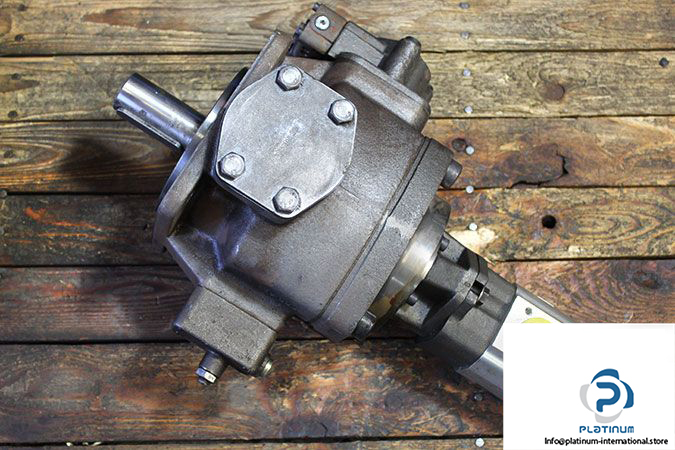

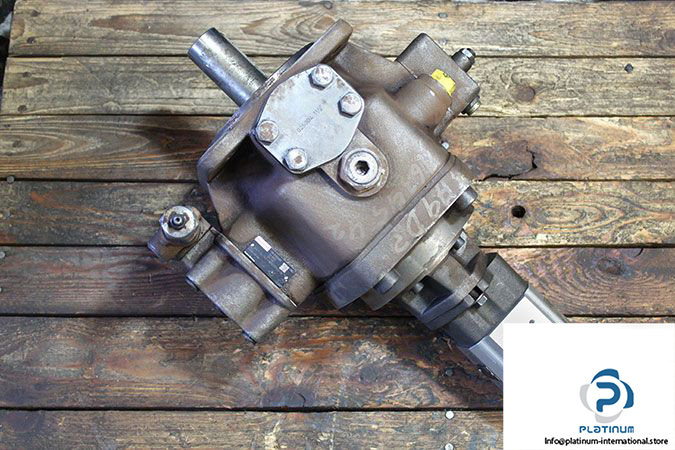

Rexroth PV7-1A/100-118RE07MC0-16 Variable Vane Pump

Manufacturer: Rexroth

Type: Variable vane pump

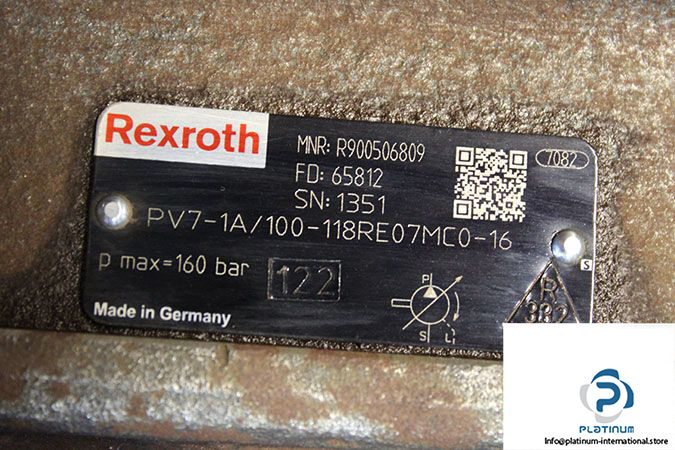

Model: PV7-1A/100-118RE07MC0-16

MNR: R900506809

Size: 118

Displacement: 118 cm³

Direction of Rotation: Clockwise

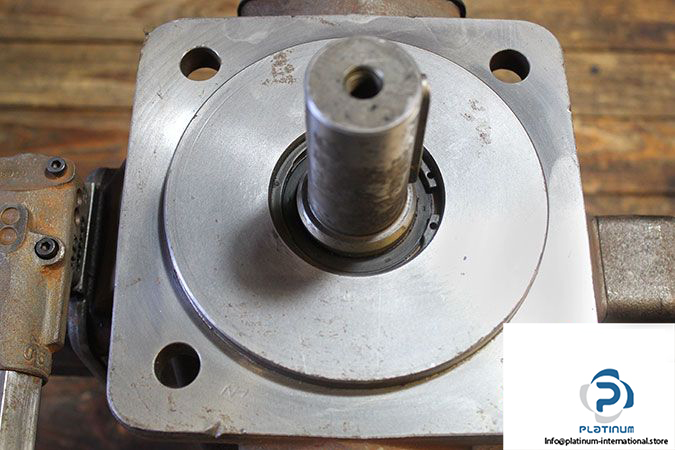

Shaft Diameter: 40 mm

Input power: 51.5 KW

Operating pressure: 160 bar

Speed Range: 900 …. 1800 min^–1

Flow Rate at 1450 rpm: 171 l/min

Torque: 680 N.m

Viscosity Range: 16 ….  1600 mm²/s

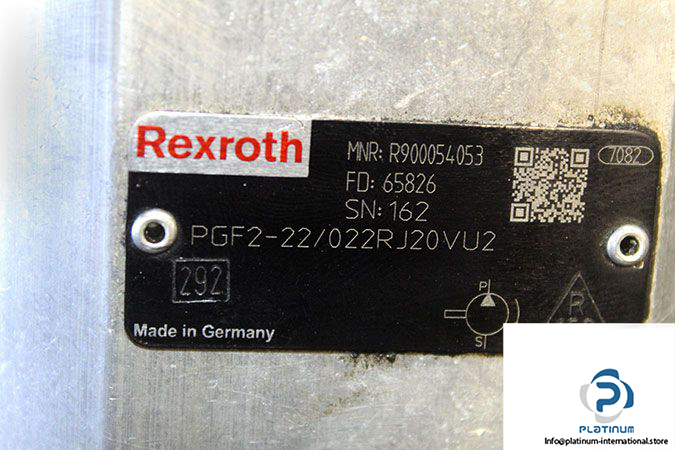

Attachment: REXROTH R900054053 INTERNAL GEAR PUMP

Manufacturer: Rexroth

Type: Internal Gear Pump

Model: PGF2-22/022RJ20VU2

MNR: R900054053



size: 22

Displacement: 22 cm³

Direction of Rotation: Clockwise

Max Continuous pressure: 180 bar

Max Speed: 3000 min^–1

Flow Rate at 1450 rpm: 31.9 l/min

Weight: 63.5 Kg
