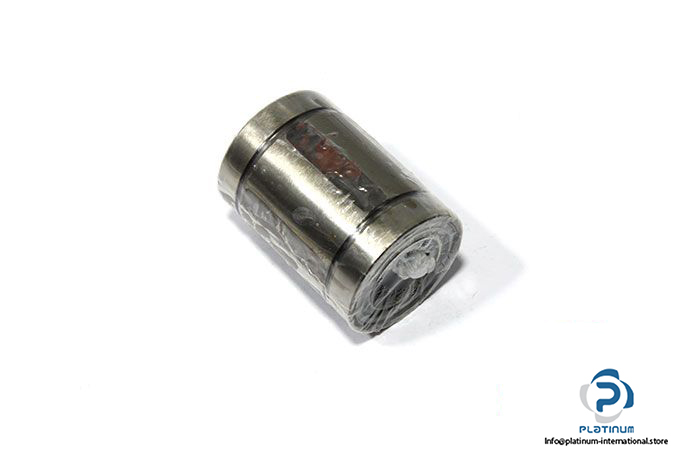

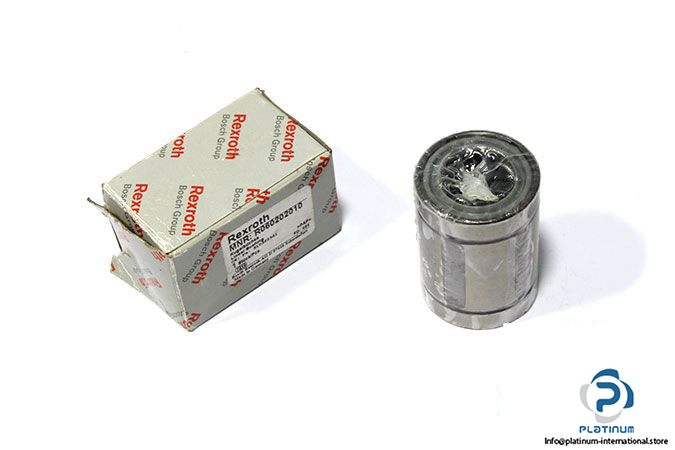

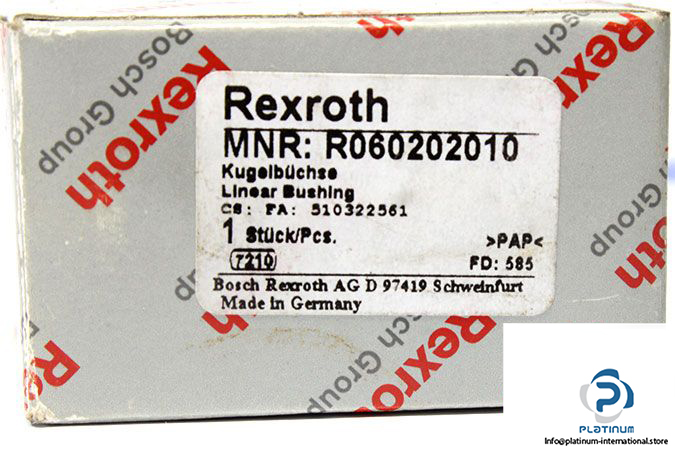

Rexroth R060202010 Standard Linear Bushing

Manufacturer: BOSCH REXROTH

Type: Standard Linear Bushing KBM-20-DD

MNR: R060202010

Shaft diameter d₀: 20 mm

Form: Closed

Rows of Balls: 5

Friction Force F_R: 4 N

Breakaway Force: 12 N

Maximum Acceleration Travel a_max: 100 m/s²

Max. Permissible Speed v_max: 2.5 m/s

Dynamic Load rating:

C_min: 1170 N

C_max: 1390 N

Static Load rating:

C_0min: 860 N

C_0max: 1250 N

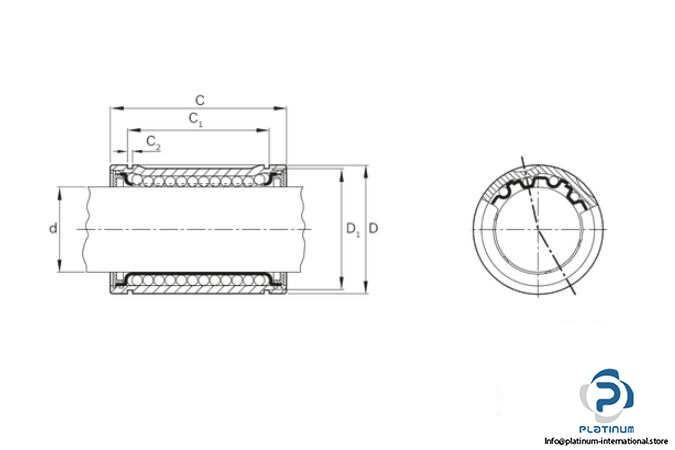

Dimensions:

D: 32 mm

C: 45 mm

Seals: With two integrated wiper seals

Permissible Ambient Temperature: -10 … +80 °C

Weight: 0.1 kg
