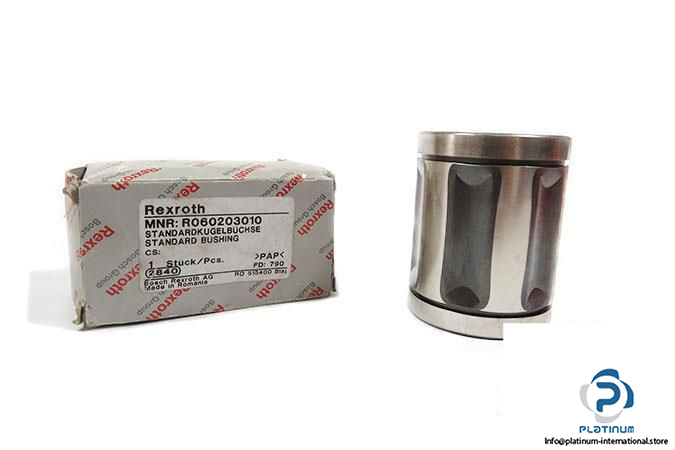

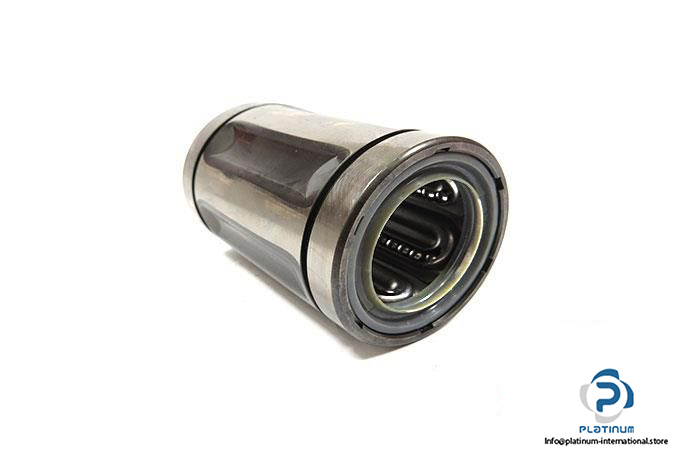

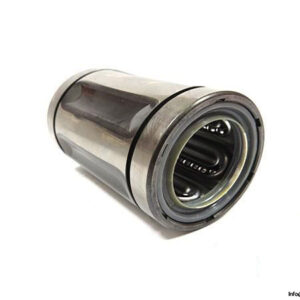

Rexroth R060203010 Standard Linear Bushing
Manufacturer: REXROTH
Type: Standard Linear Bushing
MNR: R0602 030 10
Dimensions:
Shaft diameter d0: 30 mm
Format of linear bushings: Closed
Rows of Balls: 6
Max. acceleration amax: 100 m/s²
Maximum permissible linear speed vmax: 2.5 m/s
Breakaway force: 18 N
Friction force: 6 N
Dynamic Load rating:
Cmin: 2820 N
Cmax: 2980 N
Static Load rating:
C0min: 2230 N
C0max: 2860 N
Dimensions:
D: 47 mm
C: 68 mm
C1: 51.7 mm
C2: 1.85 mm
D1: 44.5 mm
Seals: With two wiper seals
Permissible Ambient Temperature: -10 … +80 °C
