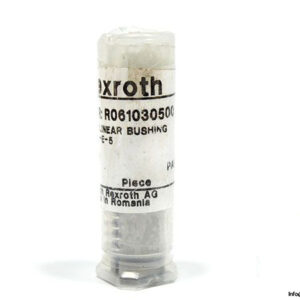

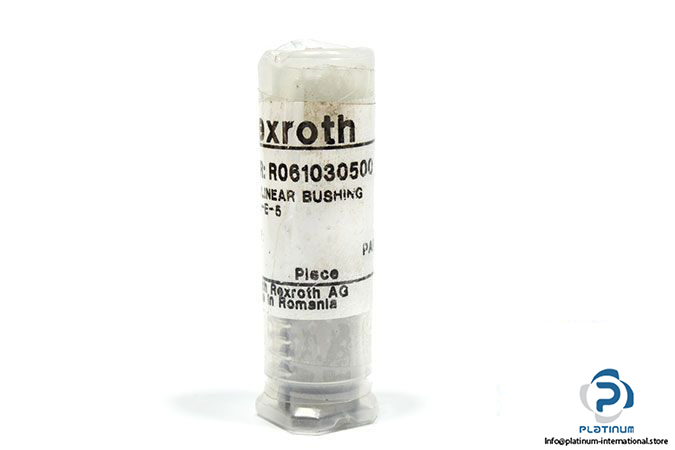

Rexroth R061030500 Standard Linear Bushing

Manufacturer: BOSCH REXROTH

Type: STANDARD LINEAR BUSHING KBM-E

MNR: R061030500

Shaft Diameter d₀: 5 mm

Design Type: Adjustable

Rows of balls: 4

Friction force F_R: 0.4 N

Breakaway Force: 0.8 N

Maximum Acceleration Travel a_max: 100 m/s²

Max. Permissible Speed v_max: 2.5 m/s

Dynamic Load Capacity C_max: 210 N

Static Load Capacity C_0max: 200 N

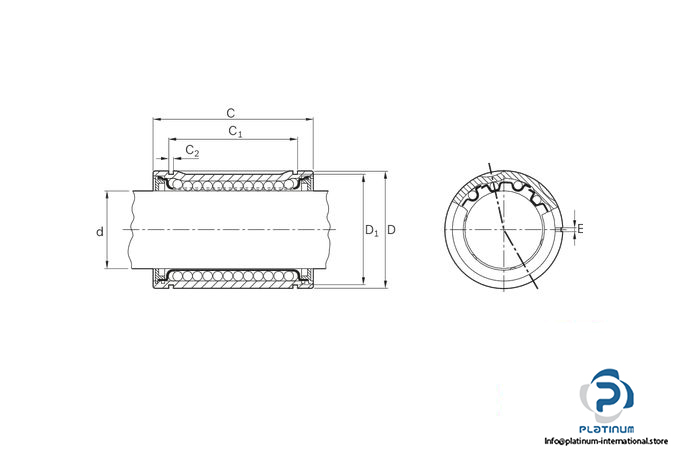

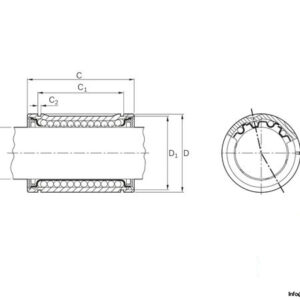

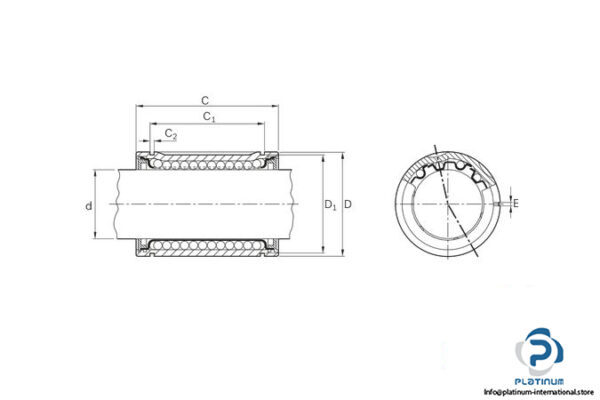

Dimensions:

D: 12 mm

C: 22 mm

Permissible Ambient Temperature: -10 … +80 °C

Weight: 0.02 kg
