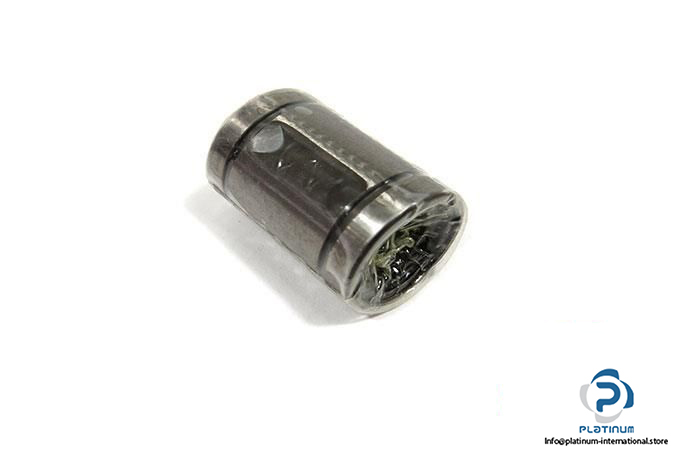

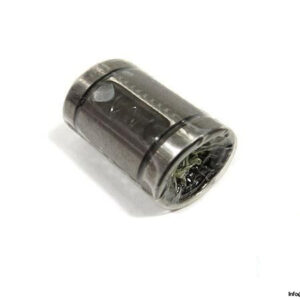

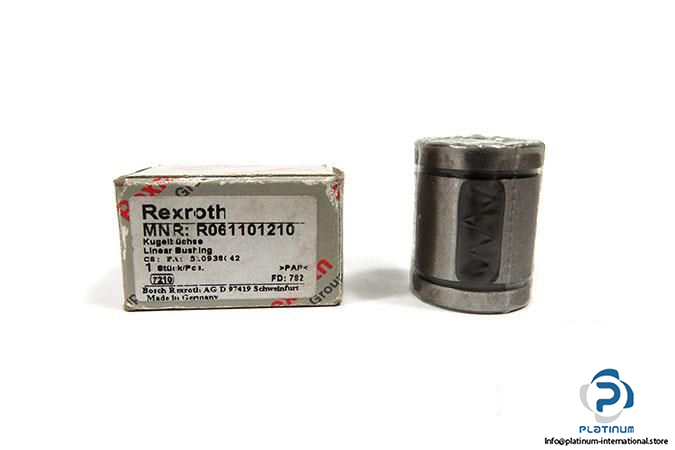

Rexroth R061101210 Standard Linear Bushing
Manufacturer: REXROTH
Type: Standard Linear Bushing
MNR: R0611 012 10
Dimensions:
Shaft diameter d0: 12 mm
Rows of Balls: 4
Friction Force: 2 N
Breakaway Force: 6 N
Max. Permissible Speed: 2.5 m/s
Dynamic Load rating:
Cmin: 420 N
Cmax: 480 N
Static Load rating:
C0min: 280 N
C0max: 400 N
Dimensions:
D: 22 mm
C: 32 mm
D1: 20.5 mm
C1: 22.6 mm
E: 1.5 mm
Seals: With One wiper seals
Ambient Temperature: -10 °C … +80 °C
