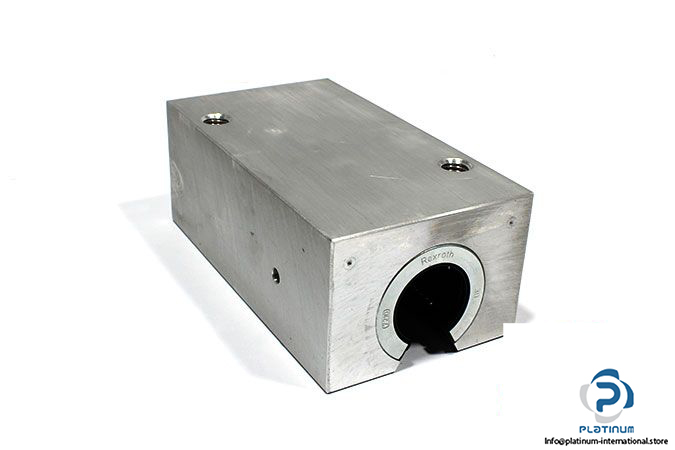

Rexroth R108763020 Linear SET With Super Linear Bushing A
Manufacturer: BOSCH REXROTH
Type: Linear Sets with Super Linear Bushings A, Tandem, Open Type

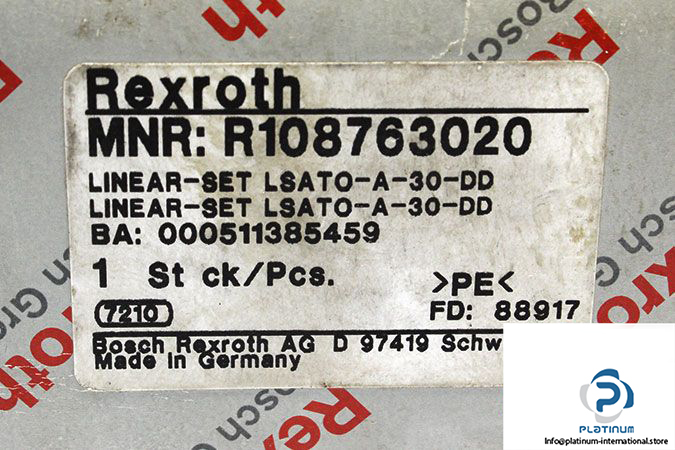

MNR: R1087 630 20
Model: LSATO-A-30-DD
Shaft diameter d: 30 mm
Design type: Tandem, Open Type
Housing Format: Aluminum
Dynamic Load Capacity C: 8150 N
Static Load Capacity C0: 5760 N
Friction Force FR: 2.5 N
Breakaway Force: 6 N
Maximum Acceleration Travel amax: 150 m/s2
Maximum Permissible Speed vmax: 3 m/s

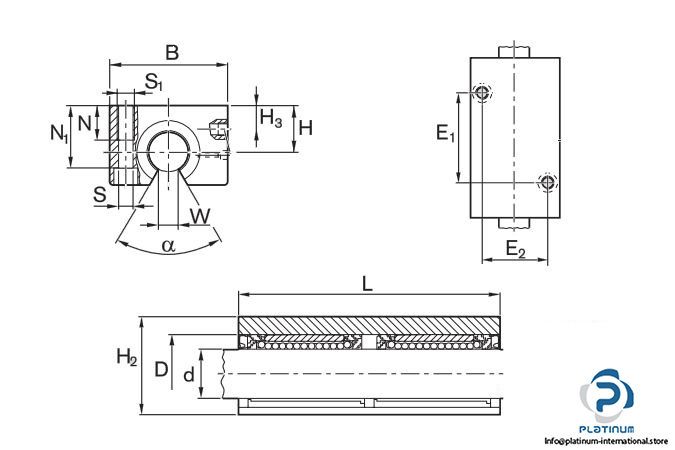

Dimensions:
B: 84 mm
L: 152 mm
H2: 60 mm
E1: 85 mm
E2: 62 mm
Seals: With two integrated wiper seals
Operating temperature: -10… +80 °C
Weight: 1.66 kg
