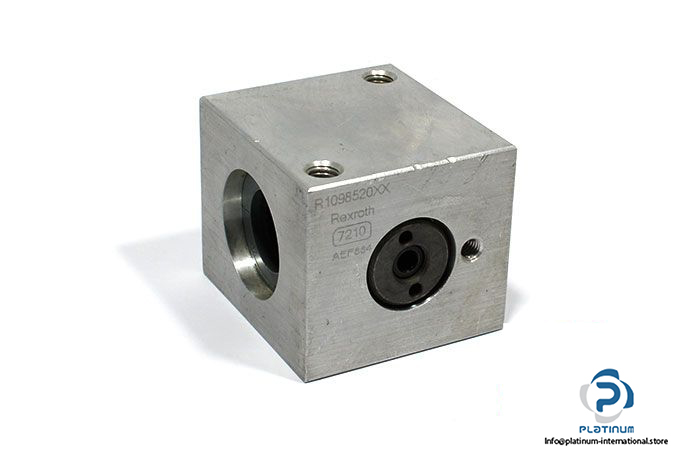

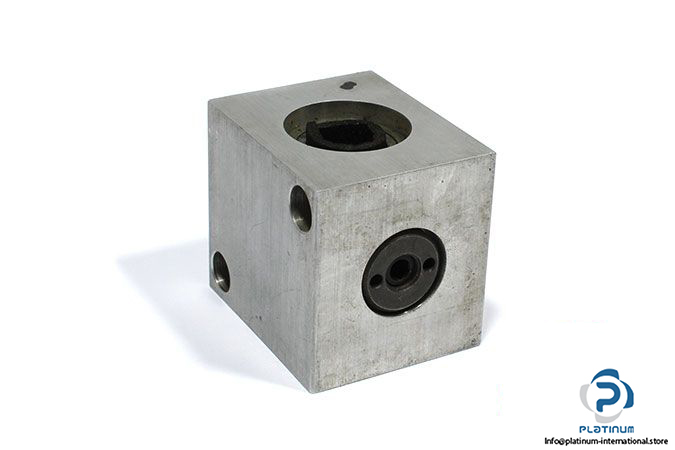

Rexroth R109852000 Linear SET With Torque-Resistant Linear Bushing

Manufacturer: BOSCH REXROTH

Type: Linear Sets incorporating one Torque-Resistant Linear Bushings, Type 2

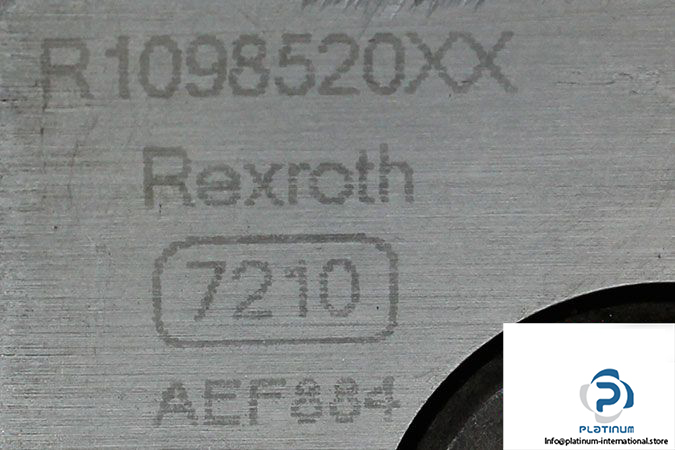

MNR: R1098 520 00

Model: LSADR2-20DD

Shaft diameter d: 20 mm

Design type: Torque, Closed Type

Raceway: Type 2, Two ball guide grooves

Housing Format: Aluminum

Torsional load moment M_t: 12 Nm

Dynamic Load Capacity C: 1550 N

Static Load Capacity C₀: 1050 N

Maximum Acceleration Travel a_max: 150 m/s²

Maximum Permissible Speed v_max: 3 m/s

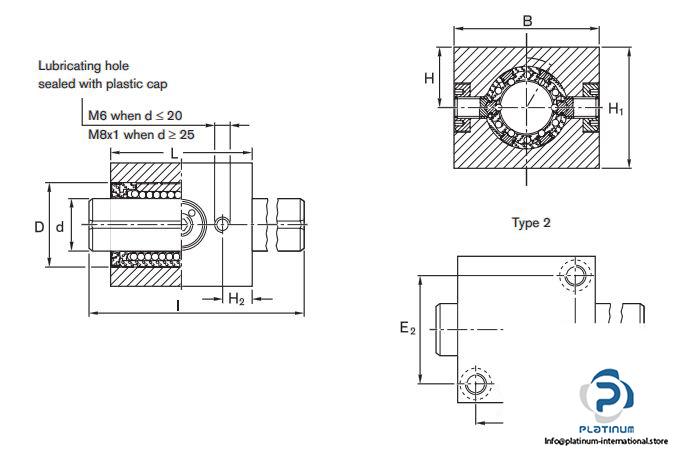

Dimensions:

B: 60 mm

L: 55 mm

H₁: 50 mm

E₁: 39 mm

E₂: 44 mm

Operating temperature: -10… +80 °C

Weight: 0.4 kg
