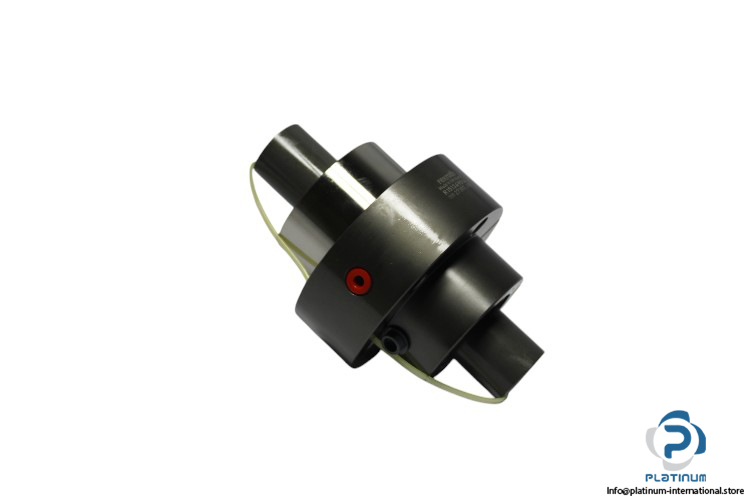

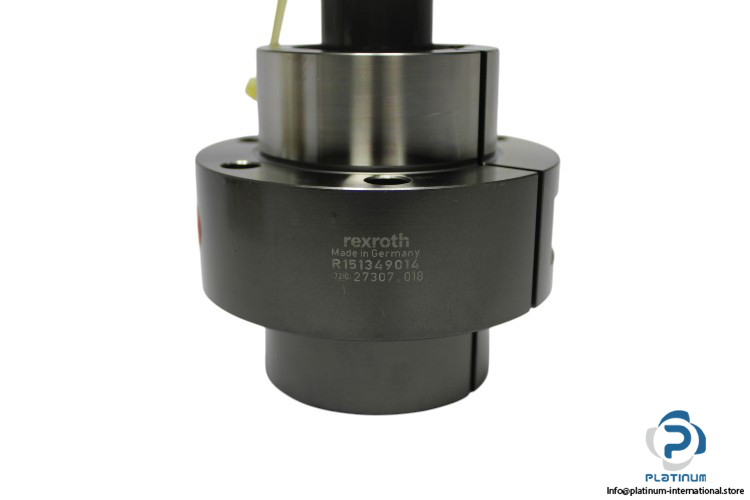

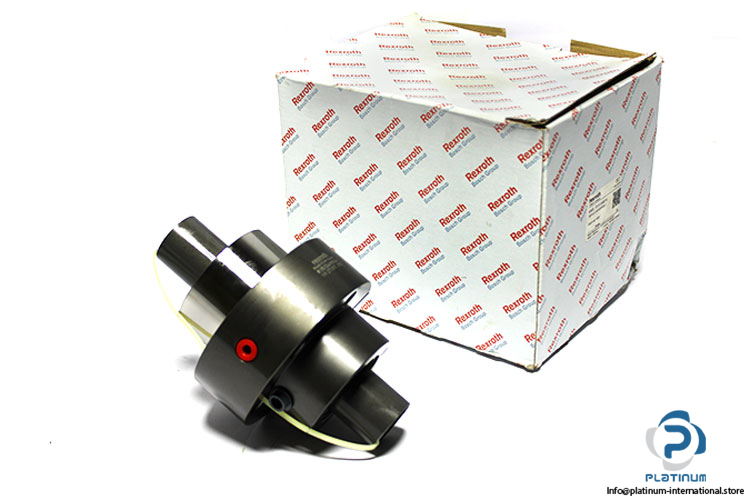

Rexroth R151249014 Adjustable-Preload Single NUT
Rexroth Adjustable-Preload Single Nut SEM-E-S (MNR: R151349014), 40 mm nominal diameter, 40 mm lead, and a dynamic load rating of 30,600 N, ideal for precision applications with adjustable preload for efficient linear motion.
Rexroth Adjustable-Preload Single Nut SEM-E-S
The Rexroth Adjustable-Preload Single Nut SEM-E-S (MNR: R151349014) is a high-quality linear bearing nut with adjustable preload, designed to support dynamic and static load ratings suitable for precision applications. It features a nominal diameter of 40 mm, a ball diameter of 6 mm, and a 40 mm lead, ensuring efficient movement with a maximum linear speed of 150 m/min.
🔧 Technical Specifications:
- Manufacturer: Rexroth
- Type: Adjustable-Preload Single Nut SEM-E-S
- Model Number (MNR): R151349014
- Size: 40 x 40 R
- Nominal Diameter (d0): 40 mm
- Ball Diameter (DW): 6 mm
- Number of Ball Track Turns (i): 2
- Lead (P): 40 mm

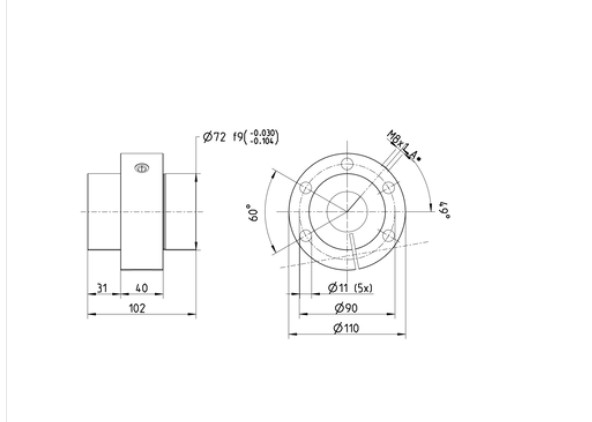

- Nut Diameter: 72 mm
- Flange Diameter: 110 mm
- Flange Width: 40 mm
- Nut Length: 102 mm
- Direction of Lead: Right-Hand Thread
- Dynamic Load Rating (C): 30,600 N
- Static Load Rating (C0): 40,300 N
- Linear Speed (Vmax): 150 m/min
This product is ideal for applications that require high load capacities and efficient linear motion. Its high dynamic and static load ratings, combined with adjustable preload, make it perfect for precision machinery and automation systems.
