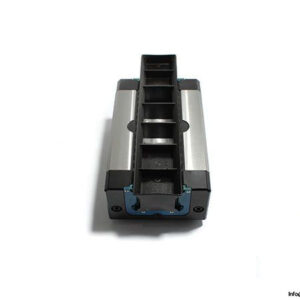

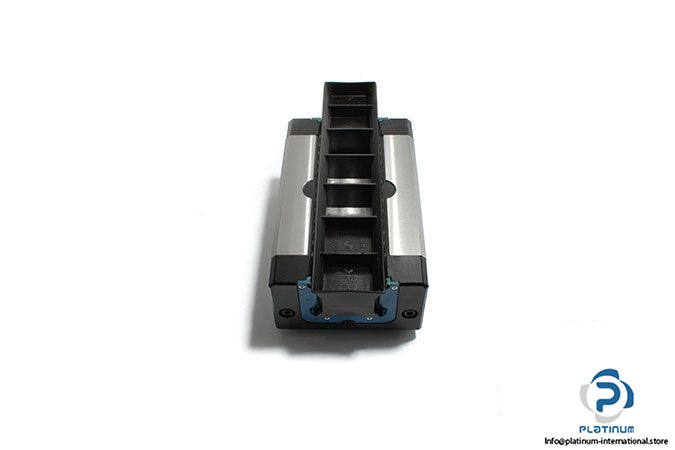

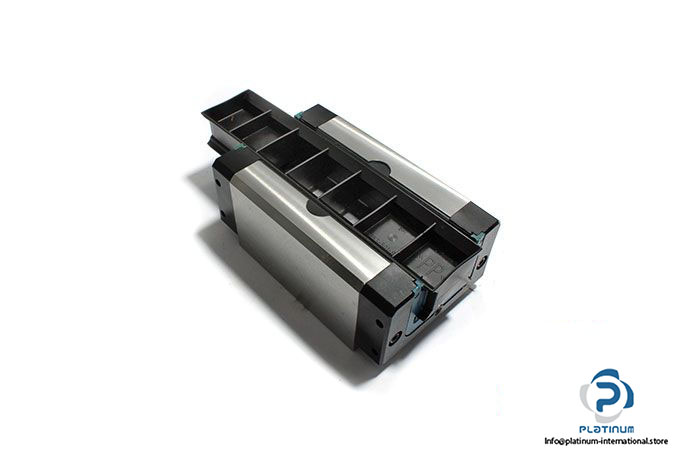

Rexroth R162151210 Ball Runner Block SNH

Manufacturer: REXROTH
Type: Ball Runner Block SNH

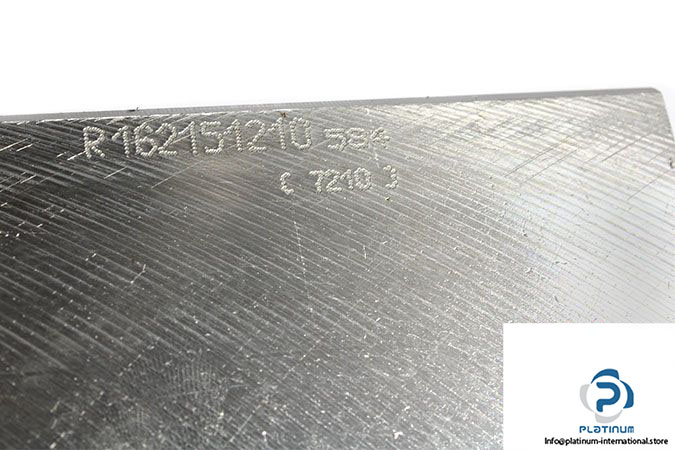

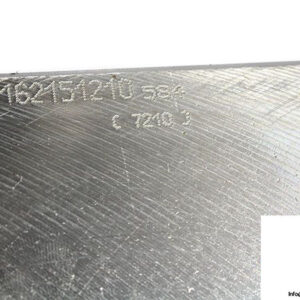

MNR: R1621 512 10

Size: 55 mm
Format: SNH – Slimline, normal, high
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 250 m/s²
Maximum Permissible Speed v_max: 3 m/s
Dynamic Load Capacity C: 109000 N
Static Load Capacity C₀ : 174000 N
Dynamic Torsional Moment Load Capacity M_t:  3480 Nm
Mt0: 5550 Nm
Dynamic longitudinal moment load capacity ML: 2320 Nm
Static longitudinal moment load capacity ML0: 3690 Nm
Accuracy Class: P
Preload Class: C1 – Low

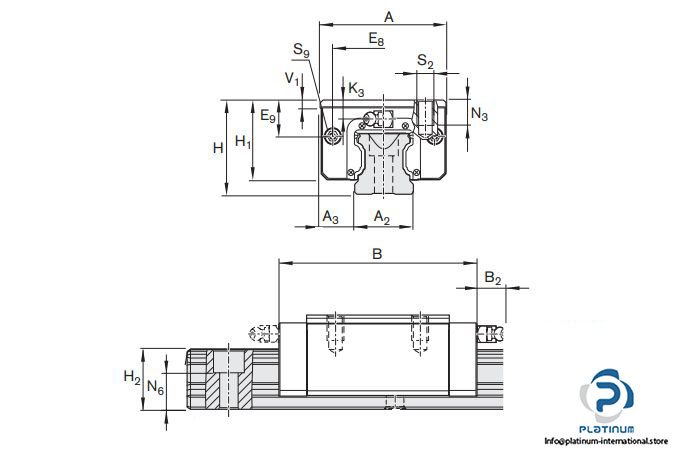

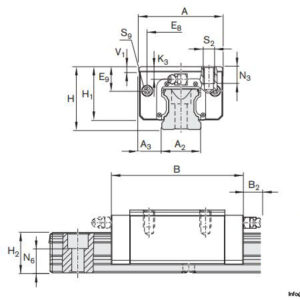

Dimensions
Width (A): 100 mm
Length (B): 159 mm
Height of system(H): 80 mm
Height of block (H₁): 67 mm
E1: 75 mm
E2: 75 mm
Admissible Operating Temperature: -10 °C … +80 °C
