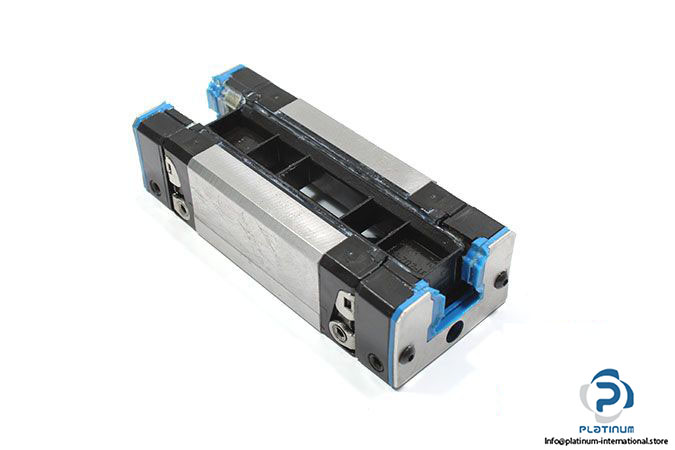

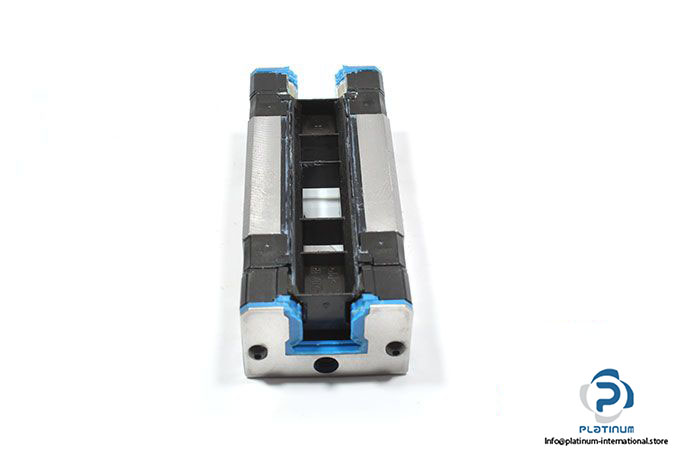

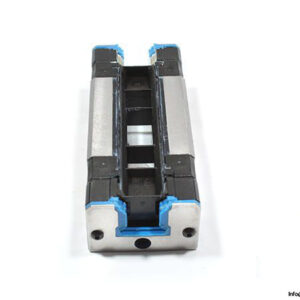

Rexroth R162221424 Ball Runner Block SNS

Manufacturer: REXROTH
Type: Ball Runner Block SNS

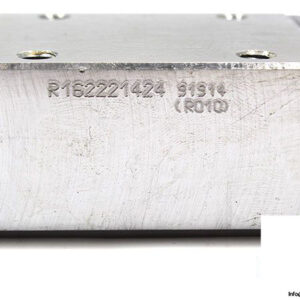

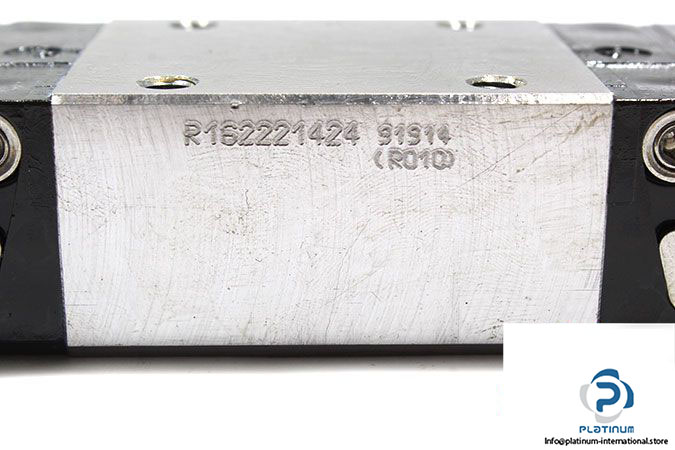

MNR: R1622 214 24

Size: 25 mm
Format: SNS – Slimline, Normal, Standard Height
Material (profiled rail systems): Carbon steel
Accessories: Front Lubrication Units
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 28600 N
Static Load Capacity C₀ : 35900 N
Dynamic Torsional Moment Load Capacity M_t:  410 Nm
Mt0: 510 Nm
Dynamic longitudinal moment load capacity ML: 290 Nm
Static longitudinal moment load capacity ML0: 360 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload

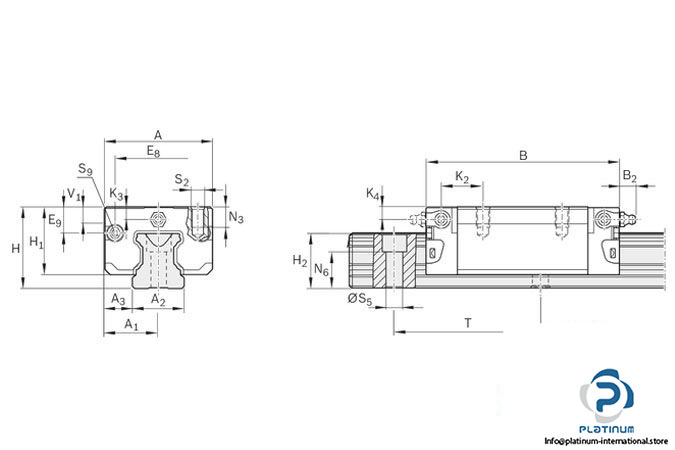

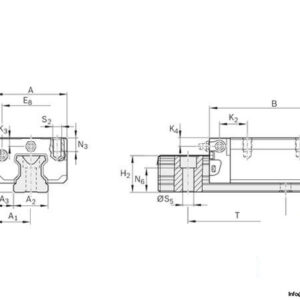

Dimensions
Width (A): 48 mm
Length (B): 86.2 mm
Height of system(H): 36 mm
Height of block (H₁): 29.9 mm
E1: 35 mm
E2: 35 mm
Admissible Operating Temperature: -10 °C … +80 °C
