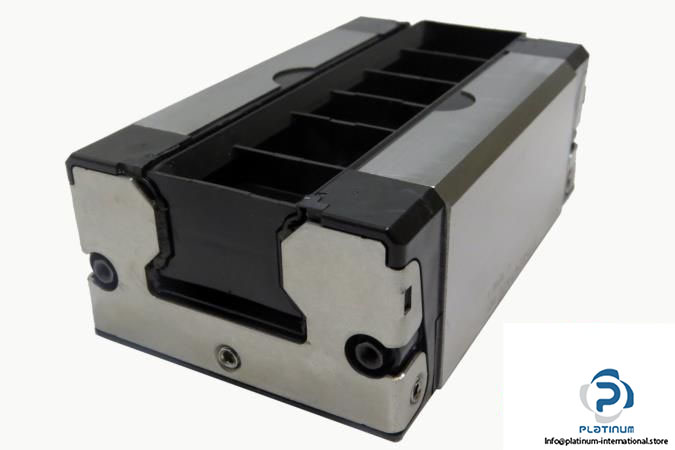

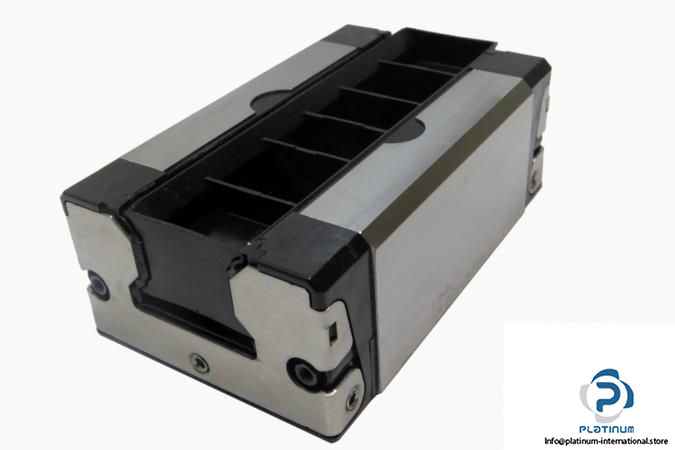

Rexroth R162241420 Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block SNS
MNR: R1622 414 20

Size: 45 mm
Format: SNS – slimline, normal, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 86400 N
Static Load Capacity C₀ : 132000 N
Dynamic Torsional Moment Load Capacity M_t:  2330 Nm
Mt0: 3560 Nm
Dynamic longitudinal moment load capacity ML: 1540 Nm
Static longitudinal moment load capacity ML0: 2350 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload
Dimensions
Width (A): 86 mm
Length (B): 137.6 mm
Height of system(H): 60 mm
Height of block (H₁): 50.30 mm
E1: 60 mm
E2: 60 mm
Admissible Operating Temperature: -10 °C … +80 °C
