Rexroth R162281422 Ball Runner Block
New
In stock4 unitsReady to ship
Ball Runner Block
Rexroth 20 mm ball runner block with SNS slimline design, low preload class C1, high load capacity, and pre-lubricated ball rail system for precision linear motion.20mm22814BallbearingBlockGuideIndustrialKWD-020-SNS-C1-N-1LinearMotionPrecisionR1622railRexrothRunnerSlimlineSNSSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

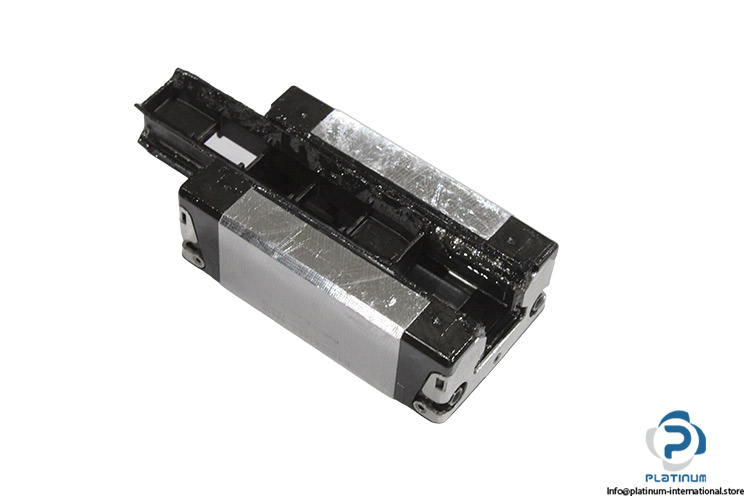

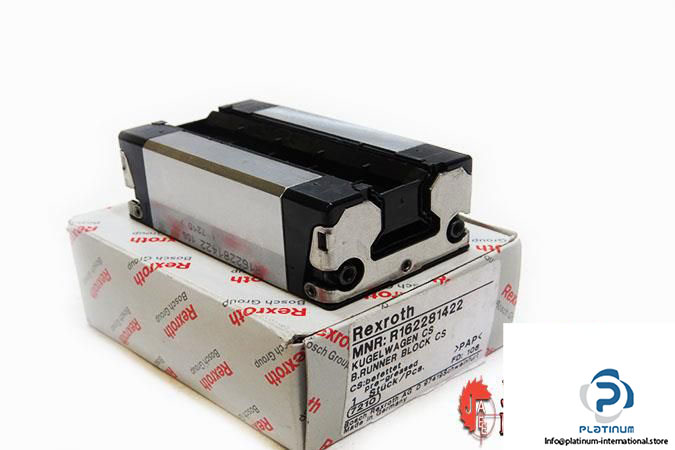

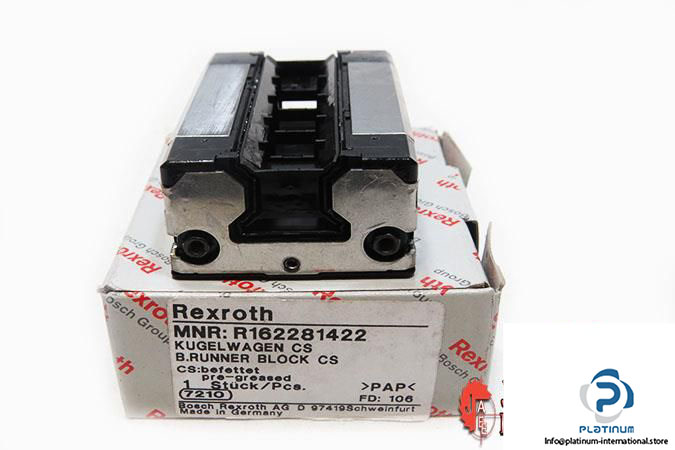

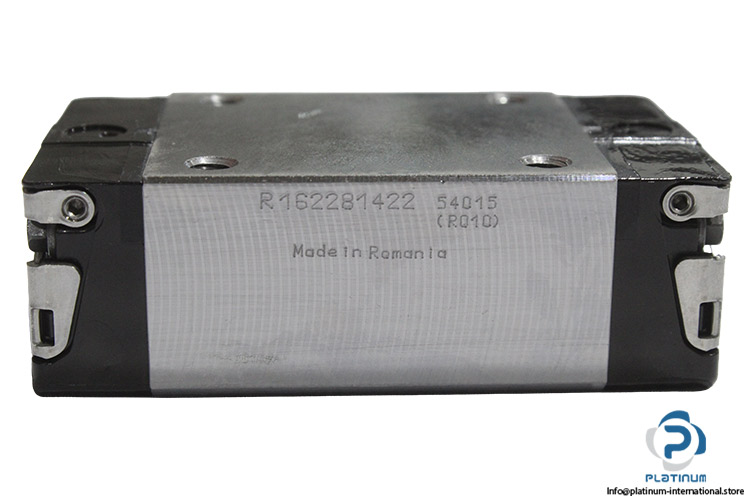

Rexroth KWD-020-SNS-C1-N-1 Ball Runner Block
The Rexroth KWD-020-SNS-C1-N-1 ball runner block is a precision linear motion component designed for smooth, accurate, and reliable movement in profiled rail systems. Its slimline SNS format and pre-lubricated design make it suitable for high-performance industrial automation and linear guidance applications.
Manufacturer: Rexroth
Type: Ball Runner Block
Model: KWD-020-SNS-C1-N-1

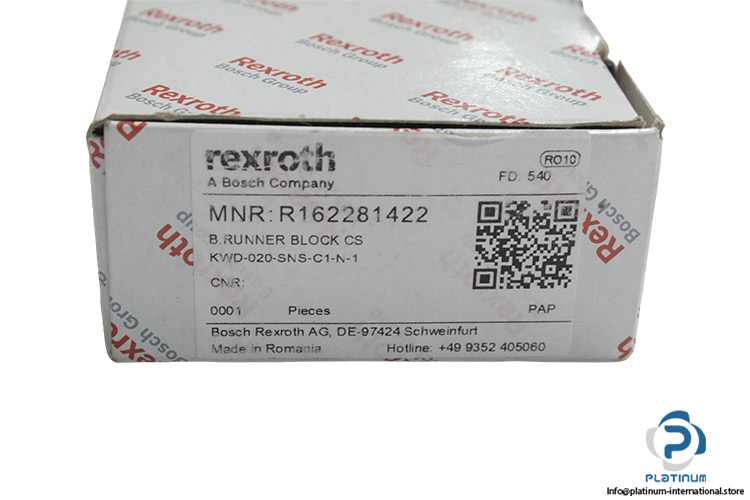

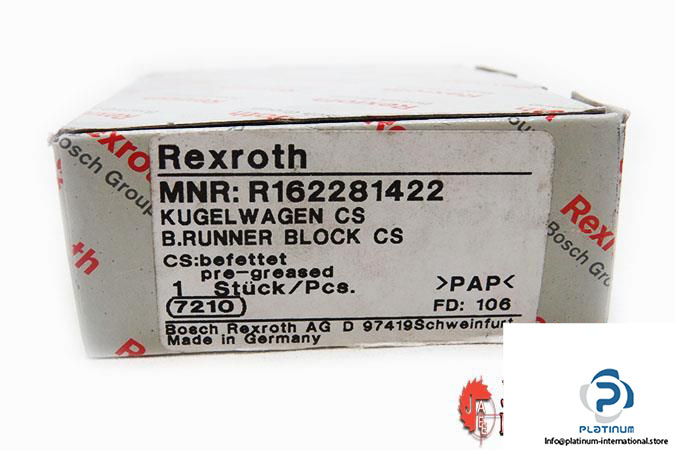

MNR: R1622 814 22
Dimensions
| Version | Ball rail system |
| Size | 20 mm |
| Format | SNS “ slimline, normal, standard height |
| Material (Profiled Rail Systems) | Carbon steel |
| Ball Chain | With ball chain |
| Lubrication | Pre-lubricated, preserved |
| Maximum Acceleration Travel (a max) | 500 m/s² |
| Maximum Permissible Speed (v max) | 5 m/s |
| Dynamic Load Capacity C50 | 28,000 N |
| Dynamic Load Capacity C100 | 22,200 N |
| Static Load Capacity C0 | 27,700 N |
| Dynamic Torsional Moment Load Capacity Mt100 | 280 Nm |
| Static Torsional Moment Load Capacity Mt0 | 350 Nm |
| Dynamic Longitudinal Moment Load Capacity ML100 | 190 Nm |
| Static Longitudinal Moment Load Capacity ML0 | 240 Nm |
| Accuracy Class | N “ normal |
| Preload Class | C1 “ low preload |
| Width of Runner Block (A) | 44 mm |
| Length of Runner Block (B) | 75 mm |
| Height of Runner Block with Guide Rail (H) | 30 mm |
| Height of Runner Block (H1) | 25.35 mm |
| Permissible Ambient Temperature | 0 to +80 °C |
