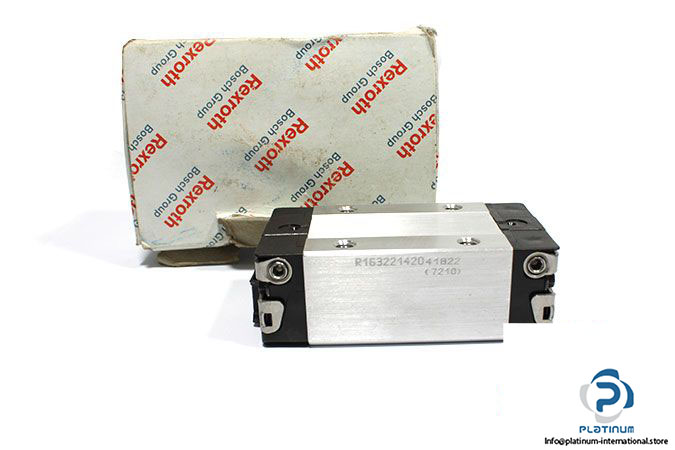

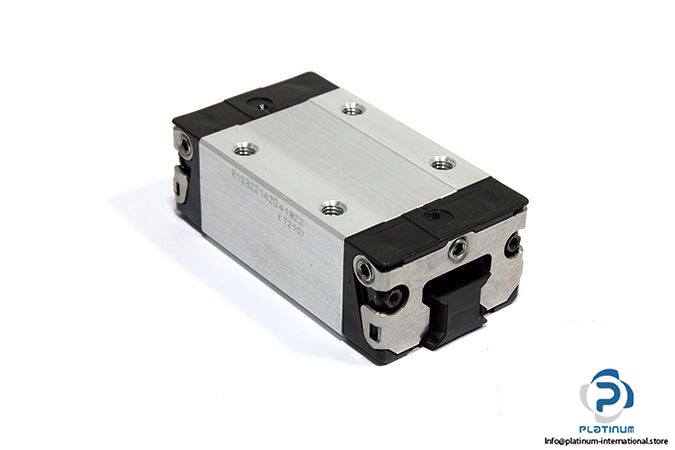

Rexroth R163221420 Ball Runner Block SNS

Manufacturer: Bosch Rexroth

Type: Ball Runner Block SNS

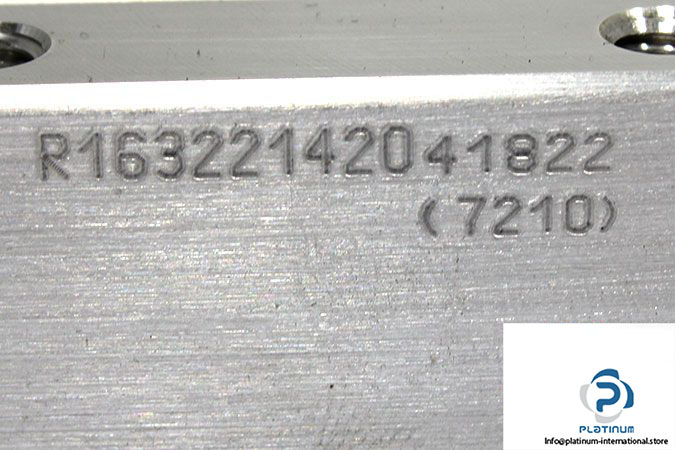

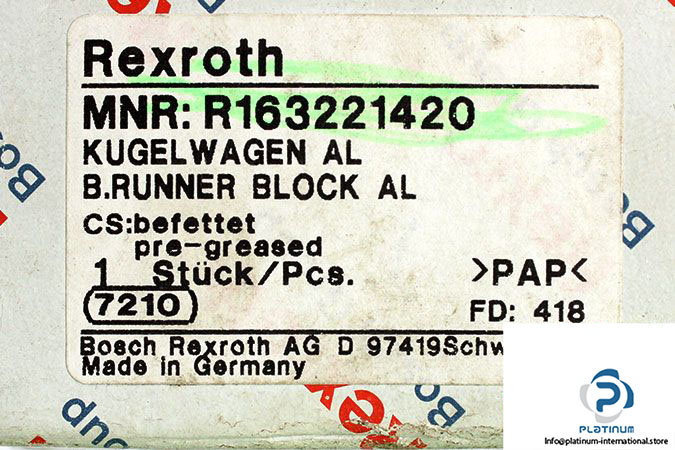

MNR: R1632 214 20

Size: 25 mm

Mechanical Format: KWD

Design: SNS – Slimline, Normal, Standard Height

Format: AL – Aluminum

Maximum Acceleration Travel a_max: 500 m/s²

Maximum Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 28600 N

Maximum dynamic load F_max: 8800 N

Dynamic Torsional Moment Load Capacity M_t:  410 Nm

Dynamic Longitudinal Moment Load Capacity M_L: 290 Nm

Accuracy Class: N

Preload Class: C1 – Low

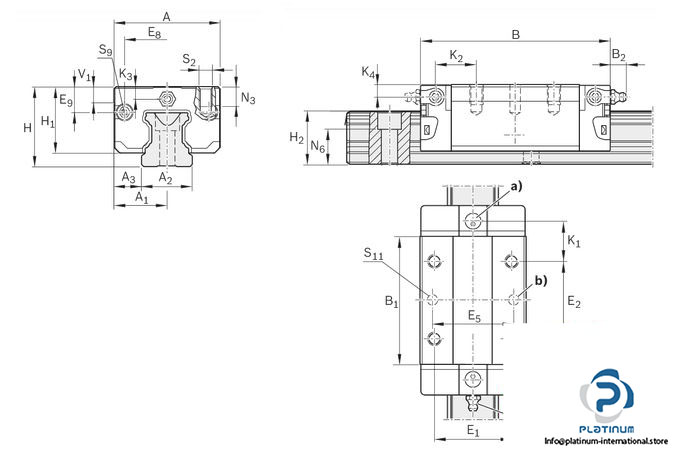

Dimensions

Width (A): 48 mm

Length (B): 86.2 mm

Height (H): 36 mm

E₁: 35 mm

E₂: 35 mm

Admissible Operating Temperature: -10… +80 °C

Weight: 0.31 kg
