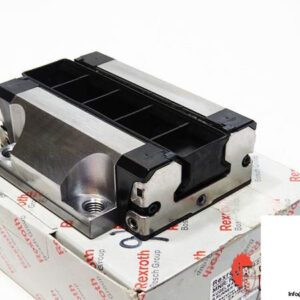

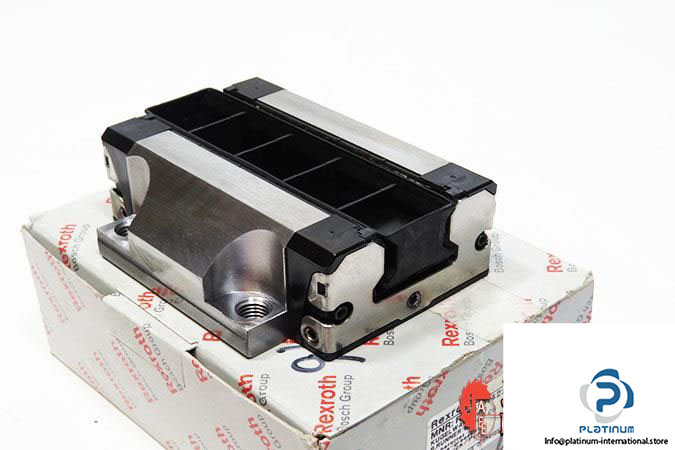

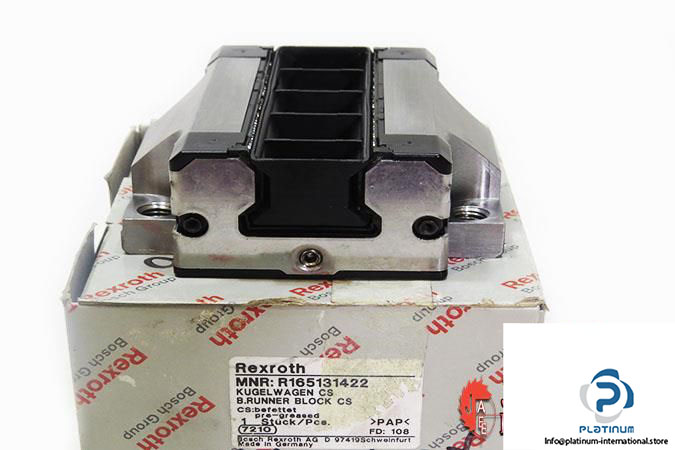

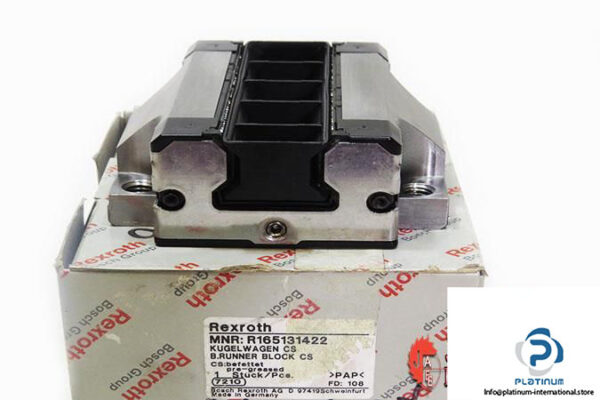

Rexroth R165131422 Ball Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block FNS

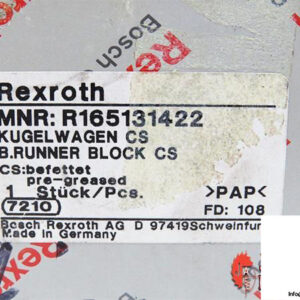

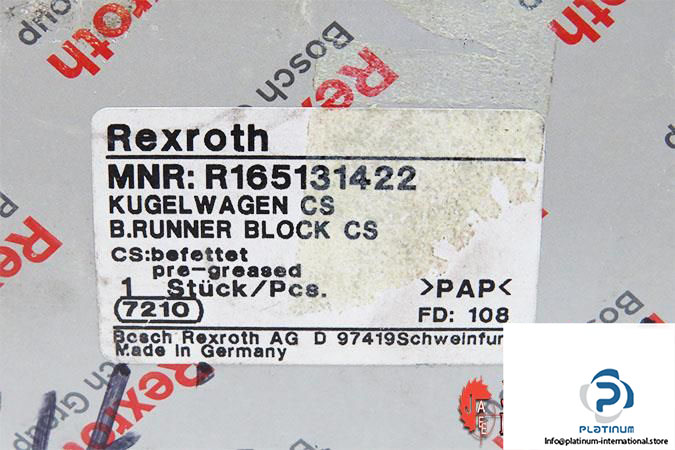

MNR: R1651 314 22

Size: 35 mm
Format: FNS, flanged, normal, standard height
Material (profiled rail systems): Carbon steel
Ball chain: with Ball chain
Lubrication: With initial lubrication and preservation
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 49400 N
Static Load Capacity C₀ : 75200 N
Dynamic Torsional Moment Load Capacity M_t:  1060 Nm
Static torsional moment load capacity Mt0: 1620 Nm
Dynamic longitudinal moment load capacity ML: 700 Nm
Static longitudinal moment load capacity ML0: 1060 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload
Dimensions
Width (A): 100 mm
Length (B): 110.5 mm
Height of system (H): 48 mm
Height of block (H₁): 40.40 mm
E1: 82 mm
E2: 62 mm
Admissible Operating Temperature: -10 °C … +80 °C
