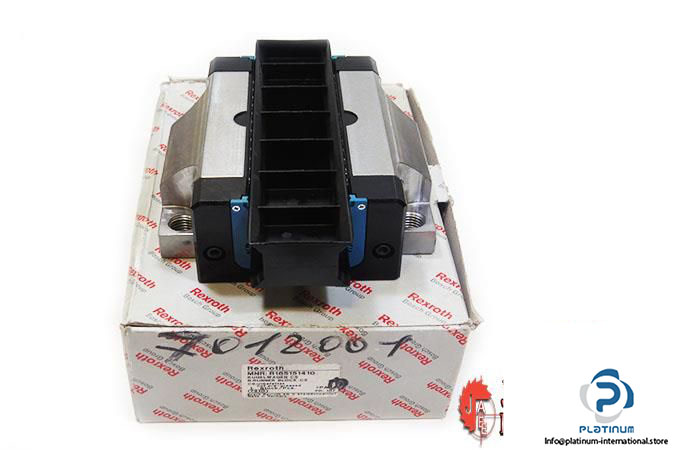

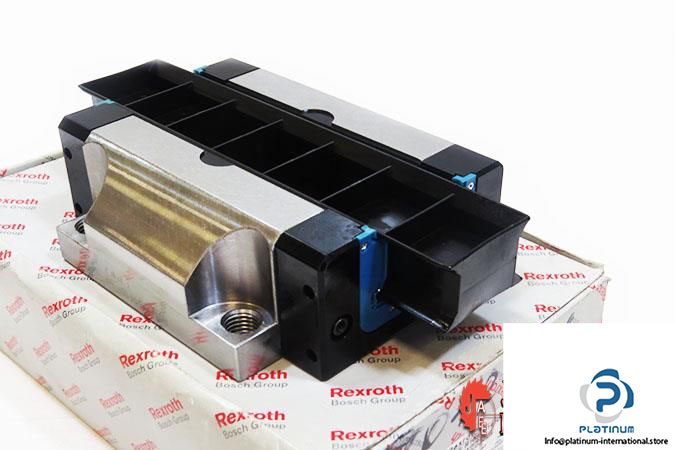

Rexroth R165151410 Ball Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block FNS
MNR: R1651 514 10

Size: 55 mm
Format: FNS, flanged, normal, standard height
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 109000 N
Static Load Capacity C₀ : 174000 N
Dynamic Torsional Moment Load Capacity M_t:  3480 Nm
Static torsional moment load capacity Mt0: 5550 Nm
Dynamic Longitudinal Moment Load Capacity M_L: 2320 Nm
Static longitudinal moment load capacity ML0: 3690 Nm
Accuracy Class: N – normal
Preload Class: C1 – Low
Dimensions
Width (A): 140 mm
Length (B): 159 mm
Height of system (H): 70 mm
Height of block (H₁): 57 mm
E1: 116 mm
E2: 95 mm
Admissible Operating Temperature: -10 °C … +80 °C
