Rexroth R165351410 Ball Runner Block FLS

Manufacturer: REXROTH
Type: Ball Runner Block FLS
MNR: R1653 514 10

Size: 55 mm
Format: FLS – flanged, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel amax: 250 m/s²
Maximum Permissible Speed vmax: 5 m/s
Dynamic Load Capacity C: 139000 N
Static Load Capacity C₀ : 245000 N
Dynamic Torsional Moment Load Capacity M_t:  4410 Nm
Mt0: 7780 Nm
Dynamic longitudinal moment load capacity ML: 3960 Nm
Static longitudinal moment load capacity ML0: 6990 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload

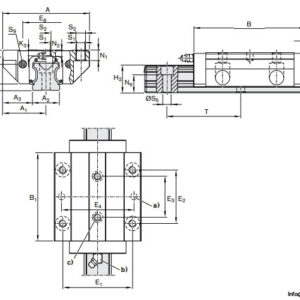

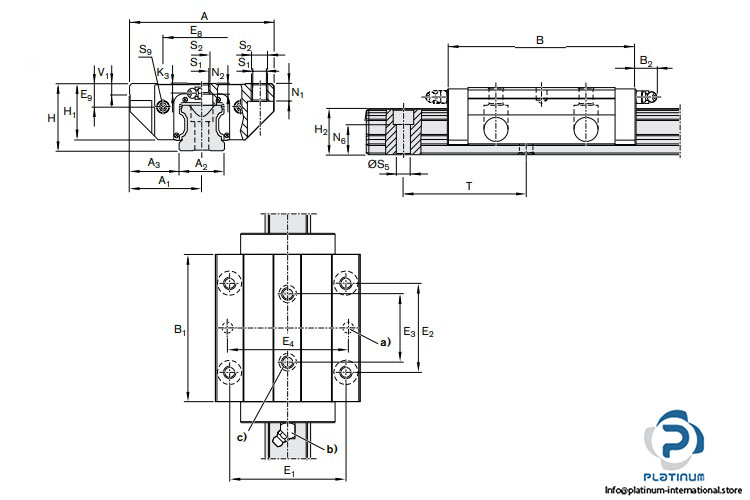

Dimensions
Width (A): 140 mm
Length (B): 199 mm
Height of system(H): 70 mm
Height of block (H₁): 57 mm
E1: 116 mm
E2: 95 mm
Admissible Operating Temperature: -10 °C … +80 °C
