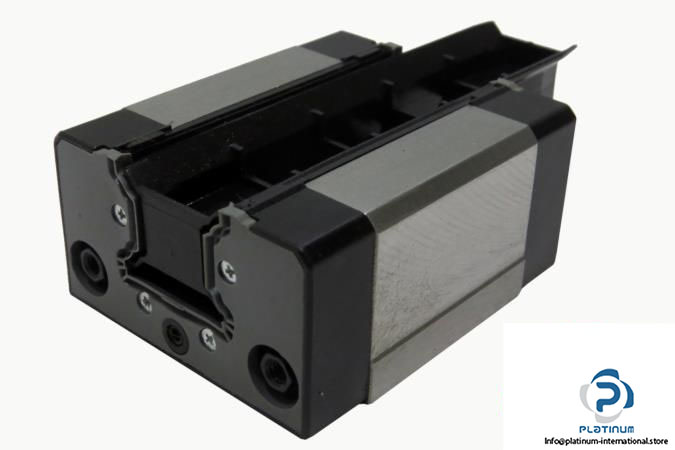

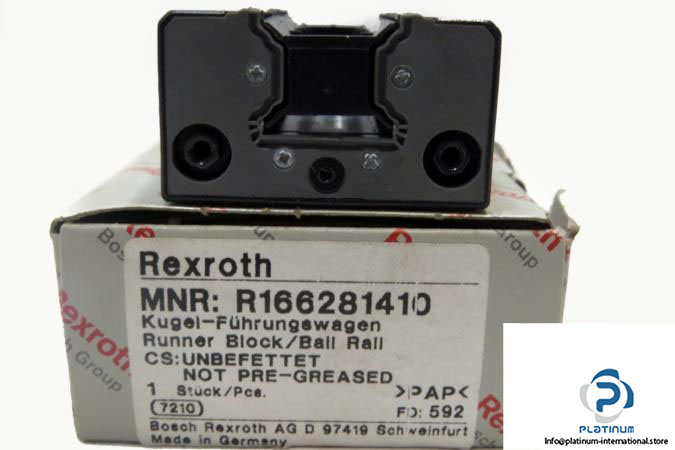

Rexroth R166281410 Runner Block

Manufacturer: REXROTH
Type: Ball Runner Block SKS
MNR: R1662 814 10

Size: 20 mm
Format: SKS, Slimline, short, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 10100 N
Permissible load F Max: 3900 N
Dynamic Torsional Moment Load Capacity M_t: 130 Nm
Mt max: 50 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload
Dimensions
Width (A): 44 mm
Length (B): 57.3 mm
Height of system (H): 30 mm
Height of block (H₁): 25.35 mm
E1: 32 mm
Admissible Operating Temperature: -10 °C … +80 °C
