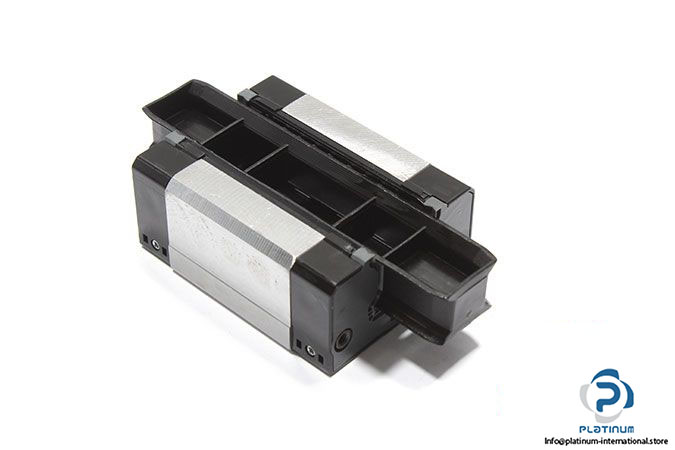

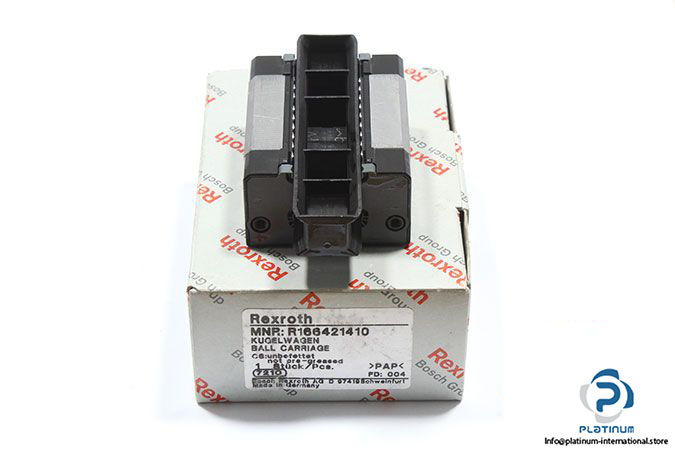

Rexroth R166421410 Ball Runner Block SKN
Manufacturer: REXROTH
Type: Ball Runner Block SKN

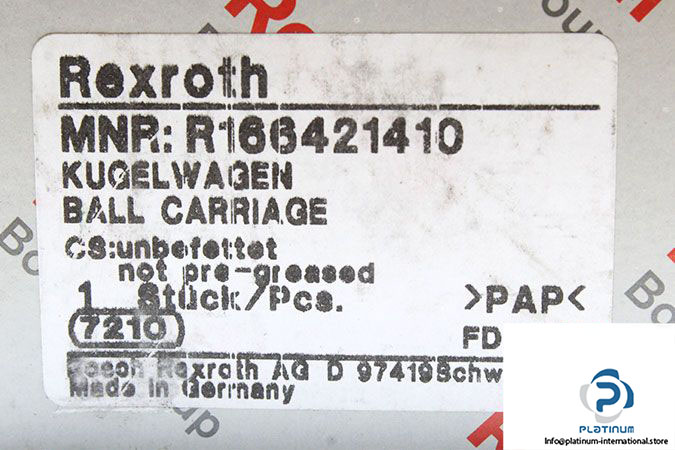

MNR: R1664 214 10
Size: 25 mm
Format: SKN – Slimline, short, low
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel amax: 250 m/s²
Maximum Permissible Speed vmax: 3 m/s
Dynamic Load Capacity C: 19800 N
Static Load Capacity C0 : 21200 N
Dynamic Torsional Moment Load Capacity Mt: 280 Nm
Mt0: 300 Nm
Dynamic longitudinal moment load capacity ML: 130 Nm
Static longitudinal moment load capacity ML0: 140 Nm
Accuracy Class: N – normal
Preload Class: C1 – low preload

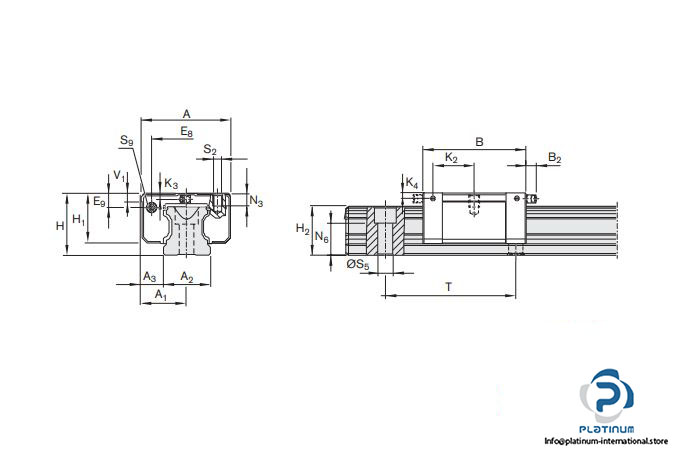

Dimensions
Width (A): 48 mm
Length (B): 62 mm
Height of system(H): 33 mm
Height of block (H1): 26.5 mm
E1: 35 mm
E2: 38.3 mm
Admissible Operating Temperature: -10 °C … +80 °C
