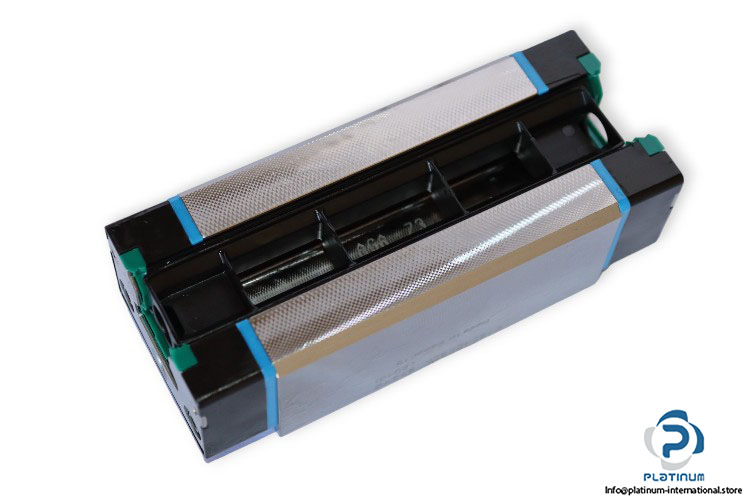

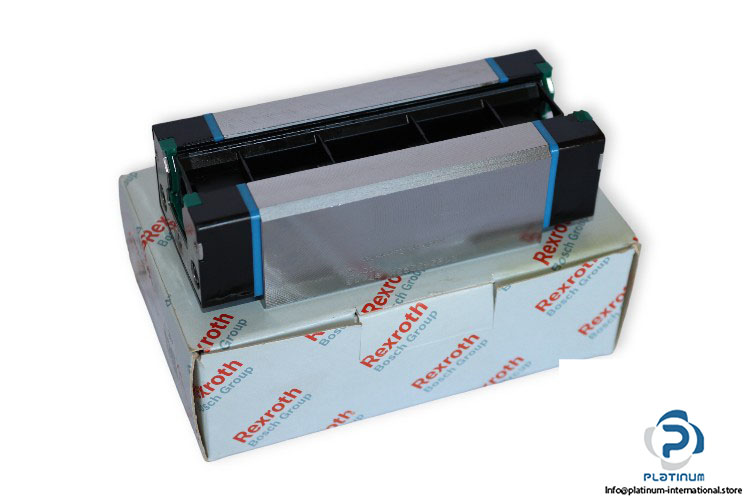

Rexroth R18242232X Roller Runner Block

Manufacturer: Bosch Rexroth
Type: ROLLER RUNNER BLOCK SLH

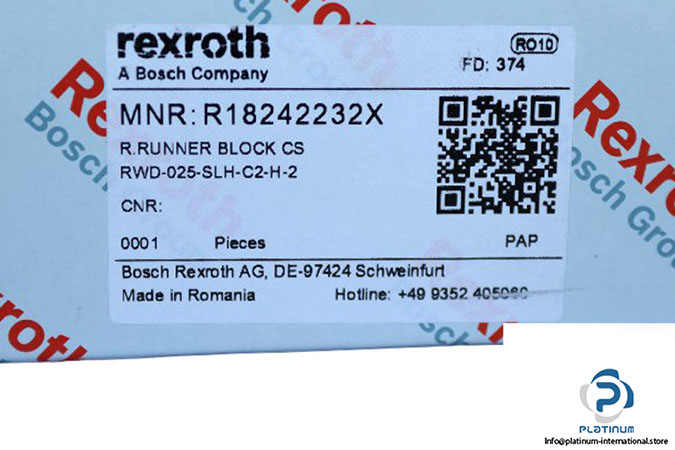

MNR: R18242232X

Size: 25 mm
Format: SLH – Slimline, long, high
Maximum Acceleration Travel a_max: 150 m/s²
Maximum Permissible Speed v_max: 4 m/s
Dynamic Load Capacity C: 33300 N
Static Load Capacity C₀: 76400 N
Dynamic Torsional Moment Load Capacity M_t:  432 Nm
Dynamic Longitudinal Moment Load Capacity M_L: 420 Nm
Accuracy Class: H – Highly accurate
Preload Class: C2 – Average preload
Dimensions
Width (A): 48 mm
Length (B): 115 mm
Block Height (H₁): 34 mm
Total height (H): 40 mm
E₁: 35 mm
E₂: 50 mm
Admissible Operating Temperature: -10 … +80 °
