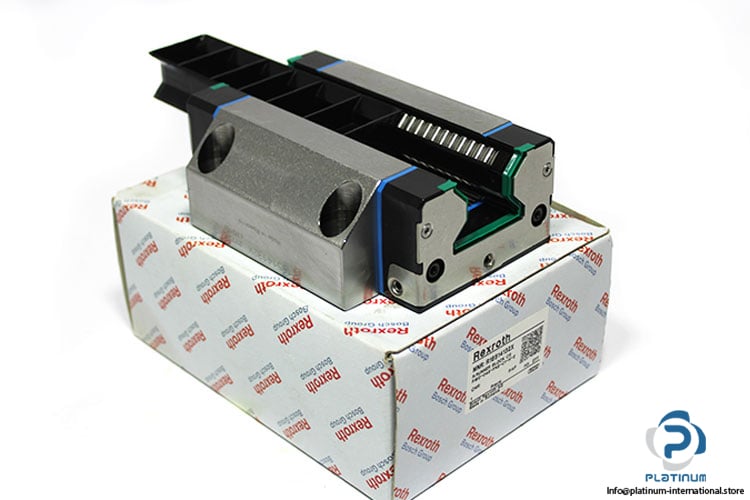

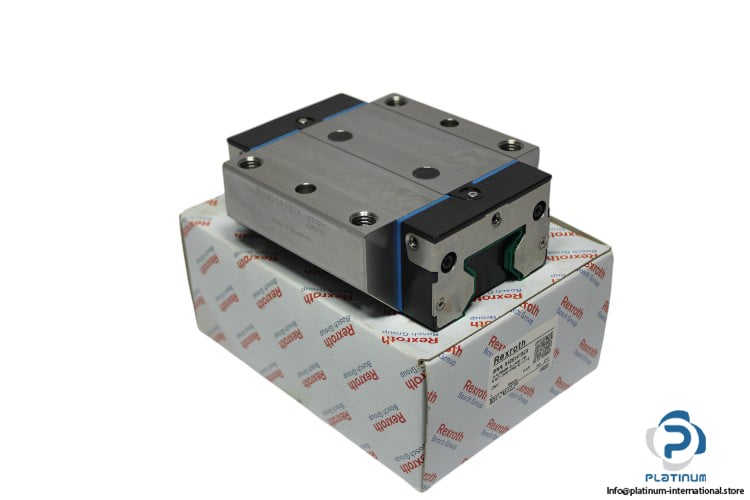

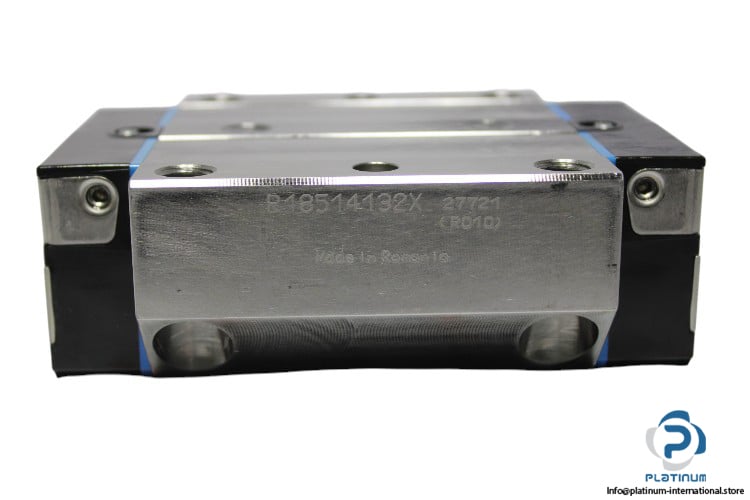

Rexroth R18514132X Roller Runner Block
New
In stock16 unitsReady to ship
Rexroth ROLLER RUNNER BLOCK R18514132X, designed for high dynamic and static load capacity, with high accuracy and efficient performance in linear motion systems. Max speed: 4 m/s, Max acceleration: 150 m/s².
AccuracyBlockCapacityDynamicHighhigh-performanceLinearLoadMotionProfiledR18514132XrailRexrothRollerRunnerStaticSystems
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Rexroth ROLLER RUNNER BLOCK R18514132X
The Rexroth ROLLER RUNNER BLOCK R18514132X is a precision roller block designed for high-performance motion systems. It offers robust load capacity, smooth travel, and high accuracy. The dynamic and static load capacities ensure reliable and durable operation under various conditions.
🔧 Technical Specifications:
- Manufacturer: Rexroth
- Type: ROLLER RUNNER BLOCK
- Model No: R18514132X

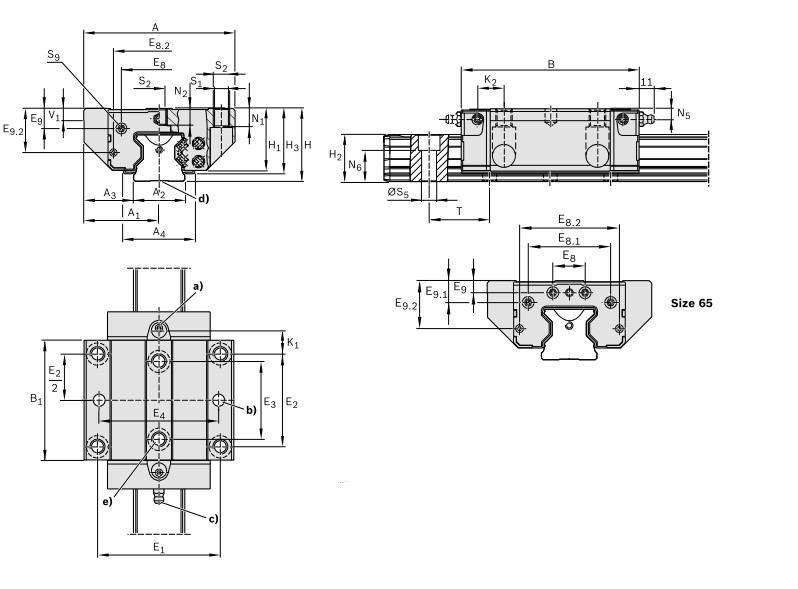

- Size: 45 mm
- Width (A): 120 mm
- Length (B): 147 mm
- Height of system (H): 60 mm
- Height of block (H1): 51 mm
- E1: 100 mm
- E2: 80 mm
- Format: FNS – flange, normal, standard height
- Material (profiled rail systems): Steel
- Maximum Acceleration Travel (amax): 150 m/s²
- Maximum Permissible Speed (vmax): 4 m/s
- Dynamic Load Capacity (C): 106600 N
- Static Load Capacity (C0): 209400 N
- Dynamic Torsional Moment Load Capacity (Mt): 2640 Nm
- Static Torsional Moment Load Capacity (Mt0): 5180 Nm
- Dynamic Longitudinal Moment Load Capacity (ML): 1650 Nm
- Static Longitudinal Moment Load Capacity (ML0): 3240 Nm
- Accuracy Class: H – High accuracy
- Preload Class: C1 – Low preload
This roller runner block is designed to provide high efficiency, precision, and performance in demanding linear motion applications, ensuring durability and reliability even under heavy loads and extreme conditions.
