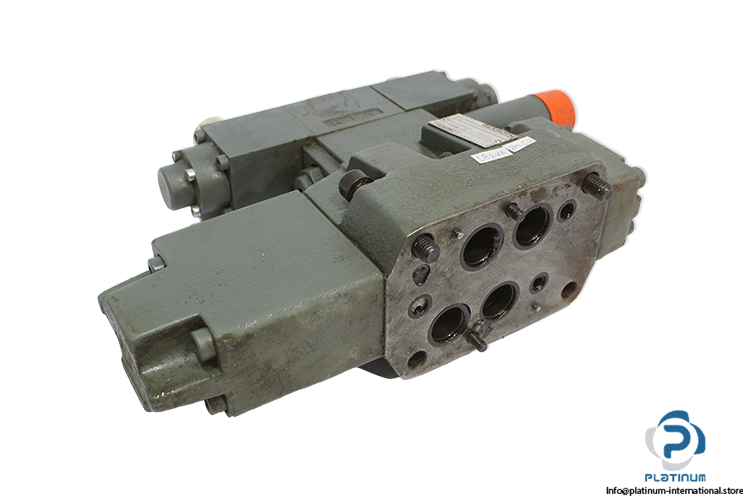

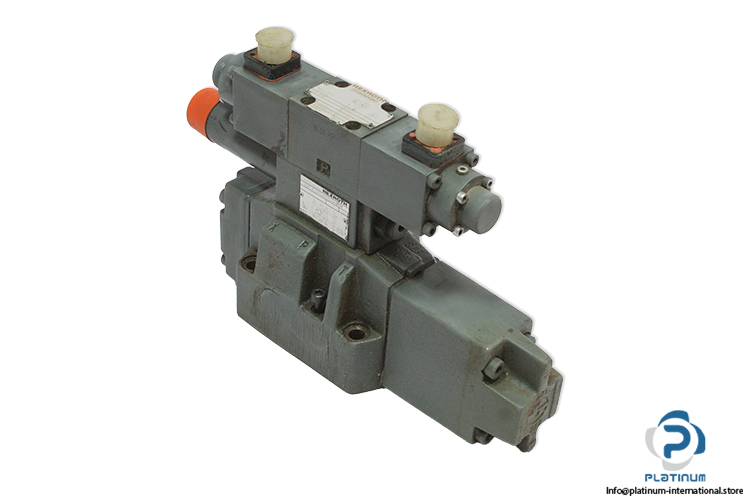

Rexroth R900383767 Proportional Directional Valve
Used
In stock2 unitsReady to ship

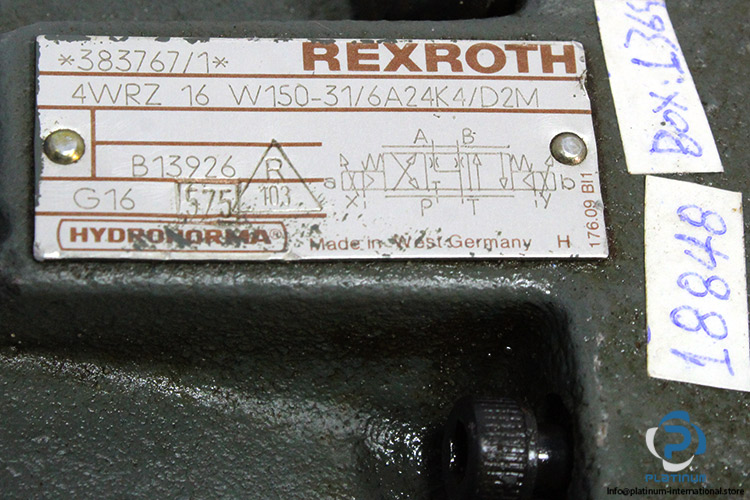

Proportional Directional Valve REXROTH 4WRZ 16 electro-hydraulic proportional directional valve with NG16 size, high flow capacity, and integrated pressure reducing valves and solenoid coil for advanced hydraulic control systems.
24v4WRZ16assemblyControlDirectionalElectroflowHydraulicIndustrialng16PressureProportionalReducingRexrothValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| MNR | R900383767 |
| Nominal Size, Proportional Directional Valve | NG 16 |
| Type of Actuation, Proportional Directional Valve | Electro-hydraulic |
| FUNCTION, Proportional Directional Valve | 4/3 WAY VALVE |
| Nominal flow, Proportional Directional Valve | 150 BAR |
| Ambient Temperature, Proportional Directional Valve | -20 …. +80 °C |
| Maximum Operating pressure, Main valve, Proportional Directional Valve | 350 ba |
| Max. Flow Rate, Proportional Directional Valve | 460 L/min |
| Hydraulic Fluid Temperature Range, Proportional Directional Valve | -20 …. +80 °C |
| Viscosity Range, Proportional Directional Valve | 20…380 mm2/s |
| Direct voltage, Proportional Directional Valve | 24 V |
| CONNECTION, Proportional Directional Valve | SUB PLATE |
| NBR, Proportional Directional Valve | seals |

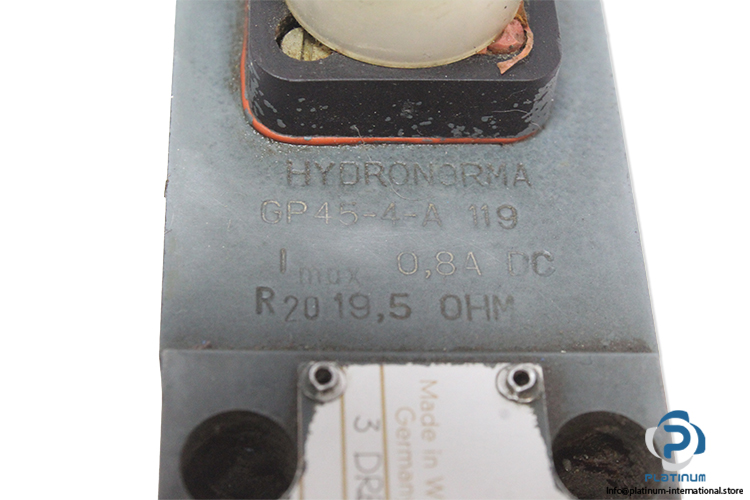

| ATTACHED WITH 1 | HYDRONORMA GP45-4-A SOLENOID COIL |
| Current Consumption, SOLENOID COIL | 0.8 A |
| Resistance R20 | 19.5 ohm |
| Electrical Connection, SOLENOID COIL | 3-pin |
| Protection Class, SOLENOID COIL | IP65 |
| Length x Width, SOLENOID COIL | 110 x 45 mm |

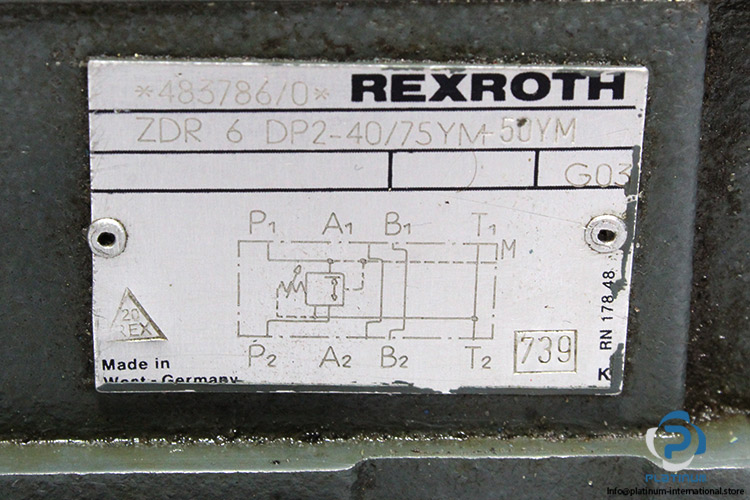

| Attached With 2 | REXROTH R900483786 DIRECT OPERATED PRESSURE REDUCING VALVE, ZDR 6 DP2-40/75YM/50YM |
| Fluid, Pressure Reducing Valve | Oil |
| Nominal Size, Pressure Reducing Valve | NG6 |
| Type of Actuation, Pressure Reducing Valve | Sleeve with hexagon and protective cap |
| Maximum operating pressure, Pressure Reducing Valve | Input 350 |
| Maximum secondary pressure , Pressure Reducing Valve | Output bar 25; 75; 150; 210; 315 |
| Maximum counter pressure , Pressure Reducing Valve | Port T(Y) bar 160 |
| Max. Secondary Pressure, Pressure Reducing Valve | 75 bar |
| Max. Flow Rate, Pressure Reducing Valve | 80 L/min |
| Connection, Pressure Reducing Valve | Sub-plate |
| Seals, Pressure Reducing Valve | NBR |
| Fluid Temperature Range, Pressure Reducing Valve | -20 / 80 °C |

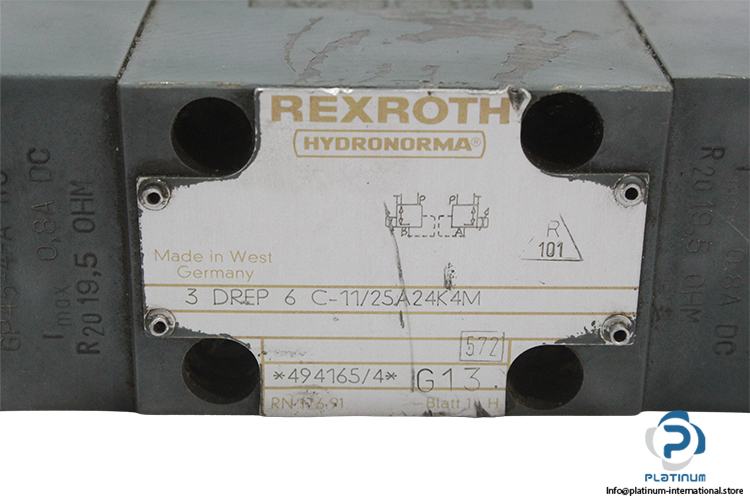

| ATTACHED WITH | REXROTH R900494165 PROPORTIONAL PRESSURE REDUCING VALVE, 3DREP 6 C-11/25A24K4M |
| Nominal Size, Pressure Reducing Valve,R900494165 | NG 6 |
| Type of Actuation, Pressure Reducing Valve,R900494165 | Electrically |
| Operating pressure range Port P, Pressure Reducing Valve | 20 … 100 bar |
| Max. Pressure (Port T), Pressure Reducing Valve | 30 bar |
| Max. Flow Rate, Pressure Reducing Valve,R900494165 | 15 l/min |
| Hydraulic Connection, Pressure Reducing Valve | Sub-Plate |
| Fluid Temperature Range, Pressure Reducing Valve,R900494165 | -20 ….. 80 °C |
| Condition | Used |
| SKU | 1096453 |
| Weight | 13 |
