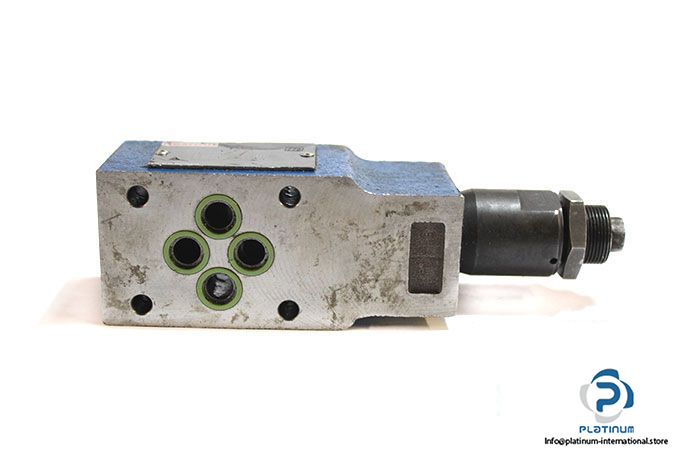

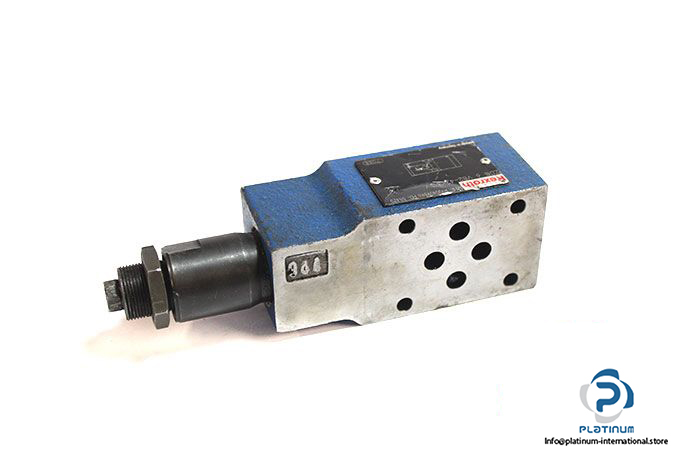

Rexroth R900409896 Pressure Relief Valve Pilot Operated

Manufacturer: Rexroth

Type: Pressure Relief Valve Pilot Operated

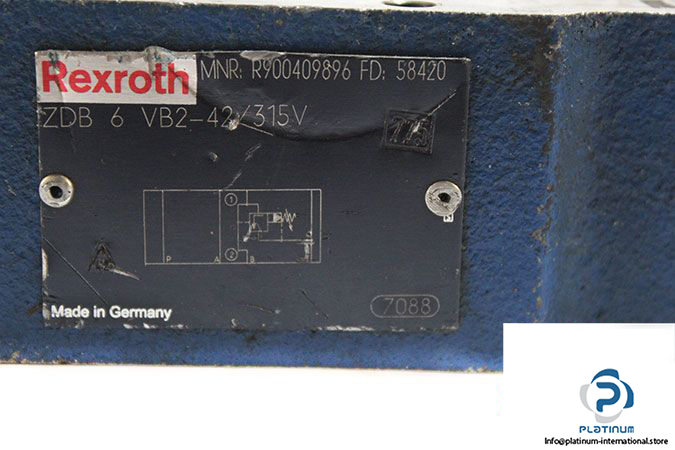

Model: ZDB 6 VB2-42/315V

MNR: R900409896

Size: 6

Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap

Ambient Temperature Range: –20 …. +80 ^oC

Maximum Operating Pressure:315 bar

Maximum Backpressure at Port Y :315 bar

Maximum Flow Rate: 60 l/min

Hydraulic Fluid Temperature Range: –20 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 1.12 kg
