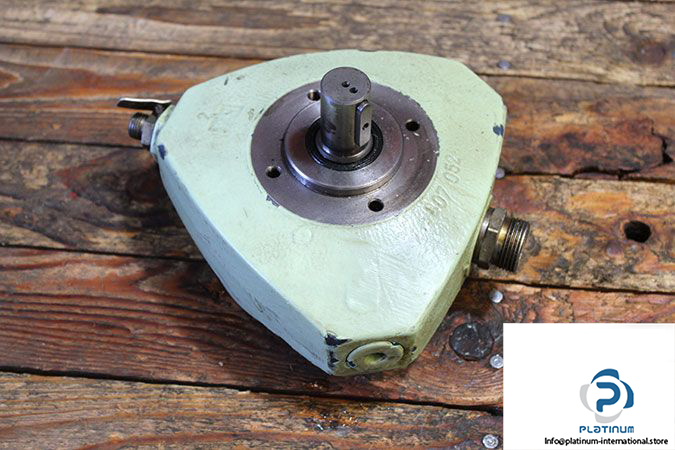

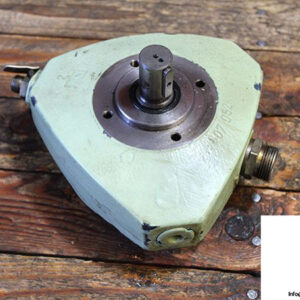

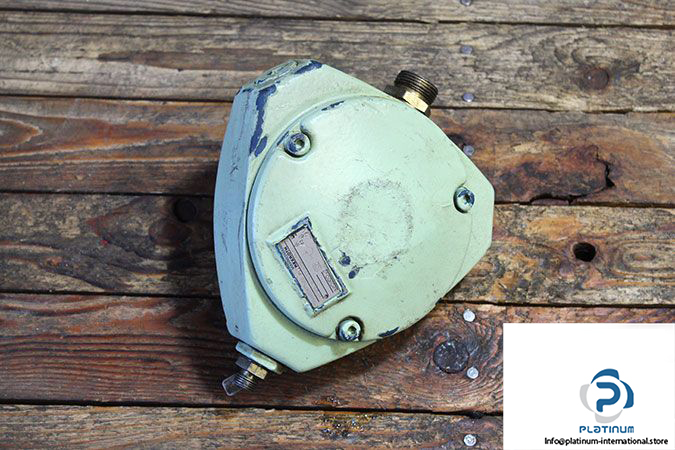

Rexroth R900460047 Fixed Displacement Radial Piston Pump

Manufacturer: Rexroth

Type: Fixed Displacement Radial Piston Pump

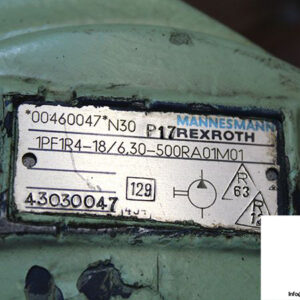

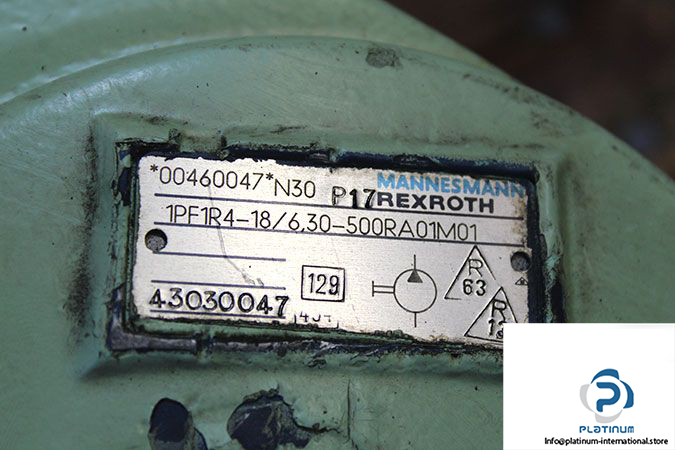

Model: 1PF1R4-18/6.30-500RA01M01

MNR: R900460047



Size: 6

Displacement: 5.83 cm³

Direction of Rotation: Clockwise

Shaft Diameter: 25 mm

Operating pressure: 500 bar

Pressure fluid temperature range: -10 … 70 °C

Speed Range: 1000 …. 2000 rpm

Flow Rate at 1450 rpm: 8.42 l/m

No. of Piston: 3

Torque at 100 bar: 160 N.m

Viscosity Range: 10 ….  200 mm²/s

Weight: 9.4 Kg
