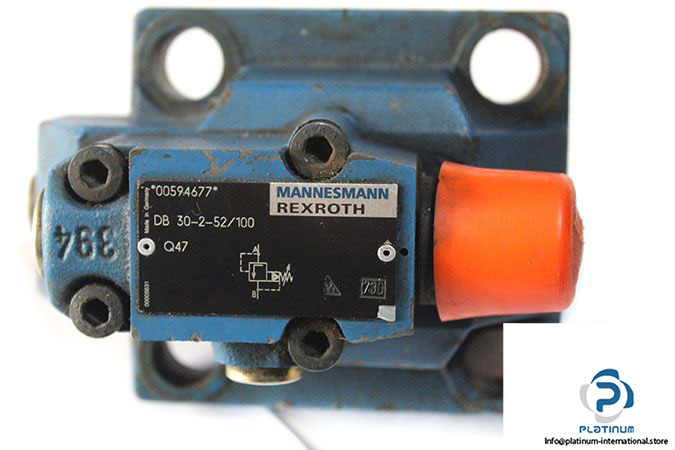

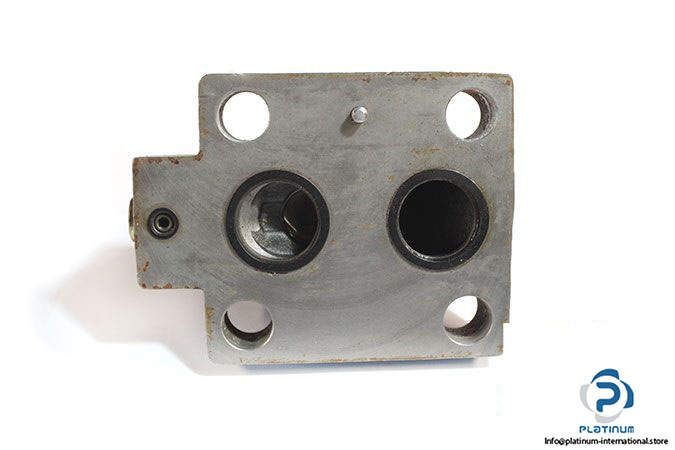

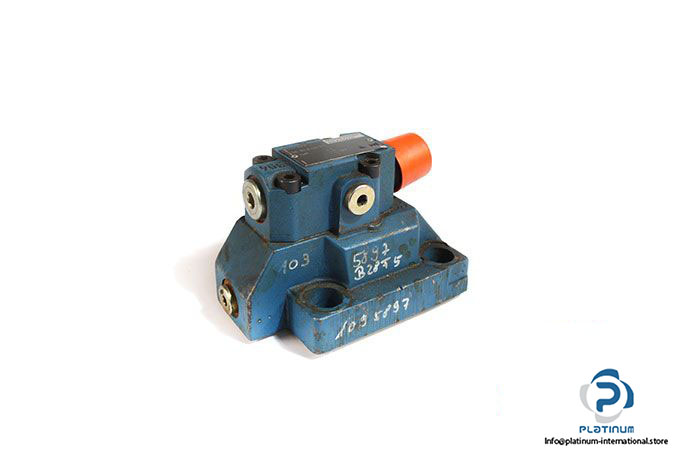

Rexroth R900594677 Pressure Relief Valve Pilot Operated

Manufacturer: Mannesmann Rexroth

Type: Pressure Relief Valve Pilot Operated

Model: DB 30-2-52/100

MNR: R900594677

Size: 30

Adjustment element for pressure adjustment: Sleeve with hexagon and protective cap

Pressure Setting: up to 100 bar

Ambient Temperature Range: –30 …. +80 ^oC

Maximum operating pressure at Port P :350 bar

Maximum operating pressure at Port T :315 bar

Maximum Flow Rate: 650 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 10 … 800 mm²/s

Connection: Sup-plate

Weight: 4.87 kg
