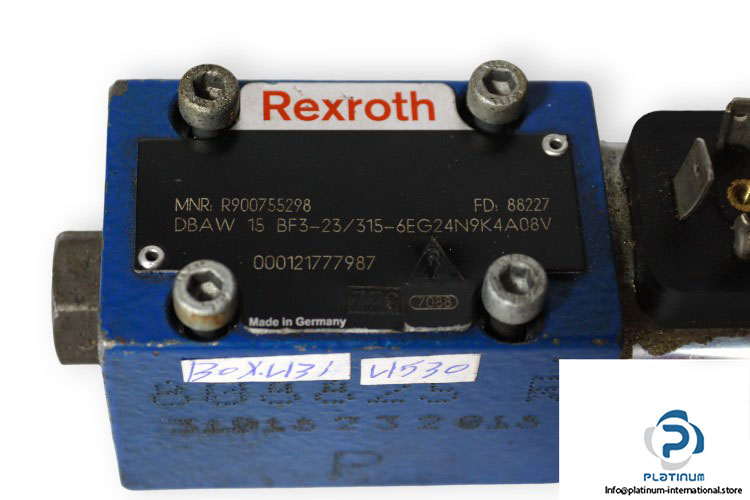

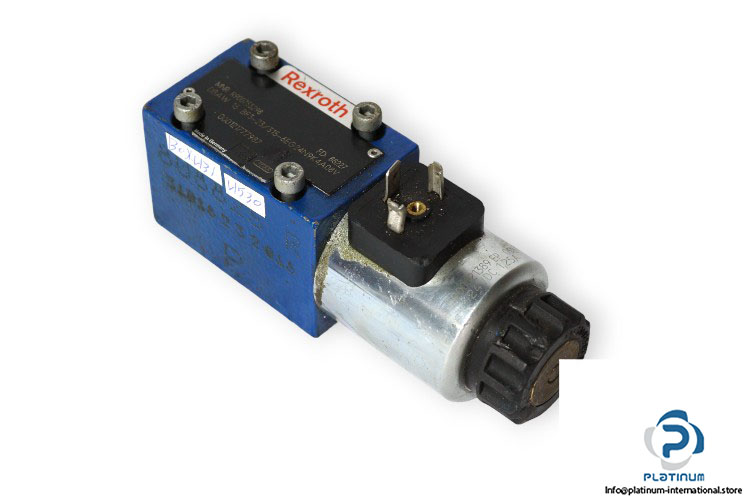

Rexroth R900755298 Pump Safety Block

Manufacturer: REXROTH
Type: Pump Safety Block
Model: DBAW 15 BF3-23/315-6EG24N9K4A08V
MNR: R900755298

Size: 15
Adjustment Element: Sleeve with Hexagon and Protective Cap
Pressure Setting: 315 bar
Ambient Temperature Range: –30 …. +50 oC
Maximum Operating Pressure at Port P :350 bar
Maximum Operating Pressure at Port T: 250 Bar
Maximum Flow Rate: 400 l/min
Hydraulic Fluid Temperature Range: –30 …. +80 oC
Viscosity Range: 10 … 800 mm2/s
Connection: Sup-plate

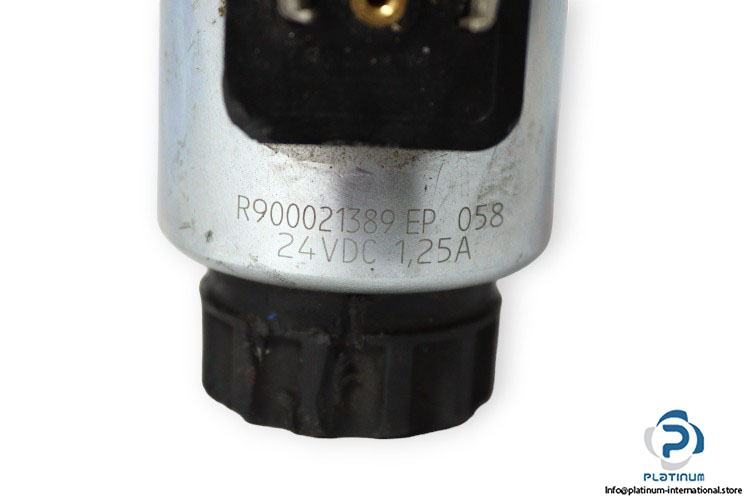

Attachment: REXROTH R900021389 EP 3810 SOLENOID COIL
Manufacturer: REXROTH
Type: Solenoid Coil
MNR: R900021389

Voltage: 24 VDC
Current: 1.25 A
