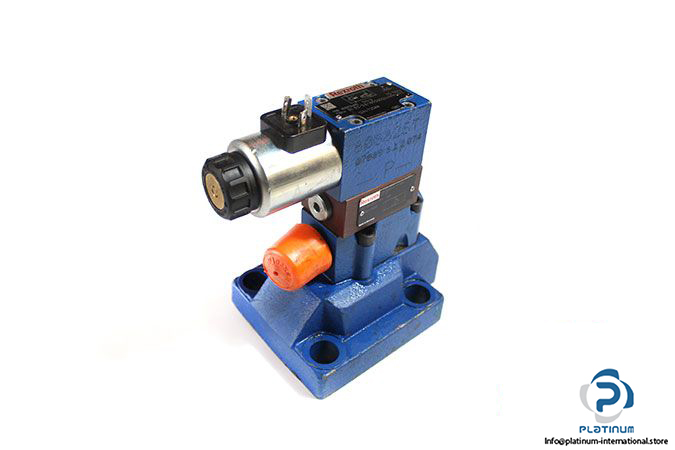

Rexroth R900934695 Pressure Relief Valve Pilot Operated
Manufacturer: Rexroth
Type: Pressure Relief Valve Pilot Operated

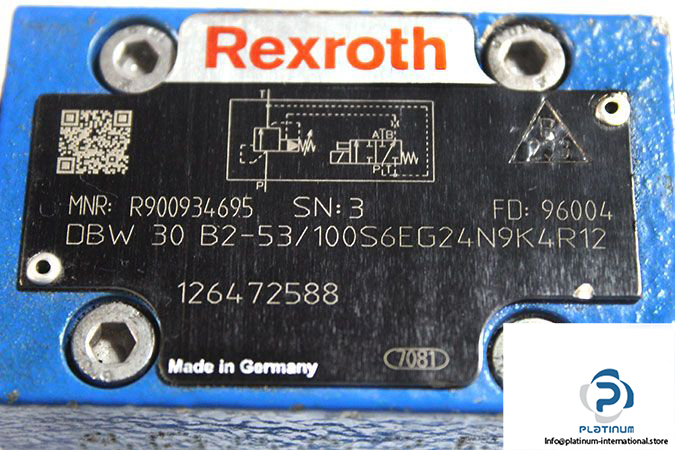

Model: DBW 30 B2-53/100S6EG24N9K4R12
MNR: R900934695
Size: 30
Adjustment Element for Pressure Adjustment: Sleeve with Hexagon and Protective Cap
Pressure Sitting: 100 bar
Ambient Temperature Range: –30 …. +50 oC
Maximum Operating Pressure at Ports P,X :350 bar
Maximum Operating Pressure at Ports T :315 bar
Maximum Backpressure at Ports T: 210 with DC solenoid
160 with AC solenoid
Maximum Flow Rate: 650 L/min
Hydraulic Fluid Temperature Range: –30 …. +80 oC
Viscosity Range: 10 … 800 mm2/s
Connection: Sup-plate

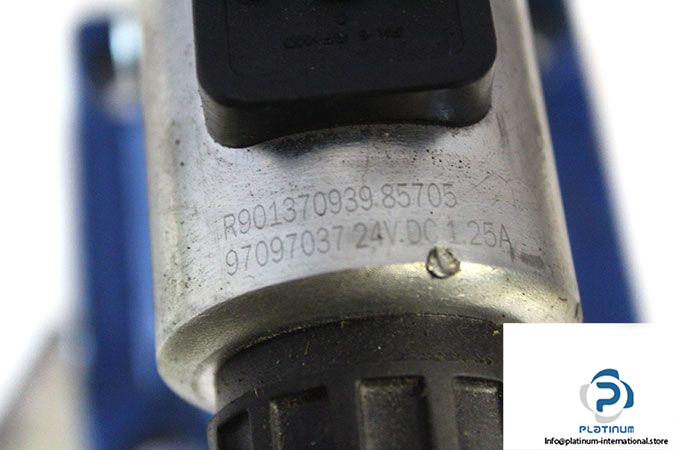

Attachment: REXROTH R901370939 85705 SOLENOID COIL
Manufacturer: Rexroth
Type: Solenoid Coil
MNR: R901370939
Current:1.25 A
Voltage: 24 VDC

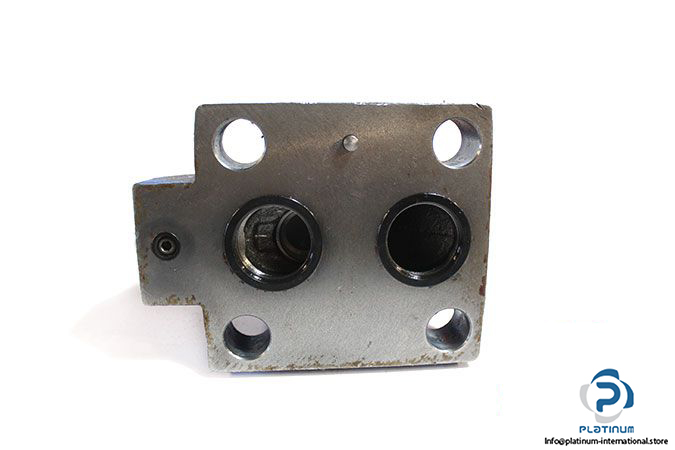

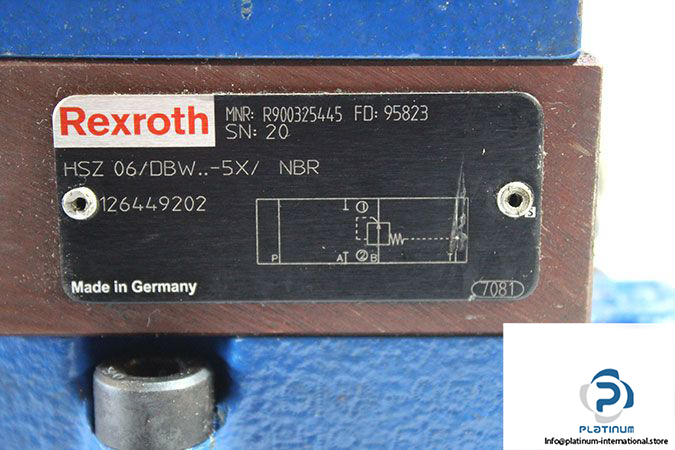

Attachment: REXROTH R900325445 SANDWICH PLATE
Manufacturer: Rexroth
Type: Sandwich plate
Model: HSZ 06/DBW..-5X/ NBR
MNR: R900325445
Weight: 6.89kg
