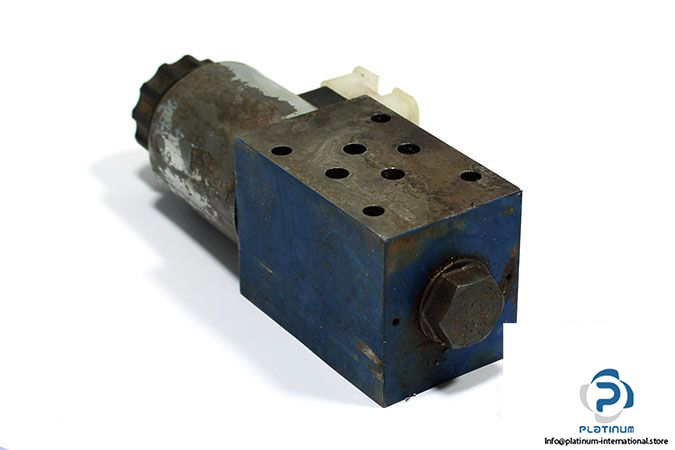

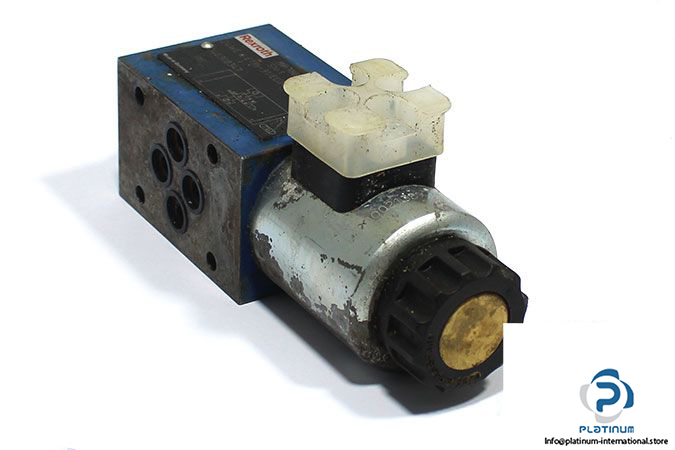

Rexroth R900942034 Directional Spool Valve

Manufacturer: Rexroth

Type: Directional Spool Valve

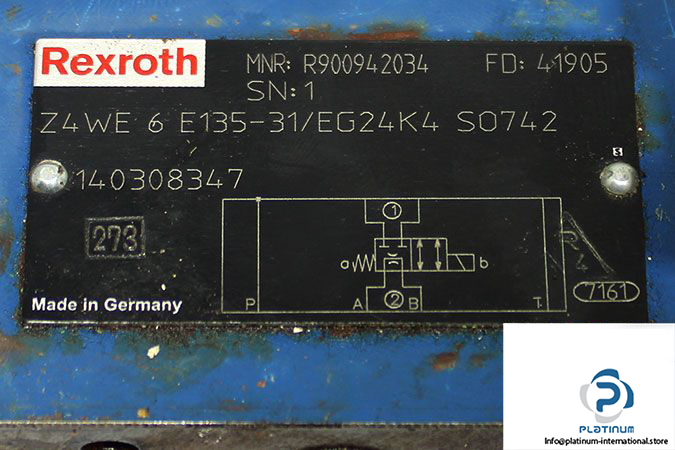

Model: Z4WE6E135-31/EG24K4S0742

MNR: R900942034

Size: 6

Ambient Temperature Range: –30 …. +50 ^oC

Maximum Operating Pressure Ports P, A, B: 315 bar

Maximum Operating Pressure Port T: 210 bar

Maximum Flow Rate: 50 l/min

Hydraulic Fluid Temperature Range: –30 …. +80 ^oC

Viscosity Range: 2.8 … 500 mm²/s

Voltage: 24 VDC

Current: 1.25 A

Connection: Sup-Plate

Weight: 1.52 kg
