Rexroth R901269277 Float Switch
New
In stock1 unitReady to ship
Float Switch
Industrial Rexroth float switch for hydraulic fluid level monitoring with dual switching outputs, 30 VDC supply, M12 connector, and switching points at 600 mm and 400 mm.30VDCAbzmsConnectorDualFloatFluidHydraulicIndustrialLevelM12monitoringOutputRexrothSenSensorSwitchSystemTank
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

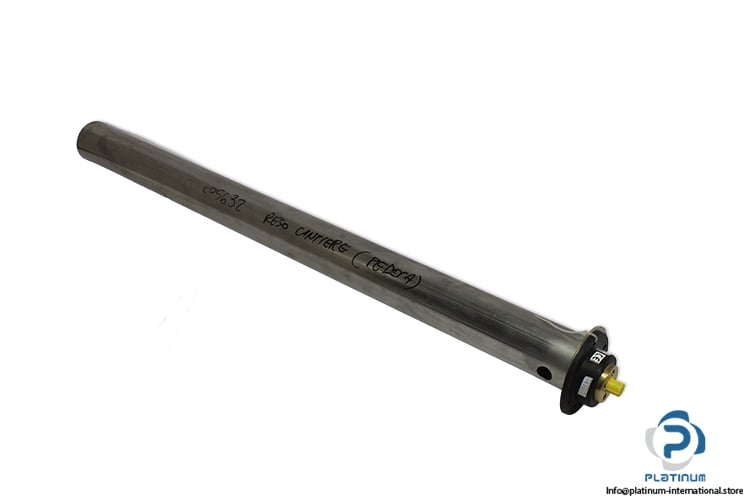

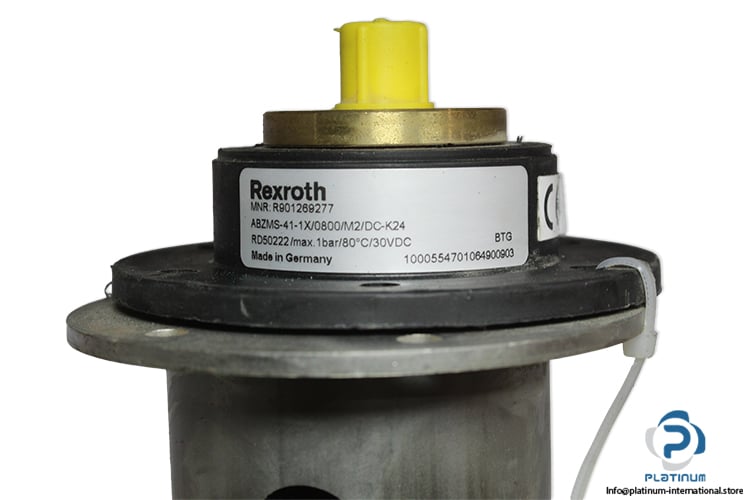

Rexroth ABZMS-41-1X/0800/M2/DC-K24 Float Switch
The Rexroth ABZMS-41-1X/0800/M2/DC-K24 float switch is designed for reliable liquid level monitoring in hydraulic systems and industrial fluid reservoirs. The device operates with a float mechanism that activates switching contacts when the fluid reaches defined levels, enabling accurate level control and protection of hydraulic equipment.
Manufacturer: Rexroth
Type: Float Switch
Model: ABZMS-41-1X/0800/M2/DC-K24
MNR: R901269277
Code: 1000554701064900903 / RD50222
Hydraulic Fluid Compatibility:
HEES
HEPG
HETG
HFA-E
HFC
HFD-R
HFD-U
HLP
| Operating Pressure, Max. | 1.0 bar |
| Output Signal | 2 Switching Outputs |
| Supply Voltage | 30 VDC |
| Electrical Connector | Connector, 4-Pole, M12 x 1, Coding A |
| Indicator | Yes |
| Electric Connection Description | Connector, 4-Pole, M12 x 1, Coding A According To EN 61076-2-101 |
| Maximum Temperature | 80 °C |
| Float Switch Function | Float Switch Switching Point For Level |
| Operation Principle | Float Switches Are Switching Devices Operated By A Float Moved By Fluid |
| Switching Contacts | Two Switching Contacts |
| Switching Points | 600 mm / 400 mm |
| Protection | Surge Protection |
