Rexroth R902493364 Axial Piston Fixed Displacement Drives

Manufacturer: Rexroth

Type: Axial Piston Fixed Displacement Drive

Model: A10FZG8/10W-VSC64N000

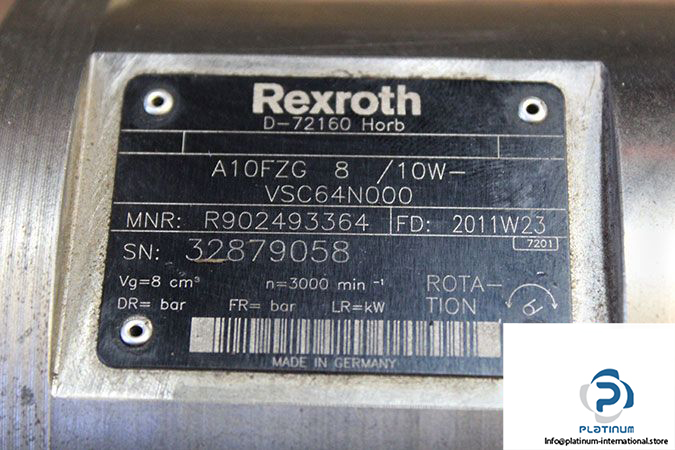

MNR: R902493364

Size: 8

Displacement: 8 cm³

Flow Rate at 3600 rpm: 29 l/min

Nominal Pressure: 315 bar

Max. Pressure: 350 bar

Max Speed: 3600 rpm

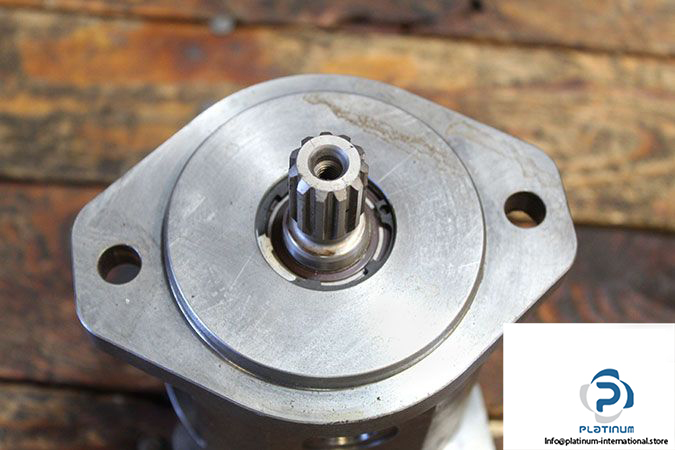

Shaft Diameter: 18 mm

No. of Teeth: 11

Input Power at 350 bar, 3600 rpm: 15.3 kW

Torque at 350 bar, 3600 rpm: 40.5 Nm

Moment of Inertia: 0,0006 kgm²

Viscosity Range: 16 …. 36 mm²/s

Weight: 6.7 Kg
