Rexroth R911224062 Permanent Magnet Motor

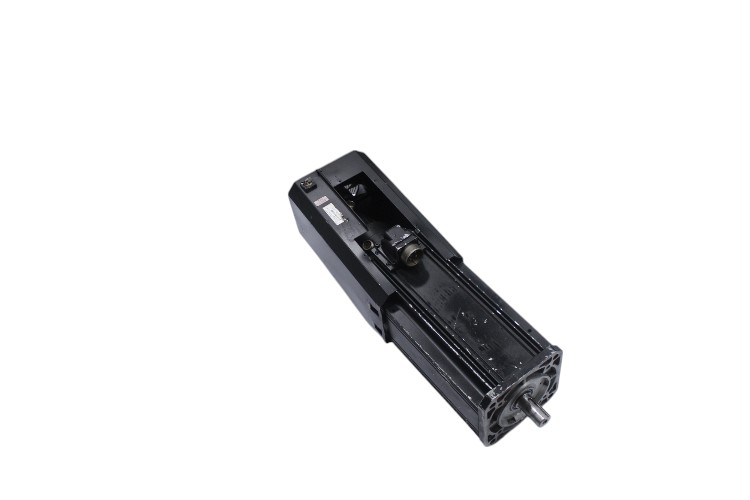

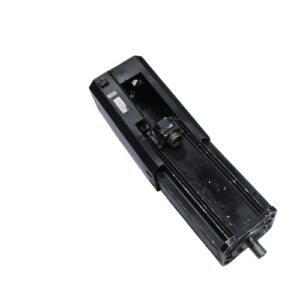

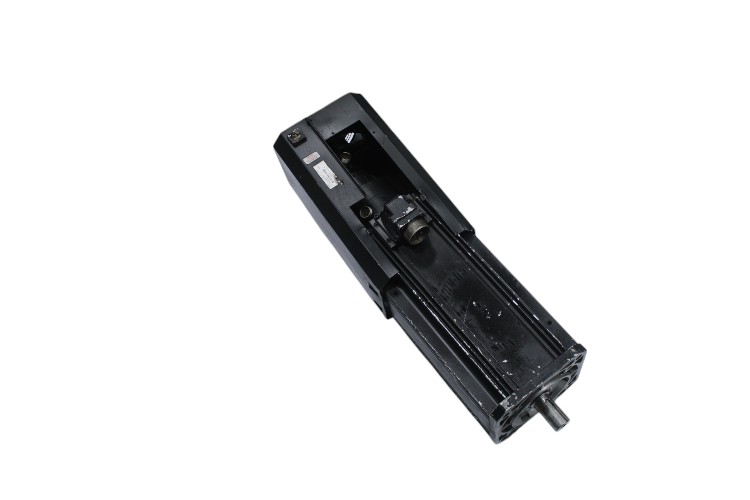

Rexroth MAC115D-1-ES-4-C/130-A-0/WI520LV/S001 Permanent Magnet Motor

The Rexroth MAC115D-1-ES-4-C/130-A-0/WI520LV/S001 Permanent Magnet Motor is a high-performance industrial motor designed for demanding applications requiring precision, efficiency, and reliability. Featuring both natural convection and surface cooling, this motor ensures optimal thermal management while delivering high torque and consistent operation. It is built with a robust design, high protection class, and is equipped with the Rexroth LEM-AB112X141 Cooling Fan Unit for enhanced cooling performance.

• Manufacturer: Rexroth
• Type: Permanent Magnet Motor
• Model: MAC115D-1-ES-4-C/130-A-0/WI520LV/S001
• MRN: R911224062

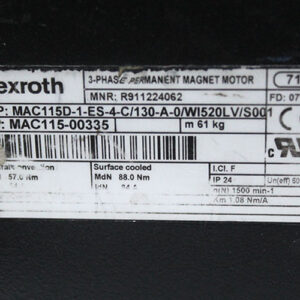

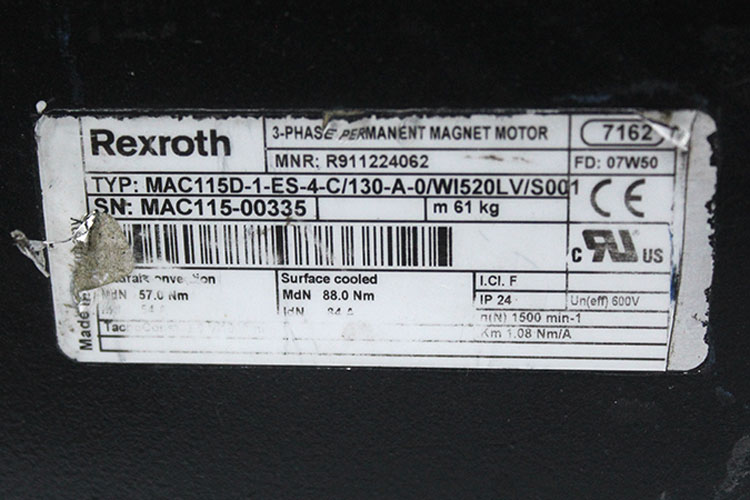

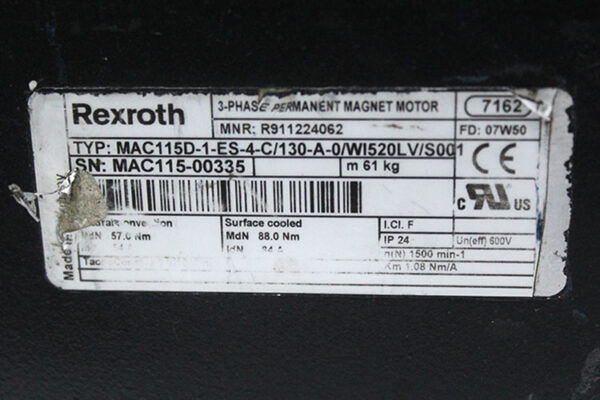

Technical Specifications

• Cooling Type: Natural Convection / Surface Cooled
• Rated Current (Natural Convection): 54 A
• Rated Torque (Natural Convection): 57 Nm
• Rated Current (Surface Cooled): 84 A
• Rated Torque (Surface Cooled): 88 Nm
• Rated Voltage: 600 V
• Max. Speed: 1500 RPM
• Torque Constant: 1.08 Nm/A
• Thermal Class: F
• Protection Class: IP24

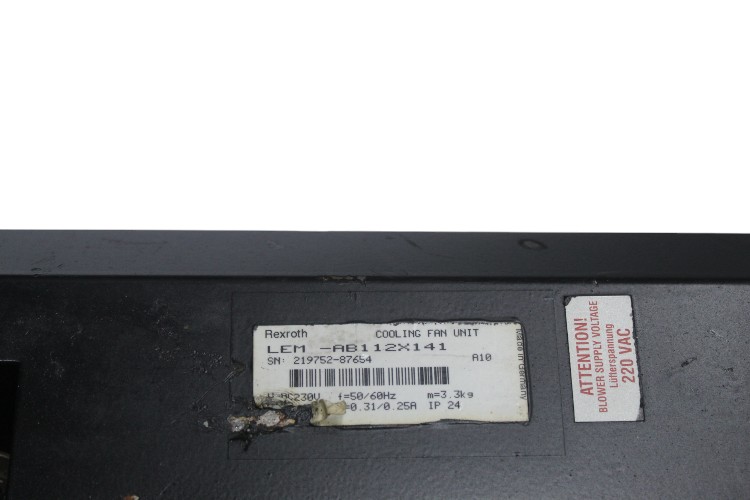

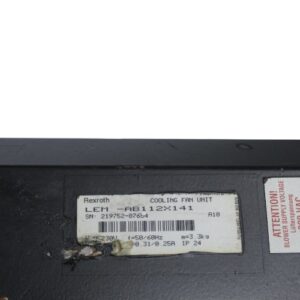

Cooling Fan Unit – Rexroth LEM-AB112X141

• Rated Current: 0.31 / 0.25 A
• Rated Voltage: 230 VAC
• Frequency: 50/60 Hz
• Protection Class: IP24
