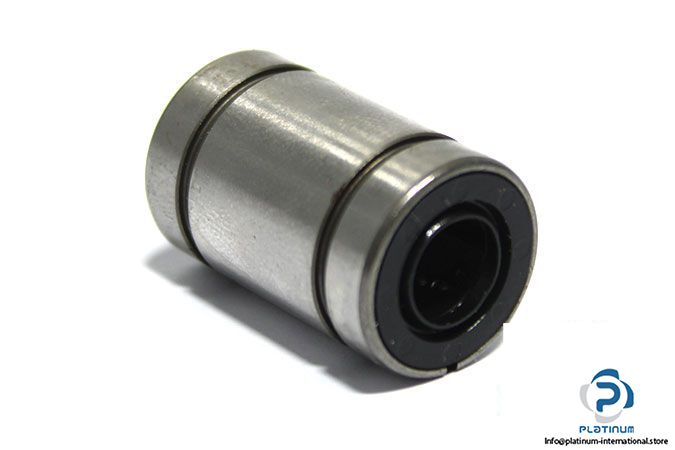

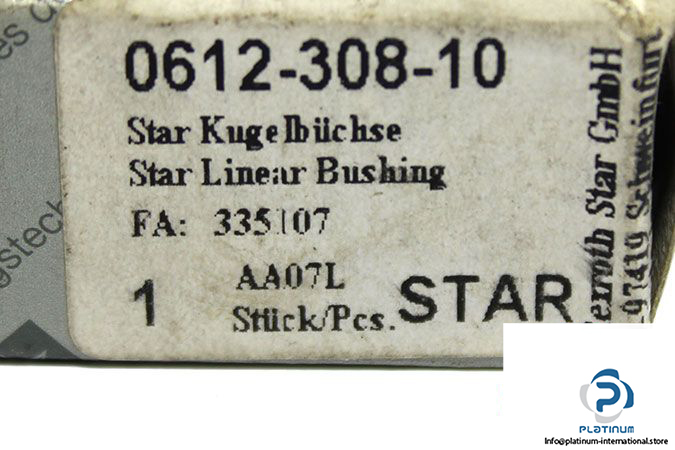

Rexroth Star 0612-308-10 Standard Linear Bushing

Manufacturer: REXROTH STAR

Type: Standard Linear Bushing

MNR: 061230810

Shaft Diameter d: 8 mm

Design Type: Adjustable

Rows of balls: 4

Friction Force F_R: 0.5 N

Breakaway Force: 1 N

Maximum Acceleration Travel a_max: 100 m/s²

Max. Permissible Speed v_max: 2.5 m/s

Dynamic Load Capacity C: 320 N

Static Load Capacity C₀: 240 N

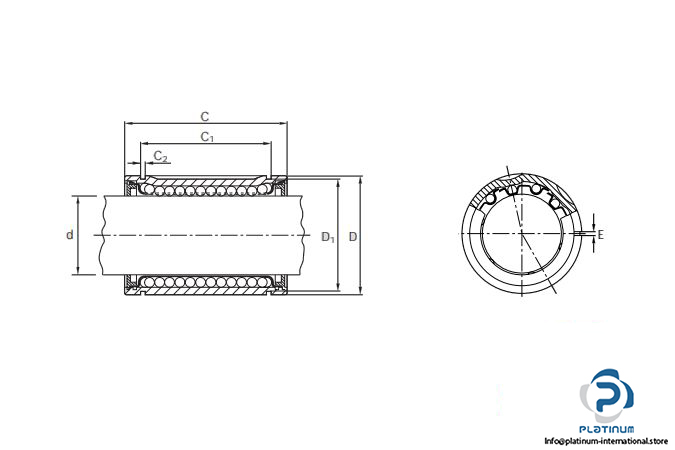

Dimensions:

D: 16 mm

C: 25 mm

Operating temperature: up to 100 °C

Weight: 0.02 kg
