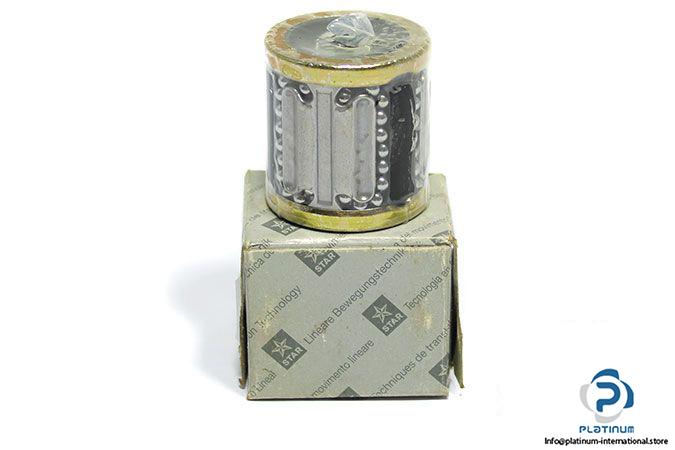

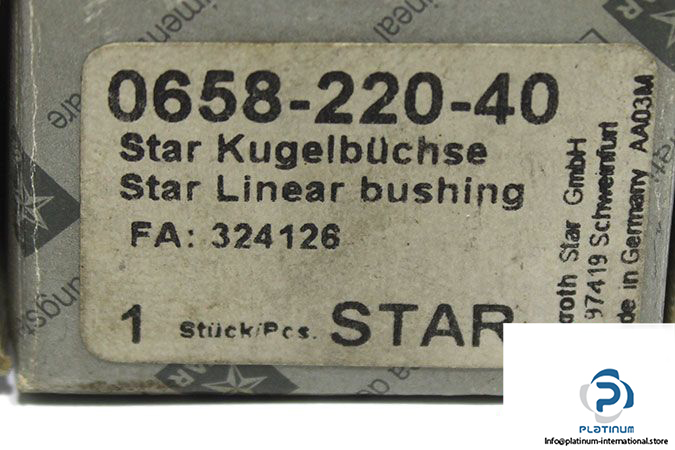

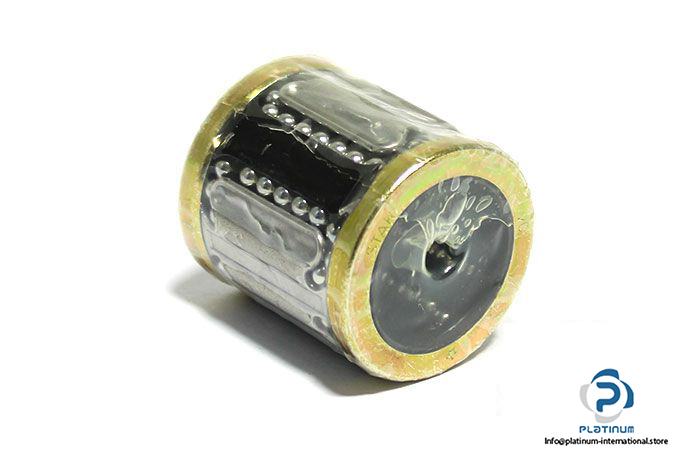

Rexroth Star 0658-220-40 Compact Linear Bushing

Manufacturer: Rexroth Star

Type: Compact Linear Bushing

MNR: 065822040

Shaft Diameter d: 20 mm

Design Type: Closed

Rows of balls: 6

Friction Force F_R: 1.5 N

Breakaway Force: 3 N

Maximum Acceleration Travel a_max: 150 m/s²

Max. Permissible Speed v_max: 5 m/s

Dynamic Load Capacity C: 1120 N

Static Load Capacity C₀: 610 N

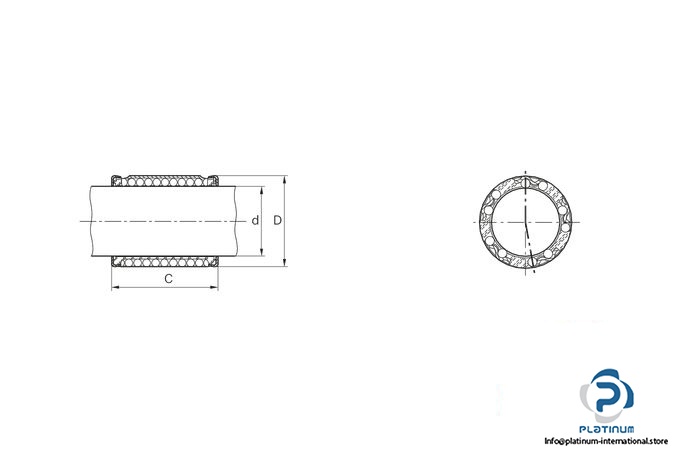

Dimensions:

D: 28 mm

C: 30 mm

Operating temperature: up to 100 °C

Weight: 0.03 kg
