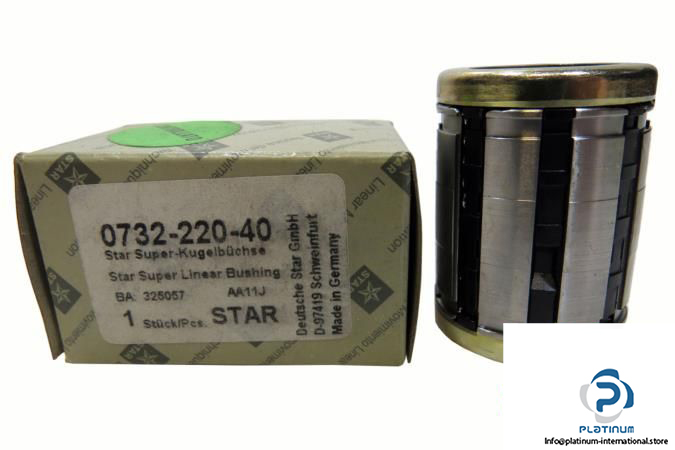

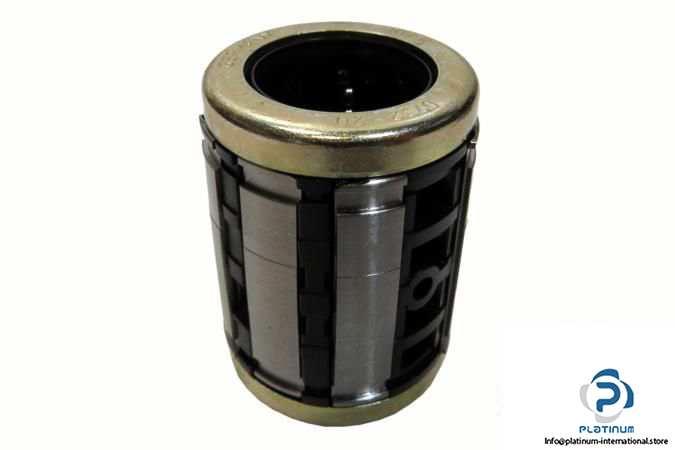

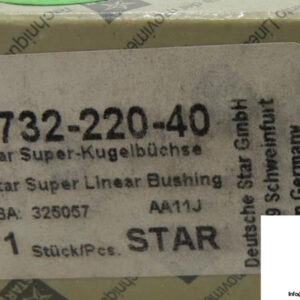

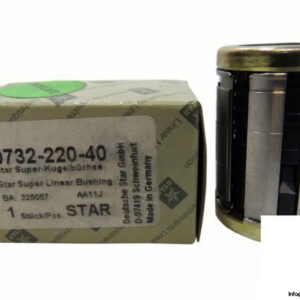

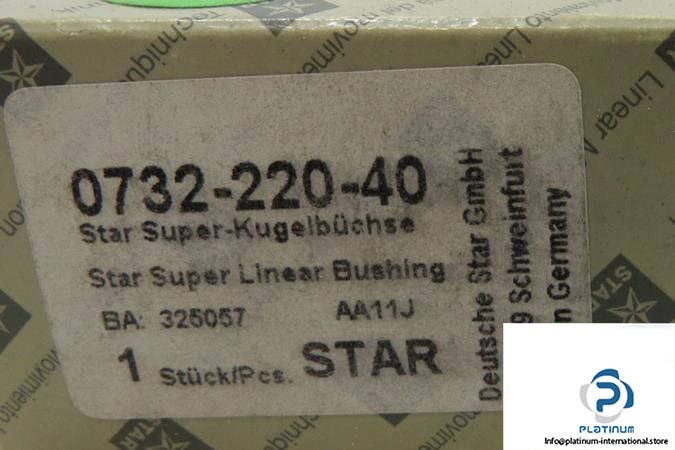

Rexroth Star 073222040 Super Linear Bushing H

Manufacturer: REXROTH STAR
Type: Super Linear Bushing KBH
MNR: R0732 220 40

Dimensions:
Shaft diameter d0: 20 mm
Rows of Balls: 7
Design Type: Closed
Maximum permissible linear speed vmax: 5 m/s
Max. acceleration amax: 150 m/s²
Breakaway force: 5 N
Dynamic Load rating C: 2520 N
Static Load rating C₀: 1880 N
Dimensions:
D: 32 mm
C: 45 mm
C1: 31.2 mm
D1: 30.5 mm
C2: 1.6 mm
Seals: With two integrated wiper seals
Permissible Ambient Temperature: –20 … +80 °C
