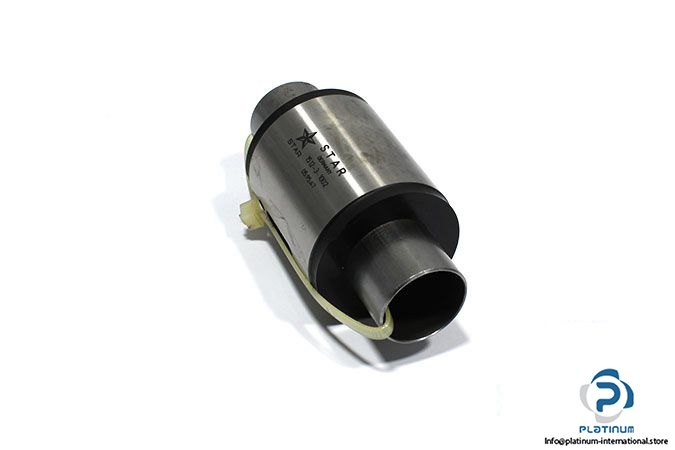

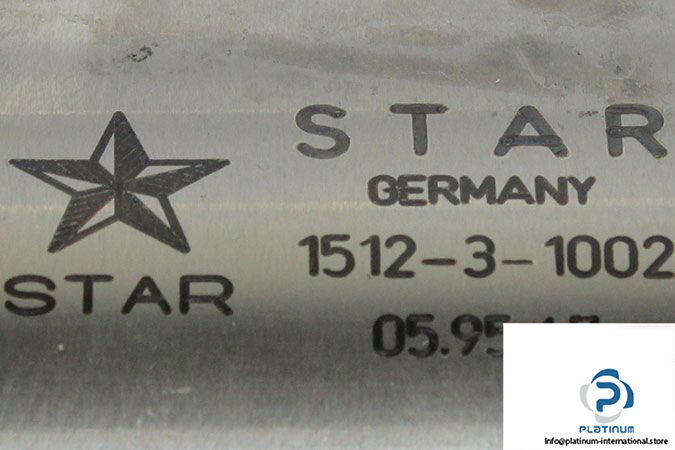

Rexroth Star 1512-3-1002 Cylindrical Single NUT ZEM-E-S

Manufacturer: REXROTH STAR

Type: Cylindrical Single Nut ZEM-E-S

MNR: 151231002

Size: 32 x 5 R x 3.5 – 4

Nominal Diameter d₀: 32 mm

Ball Diameter D_W: 3.5 mm

Number of ball track turns i: 4

Lead P: 5 mm

Direction of Lead: Right-Hand Thread

Dynamic Load Rating C: 21500 N

Static Load Rating C₀: 40000 N

Nut Rigidity R_nu: 610 N/µm

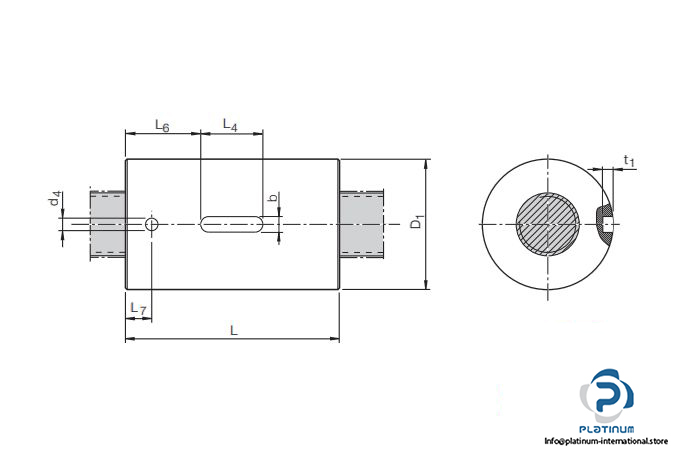

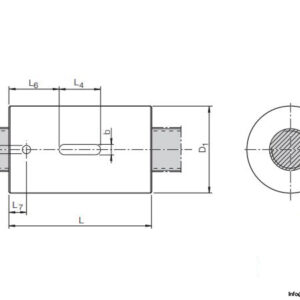

Dimensions:

D₁: 48 mm

L: 48 mm

Weight: 0.46 kg
