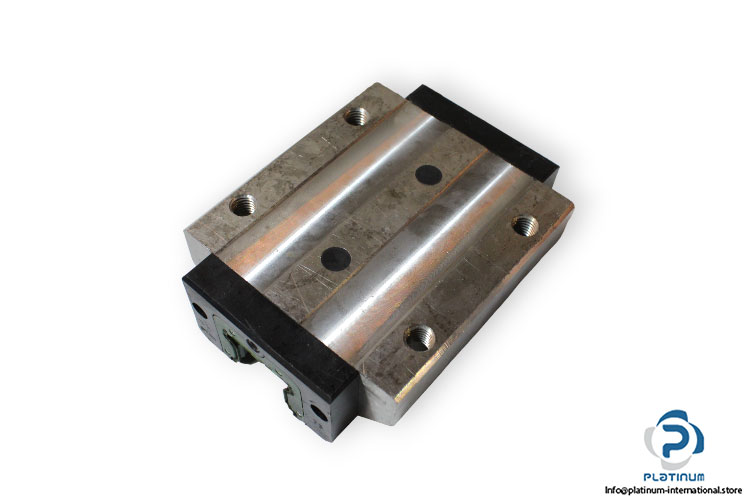

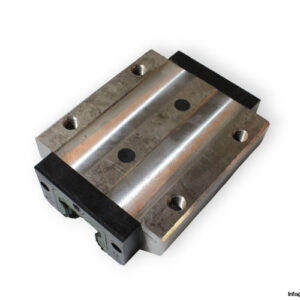

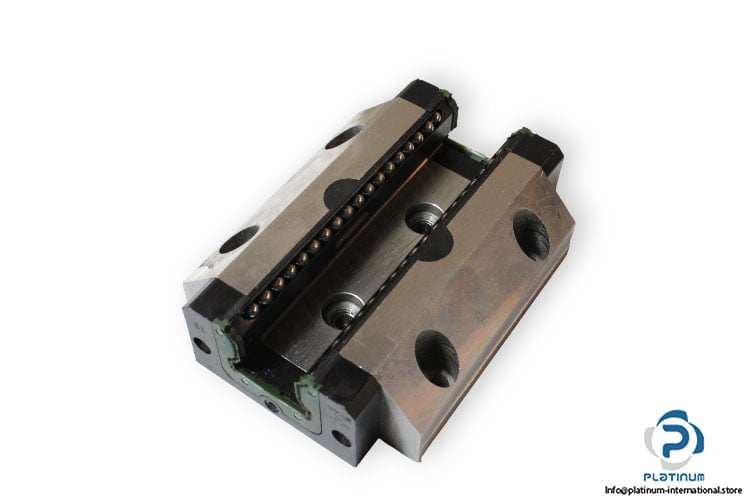

Rexroth Star 1653-394-10 Ball Runner Block FLS

Manufacturer: Rexroth Star
Type: Ball Runner Block FLS

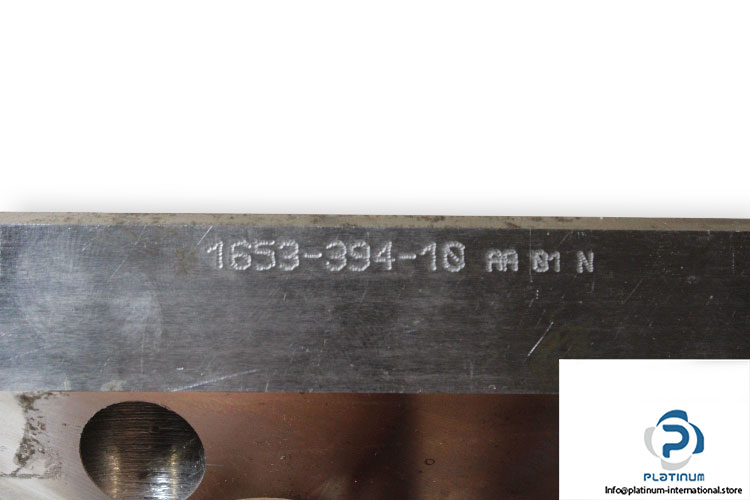

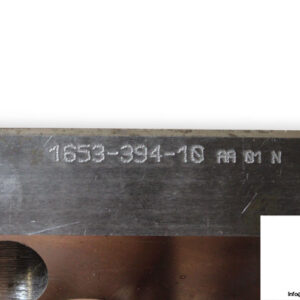

MNR: R165339410

Size: 35 mm
Mechanical Format: KWC
Design: FLS – Flanged, long, standard height
Material (profiled rail systems): Carbon steel
Maximum Acceleration Travel a_max: 500 m/s²
Maximum Permissible Speed v_max: 5 m/s
Dynamic Load Capacity C: 55600 N
Static Load Capacity C0: 81000 N
Dynamic Torsional Moment Load Capacity M_t:  1200 Nm
Mt0: 1740 Nm
Dynamic longitudinal moment load capacity ML: 830 Nm
Static longitudinal moment load capacity ML0: 1215 Nm
Accuracy Class: N – Normal
Preload Class: C0

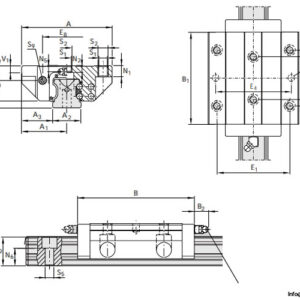

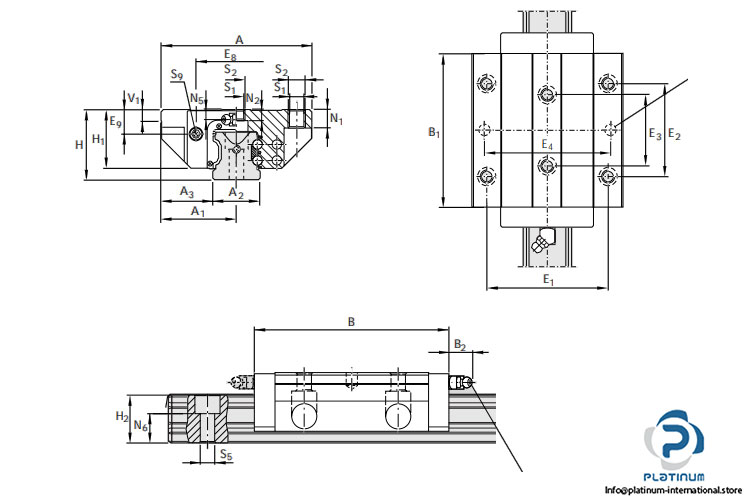

Dimensions
Width (A): 100 mm
Length (B): 133 mm
Height of system(H): 48 mm
Height of block (H₁): 40 mm
E1: 82 mm
E2: 62 mm
Admissible Operating Temperature: -10 °C … +80 °C
