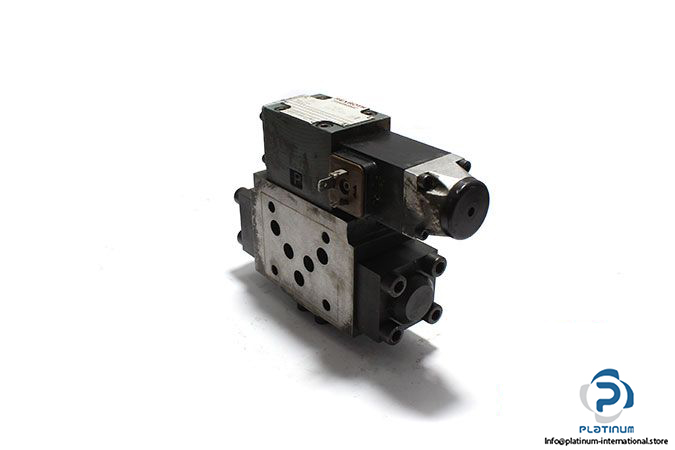

Rexroth Z4WEH 10 E63-30/6A G24N9ETZ5L2 Pilot Operated Directional Valve

REXROTH HYDRONORMA Z4WEH10E63306AG24N9ETZ5L2 DIRECTIONAL CONTROL VALVE

The Rexroth Hydronorma Z4WEH 10 E63-30/6A G24N9ETZ5L2 is a high-performance pilot-operated directional control valve engineered for precision fluid control in demanding hydraulic systems. Combined with a Rexroth 4 WE 6 Y52/AG24N9Z5L2 solenoid-operated directional valve, this unit provides reliable and responsive operation under high pressure.

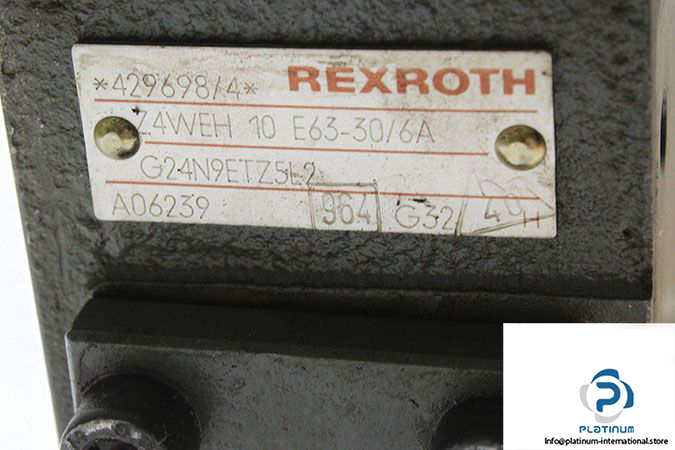

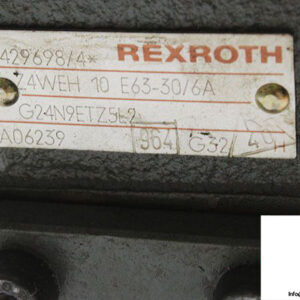

Manufacturer: REXROTH HYDRONORMA
Type: Pilot Operated Directional Control Valve
Model: Z4WEH 10 E63-30/6A G24N9ETZ5L2
Part No.: 405501/8

Main Valve Specifications

• Fluid: Oil
• Nominal Size: NG10
• Type of Actuation: Electro-Hydraulic
• Max. Working Pressure (Port P, A, B): 315 bar
• Max. Pressure (Port T): 210 bar
• Max. Flow Rate: 160 l/min
• Hydraulic Connection: Sub-Plate
• Fluid Temperature Range: -30 / 80 °C

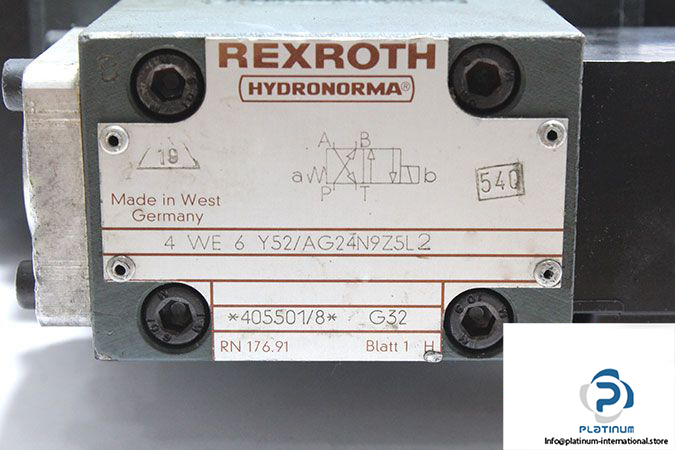

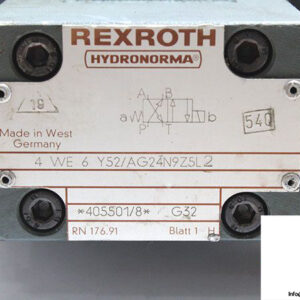

Attached Solenoid Valve Specifications

• Manufacturer: REXROTH
• Type: Solenoid Operated Directional Valve
• Model: 4 WE 6 Y52/AG24N9Z5L2
• Fluid: Oil
• Nominal Size: NG6
• Type of Actuation: Electrically
• Max. Working Pressure (Port P, A, B): 320 bar
• Max. Pressure (Port T): 210 bar
• Nominal Flow Rate: 80 l/min
• Hydraulic Connection: Sub-Plate
• Nominal Voltage per Coil: 24 V DC
