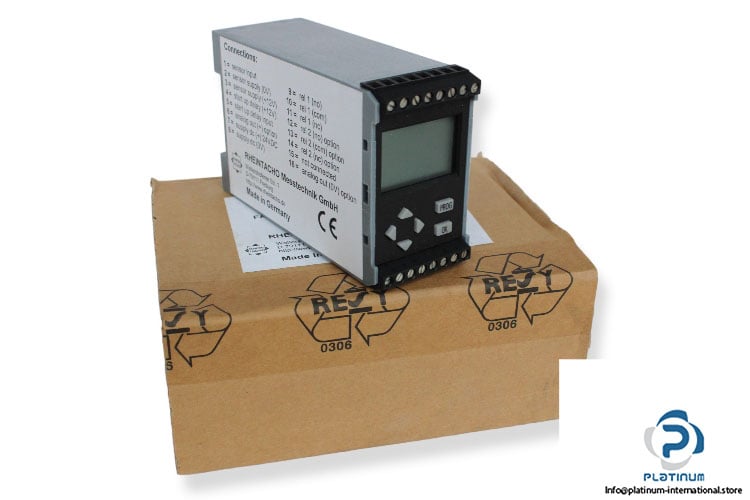

Rheintacho Messtechnik FA-144705 Rotational Speed Monitor

Manufacturer: Rheintacho Messtechnik

Type: Rotational speed monitor

Model: FA-144705



Power supply: 18 … 36 V DC

Current consumption: < 160 mA at 24 V DC

Signal input: NPN, PNP or Sinus signal

Frequency range: 0.01 …20,000 Hz

Relay outputs:

Contact: 2 Relays Change-over contacts

Analog output:

Current: 0 … 20 mA or 4 … 20 mA

Sensor supply output:

Voltage: 12 V DC

Output current (max): 60 mA

Protection class: IP20

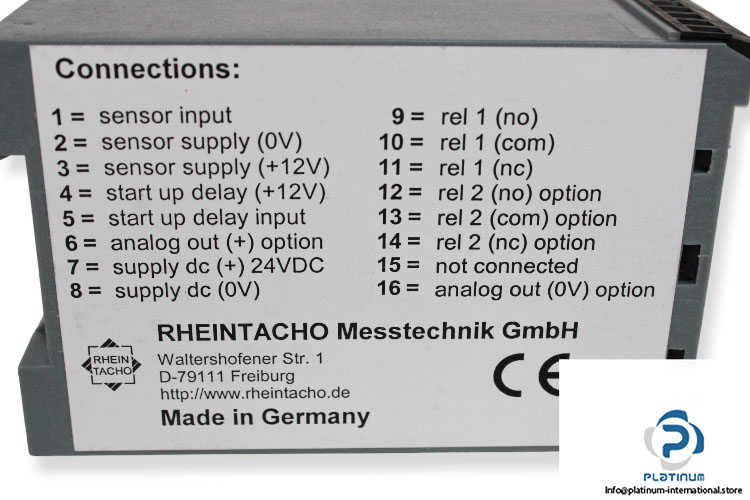

Terminals: 16 screw clamps

Working temperature: -25 … +70°C

Dimension: 43 x 70 x 114 mm
