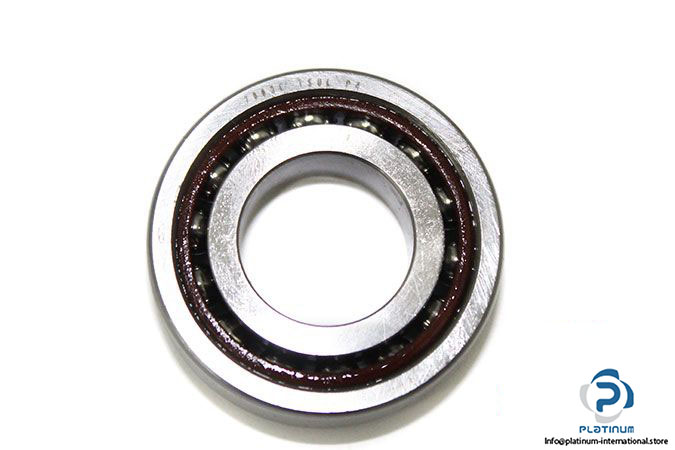

RHP 7003CTDULP4V Angular Contact Ball Bearing

Manufacturer: RHP

Type: Single row Angular Contact Ball Bearing

Model: ‎7003 C TDULP4V‎

Bore Diameter: 17 mm

Outer Diameter: 35 mm

Thickness: 10 mm

Chamfer r_min: 0.3 mm

Contact Angle: 15°

Basic load ratings:

Dynamic C_r: 6600 N

Static C_0r: 3800 N

Factor f₀: 14.5

Limiting speeds: Grease 32000, Oil 43000

Cage material: Phenolic resin

Precision grade(ISO Class): P4; 4

Seal material: Open (No seal)

Weight: 0.04 kg
