Rietschle SMV 500 (03) Side Channel Vacuum Pump
Used
In stock1 unitReady to ship
Side Channel Vacuum Pump
Rietschle SMV500 (03) vacuum pump with 470 m³/h capacity, 200 mbar ultimate pressure, 15 kW power rating, and S1 continuous-duty operation, supplied with 160M/2B-21 AC motor.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

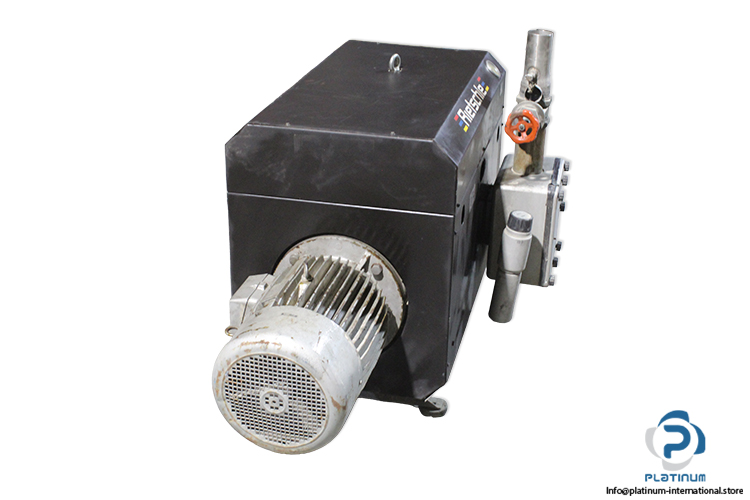

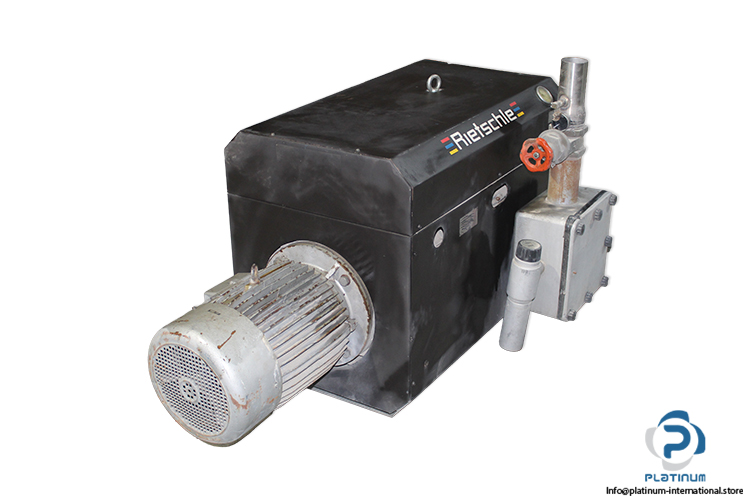

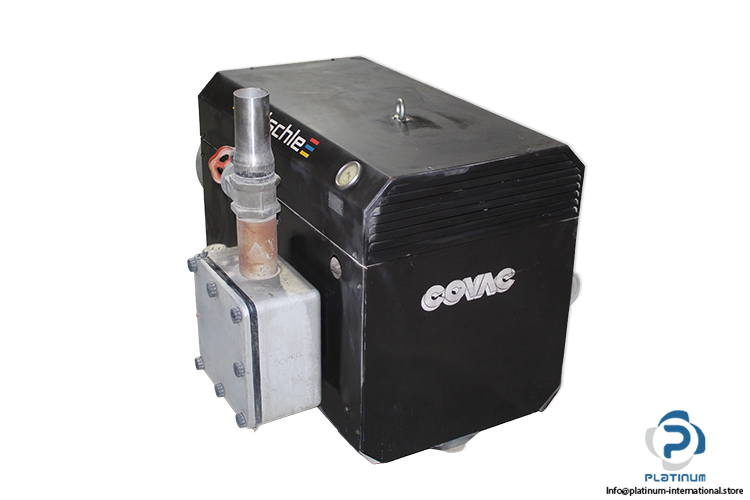

Rietschle SMV500 (03) Side Channel Vacuum Pump
The Rietschle SMV500 (03) side channel vacuum pump is engineered for continuous-duty industrial vacuum applications, delivering high airflow capacity and reliable performance under demanding operating conditions.

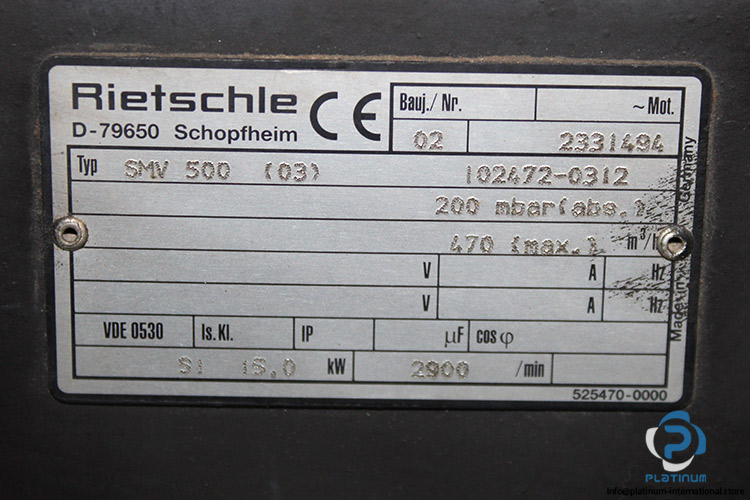

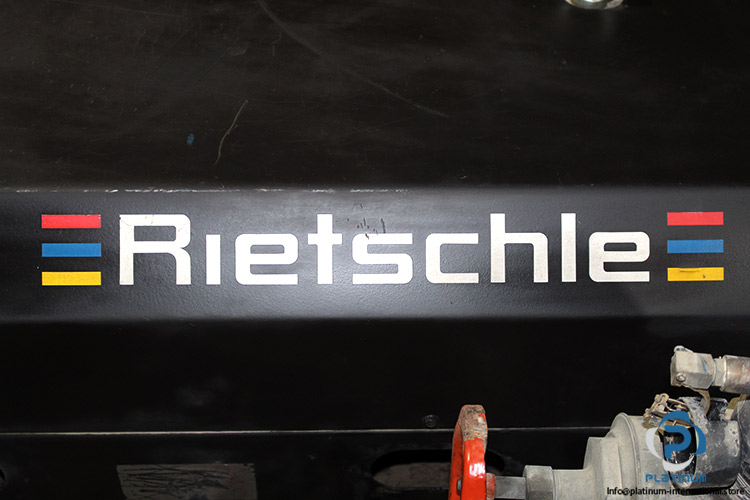

Manufacturer: Rietschle
Type: Side Channel Vacuum Pump
Model: SMV500 (03)
Order No.: 102472-0312
Motor No.: 2331494

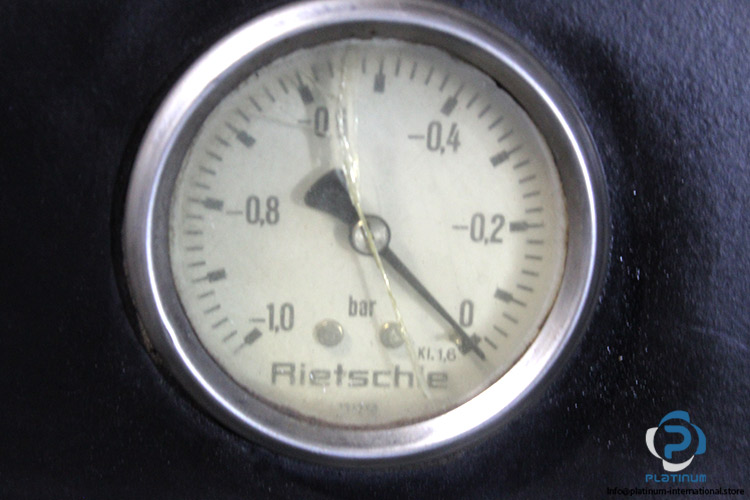

Vacuum Gauge:
Suitable for industrial vacuum systems, pneumatic conveying, drying processes, and centralized vacuum installations requiring continuous S1 operation.
| Ultimate Pressure | 200 mbar |
| Maximum Capacity | 470 m³/h |
| Rated Power | 15 kW |
| Rated Speed | 2900 rpm |
| Standard | VDE 0530 |
| Operating Mode | S1 |
| Scale Range | -1 to 0 bar |
| Accuracy Class | Kl. 1.6 |
| Attachment | 160M/2B-21 AC Motor |

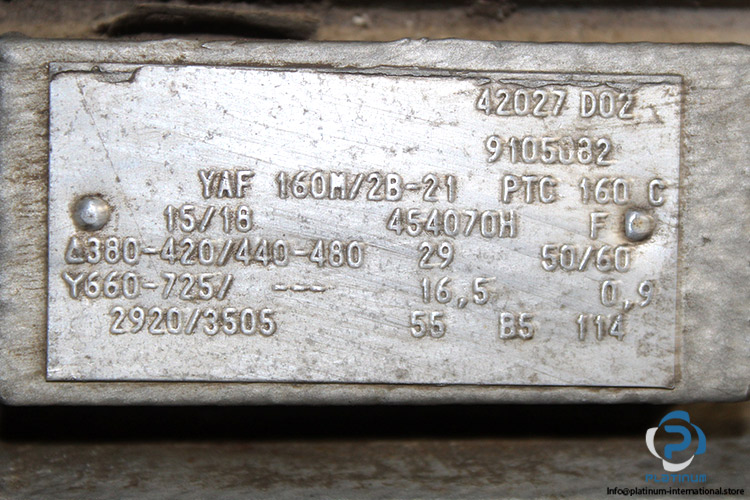

| Motor Model | 160M/2B-21 |
| Code | 42027 D02 |
| Serial No. | 9105082 |
| Power | 15 / 18 kW |
| Voltage (Delta) | 380“420 / 440“480 V AC |
| Voltage (Star) | 660“725 V |
| Current (Delta) | 29 A |
| Current (Star) | 16.5 A |
| Frequency | 50 / 60 Hz |
| Speed | 2920 / 3505 rpm |
| Power Factor (Cos) | 0.9 |
| Protection Class | IP55 |
| Insulation Class | F |
| PTC Thermistor | 160°C |
| Mounting | B5 |
| Frame Size | 160 |
