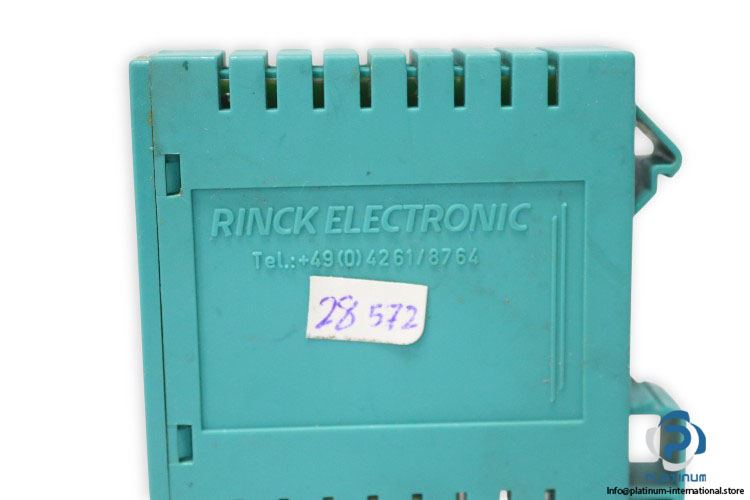

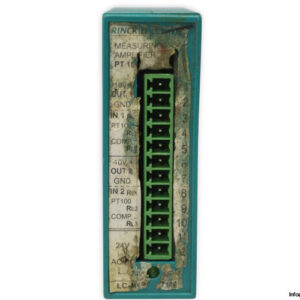

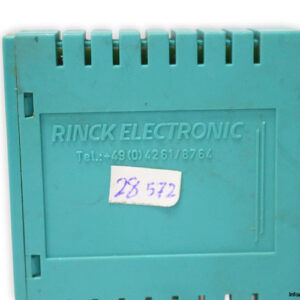

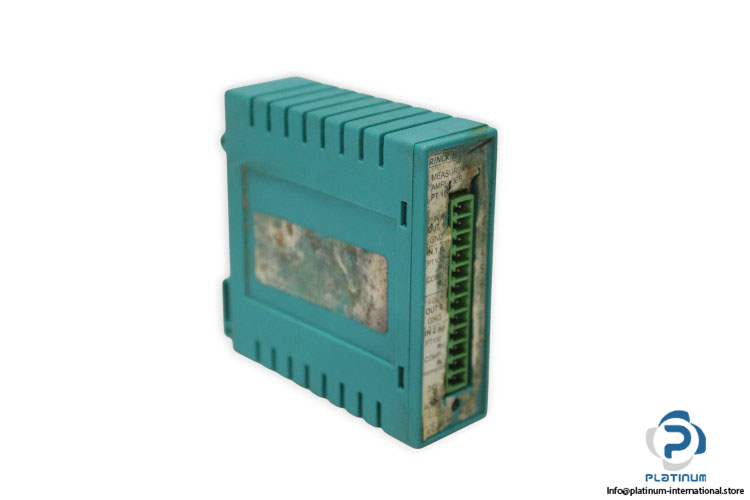

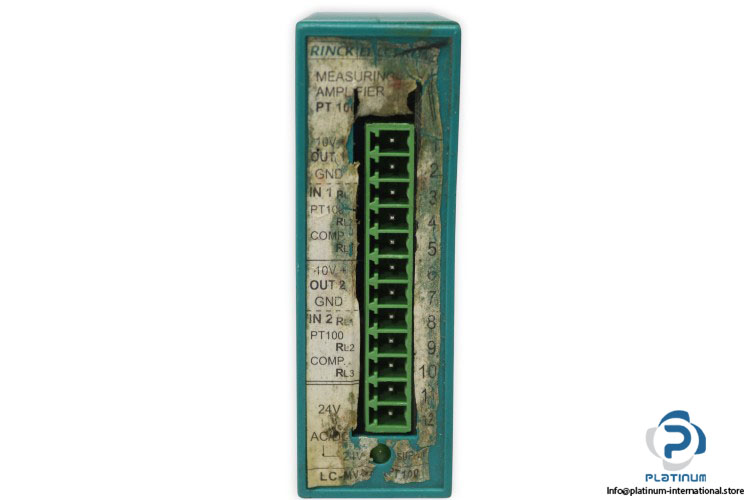

RINCK ELECTRONIC MV-PT 100 MEASURING AMPLIFIER
The Rinck Electronic MVPT100 is a high-precision measuring amplifier designed for PT100 sensors, delivering reliable conversion to standardized output signals. Built for industrial environments, it ensures accurate monitoring and control across a wide range of applications.
Manufacturer: RINCK ELECTRONIC
Type: Measuring Amplifier
Model: MV-PT100
| Function | Converter for PT100 Sensor |
| Supply Voltage | 24 V AC/DC |
| Power Current Max. | 70 mA |
| Input Sensor | PT100 RTD |
| Output Voltage Pin 1-2 | 0 / 10 V DC (2 / 10 V DC) |
| Output Current Max. | 20 mA |
| Output Signal Pin 2-3 | 0 / 20 mA (4 / 20 mA) |
| Output Load Resistor Max. | 800 Ohm |
| Ambient Temperature | -10 / 50 °C |
| Dimensions | 72 x 24 x 94 mm |
