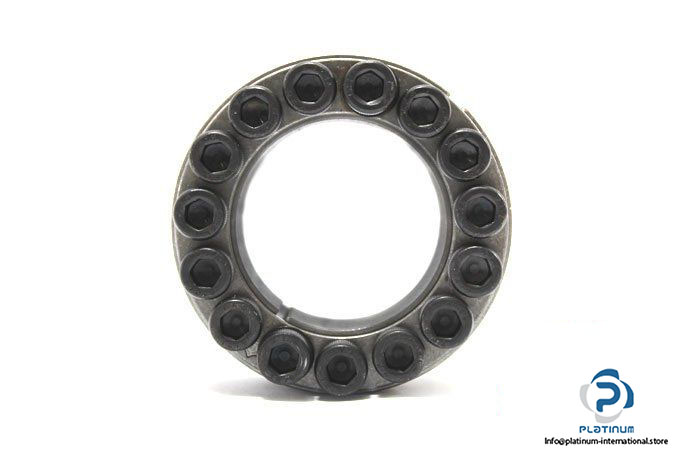

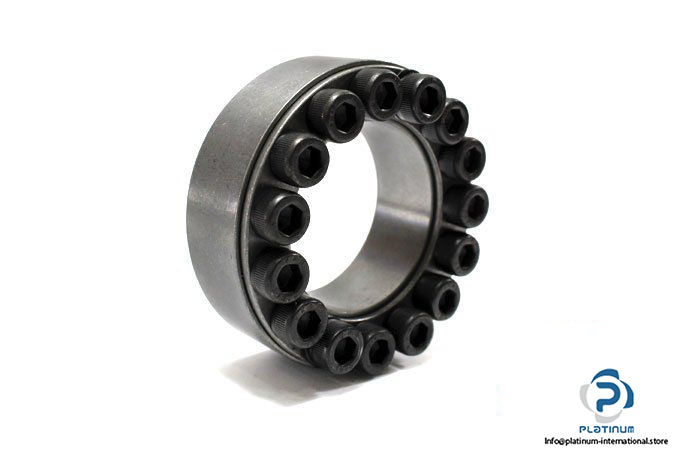

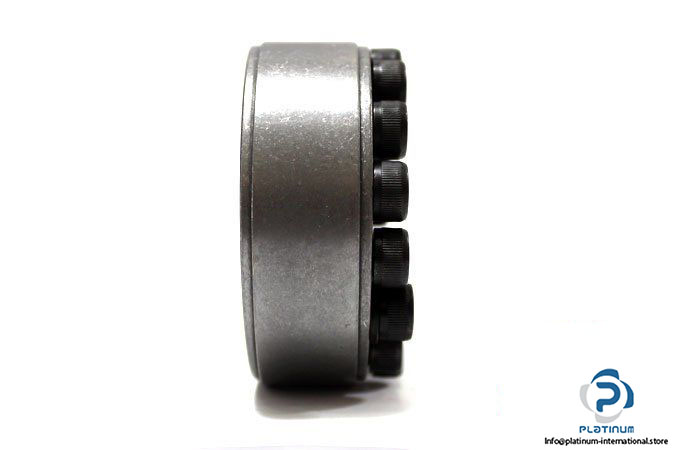

Ringfeder 40X65 RFN 7012 Locking Assembly

Manufacturer: RINGFEDER

Type: LOCKING ASSEMBLY

Model: 40X65 RFN 7012

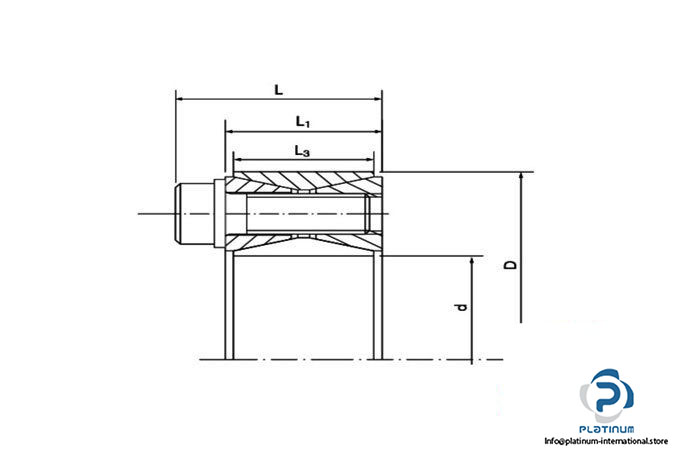

Inner diameter (d): 40 mm

Outer diameter (D): 65 mm

Overall length (L): 27.5 mm

Overall length, without screws (L1): 20 mm

Width of ring (L3): 17 mm

Max. Tightened torque of the clamping screws (TA): 17 Nm

Transmissible torque (given TA): 1154 Nm

Transmissible torque max.: 1404 Nm

Surface pressure on shaft (given TA): 225 N/mm²

Surface pressure on hub (given TA): 139 N/mm²

Applications: chain wheels, Levers, pulleys, slip-on gear mechanisms, belt, drums, running, wheels, cable sheaves
