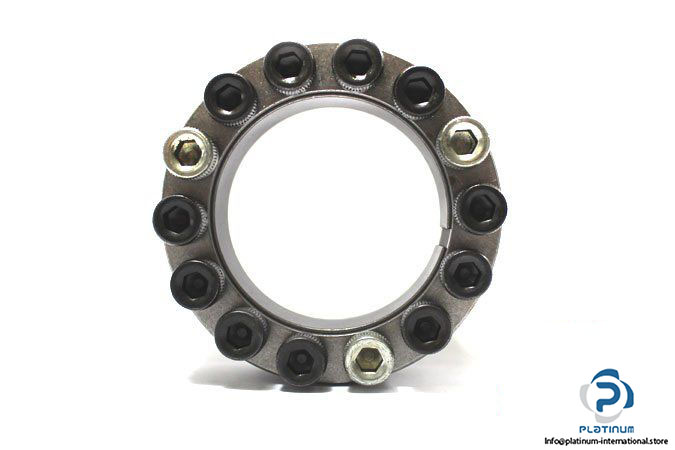

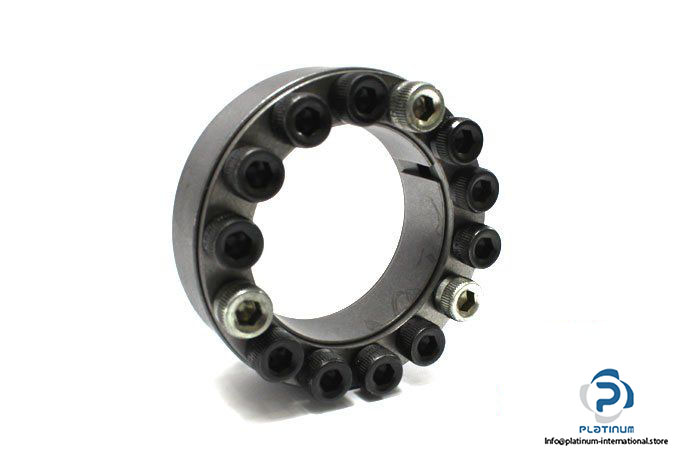

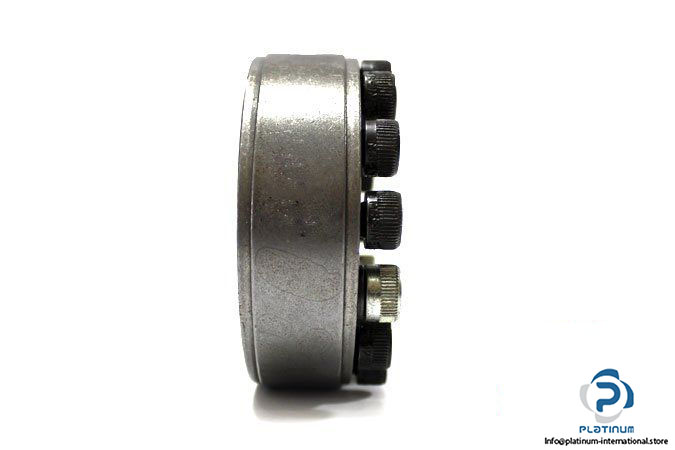

Ringfeder 60X90 RFN 7012 Locking Assembly

Manufacturer: RINGFEDER

Type: LOCKING ASSEMBLY, DYNANOBLOC

Model: 60X90 RFN 7012

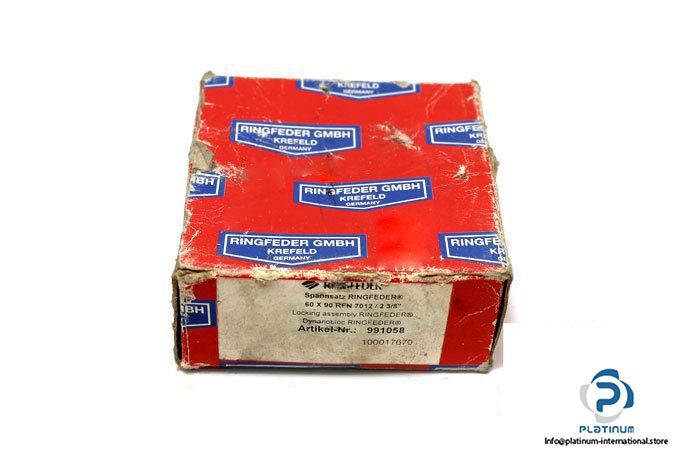

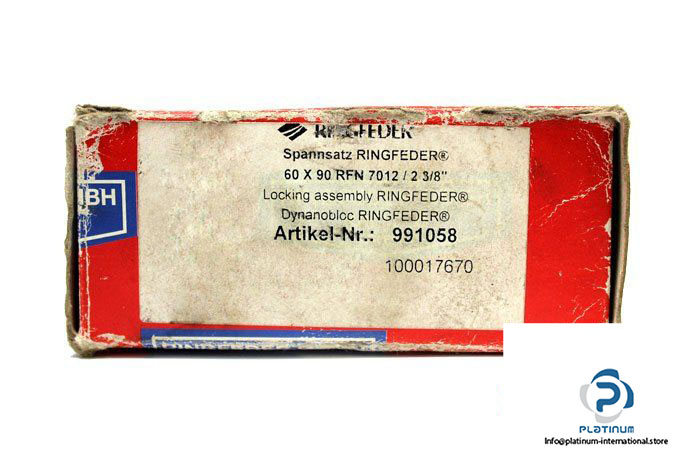

Article No.: 991058

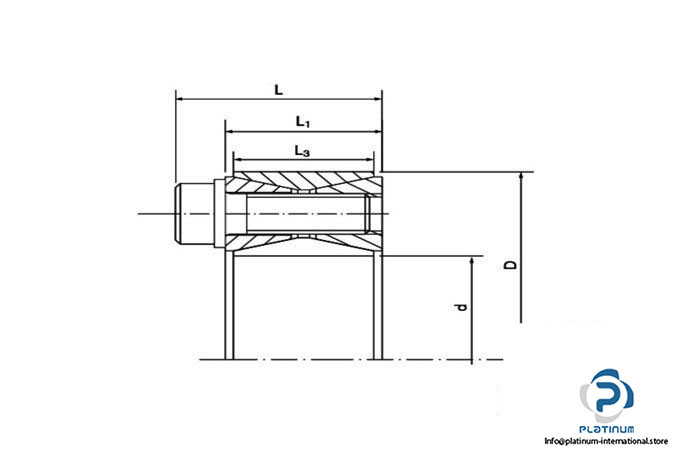

Inner diameter (d): 60 mm

Outer diameter (D): 90 mm

Overall length (L): 33.5 mm

Overall length, without screws (L1): 24 mm

Width of ring (L3): 20 mm

Max. Tightened torque of the clamping screws (TA): 35 Nm

Transmissible torque (given TA): 2460 Nm

Transmissible torque max.: 2880 Nm

Surface pressure on shaft (given TA): 181 N/mm²

Surface pressure on hub (given TA): 121 N/mm²

Applications: chain wheels, Levers, pulleys, slip-on gear mechanisms, belt, drums, running, wheels, cable sheaves
